Product Description

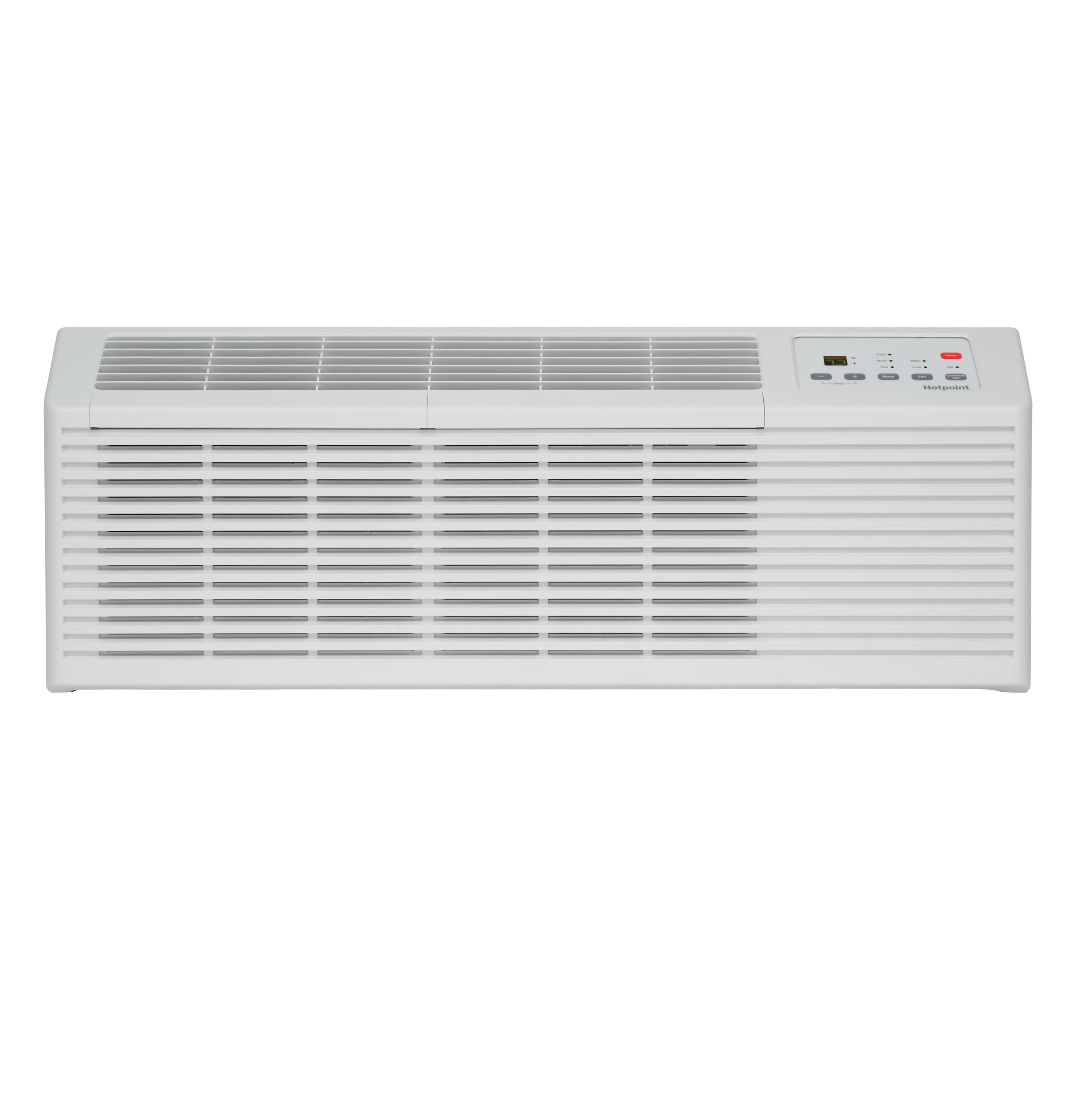

The Hotpoint AHHS09E3XXA PTAC Heat Pump Unit features electric heat backup, a 9,000 BTU capacity, and operates at 265V with 20 amps. This unit includes 2 fan speeds and 4 temperature-limiting options. It also features an auto-dimming display and slinger ring condensate removal. Additional features include a coverless control panel, automatic emergency heat, and freeze/frost & overheat protection.
- Features 2 fan speeds for customized comfort.
- Offers 4 temperature-limiting options for efficiency.
- Includes automatic emergency heat for consistent warmth.
Product Highlights
This PTAC unit provides efficient heating and cooling with user-friendly features and protective functions.
Product Information
Standard Information
-
Brand: HOTPOINT
-
Manufacturer Part Number: AHHS09E3XXA
Technical Specifications
-

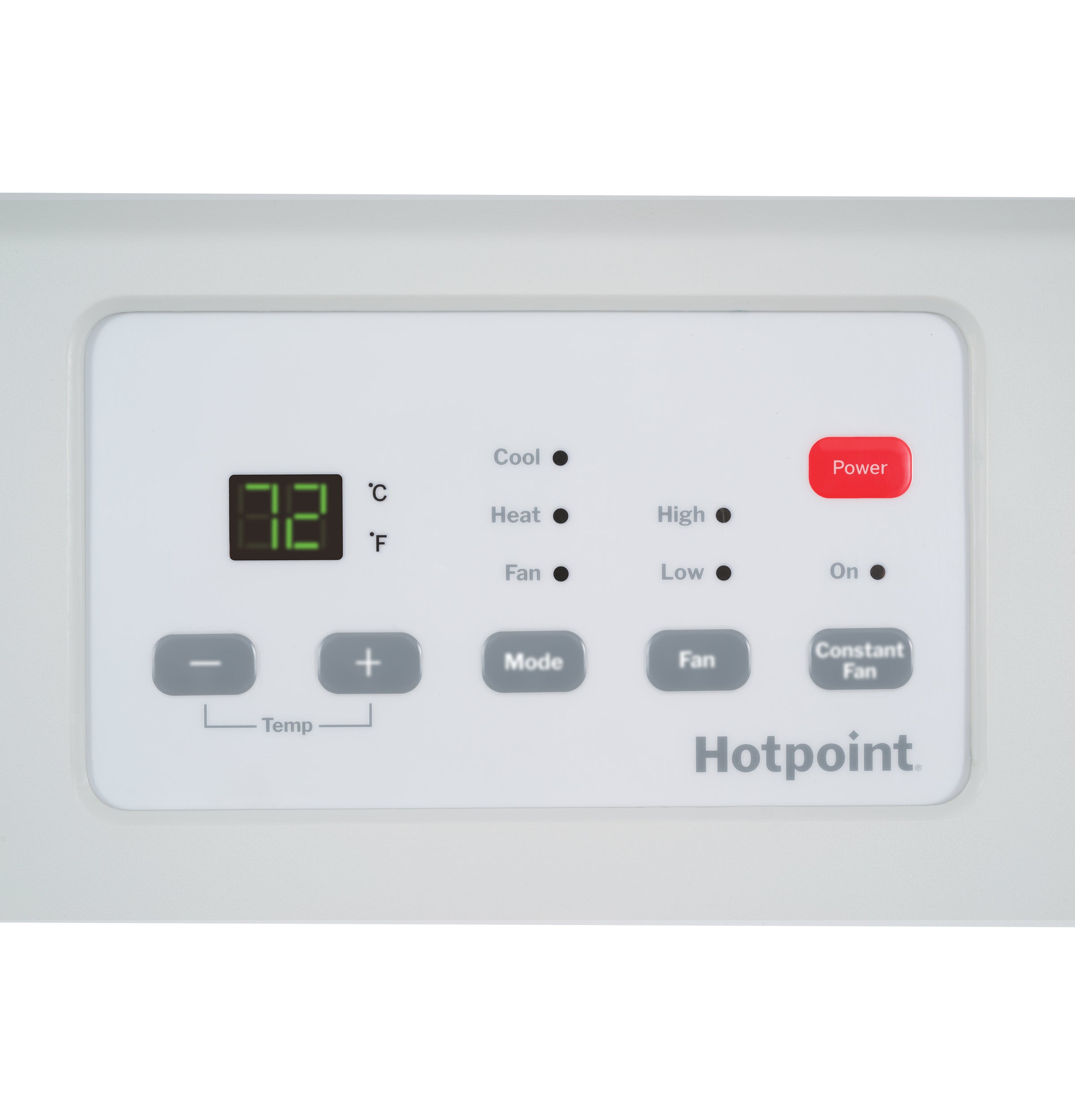

Control Type: Electronic/Digital
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Type: R32
-
Temperature Range: 62 - 80 F
-
Fan Speed Selections: 2 Cooling
2 Fan Only
2 Heating
-
Unit Features: Auto Power Recovery
Automatic Emergency Heat
Automatic Indoor Frost Control
Freeze Sentinel
Heat Pump with Resistance Heat Backup

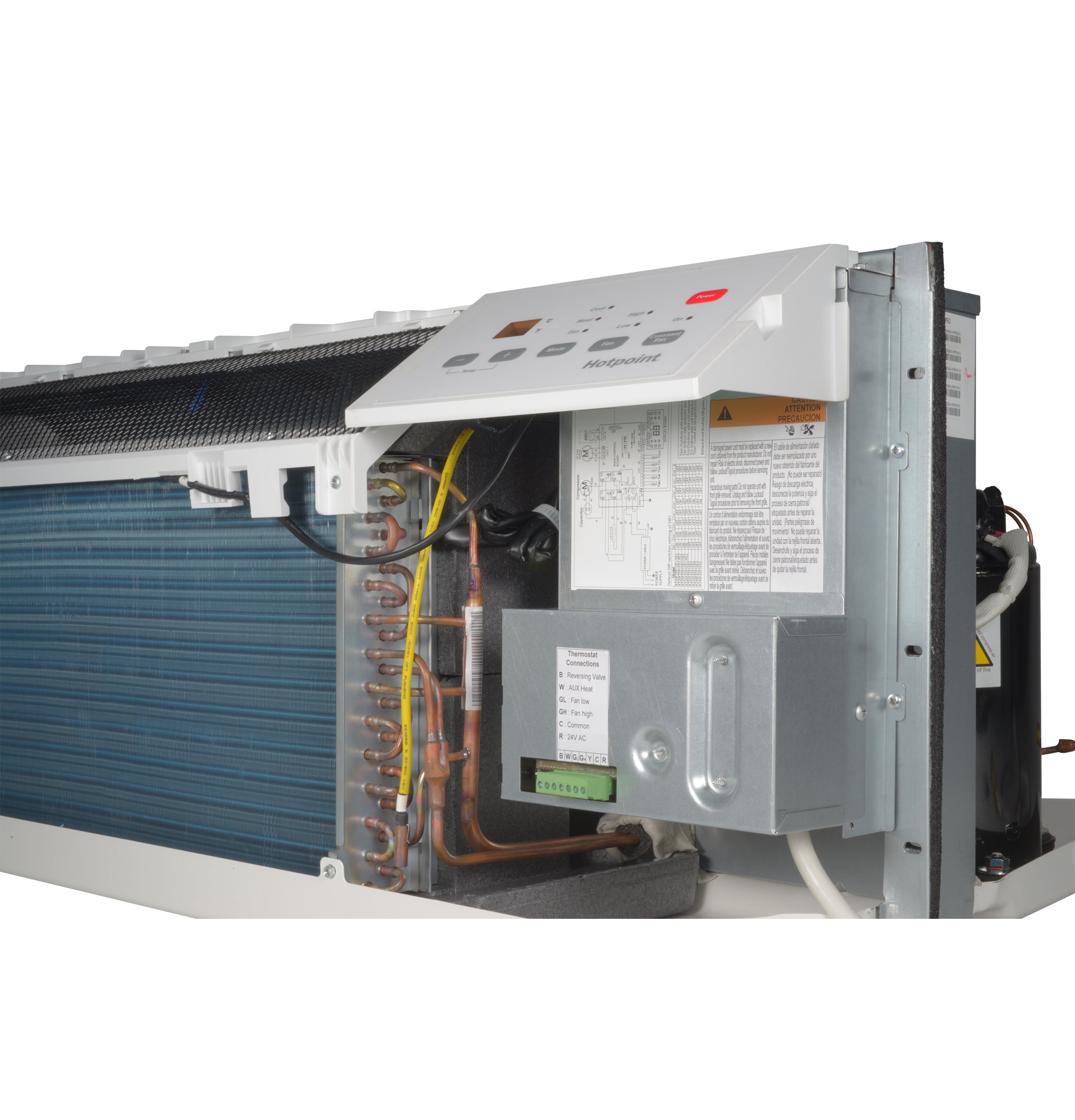

Remote Thermostat Compatibility (Accessory Kit Required)
Sub-Base required
-
Auto Power Recovery: Yes
-
Chassis Type: Slide-In
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heating - Reverse Cycle - COP: 3.3
-
Manual Vent Control: Hidden
-
Outdoor Vent / Exhaust: Yes
-
Rotary Compressor: Yes
-
Venting Features: Concealed Manual Vent Control
-
SmartFan" Fan Cycle: Yes
-
Discharge Grille: 2-position
-
Fan Motor: 1
-
Heating System: Heat Pump with Resistance Backup
-
Cooling EER (BTUH / Watt): 11.3
-
Heating - Reverse Cycle - BTUH: 8,100
-
Cooling BTUH (MAX): 9400.0 Btu
-
Installation: Through-the-Wall
-
Color Appearance: White
-
Overall Depth: 20.9 in
-
Overall Height: 16 in
-
Overall Width: 42.4 in
-
Net Weight: 86 lb
-
Cooling - Watts: 830
-
Cooling - Amperes: 3.2
-
Voltage (MAX): 265.0 V
-
Heat Pump - Amps: 3.2
-
Heat Pump - Watts: 715
-
Airflow (CFM): 500/420
-
Dehumidification (pt/hr): 1.86
-
Fan Speed Selections - Cooling: 3
-
Fan Speed Selections - Heating: 3
-
Fan Speed Selections - Fan Only: 3
-
Electric Heating Capacity (kw): 3.5
-
Sensible Heat Ratio: 79.3
-
Refrigerant Charge (Oz): 15.87
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
CFMs: 420 / 500 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@265V): 9400
-
EER (@265V): 11.3
-
Cooling Amps (@265V): 3.2
-
Cooling Watts (@265V): 830
-
Electric Heat Strip Size (kW - @265V): 3.5
-
Electric Heating BTUs (@265V): 10900
-
Electric Heating Amps (@265V): 13.2
-
Electric Heating Watts (@265V): 3500
-
Heat Pump BTUs (@265V): 8100
-
COP (@265V): 3.3
-
Heat Pump Heating Amps (@265V): 3.2
-
Heat Pump Heating Watts (@265V): 715
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-

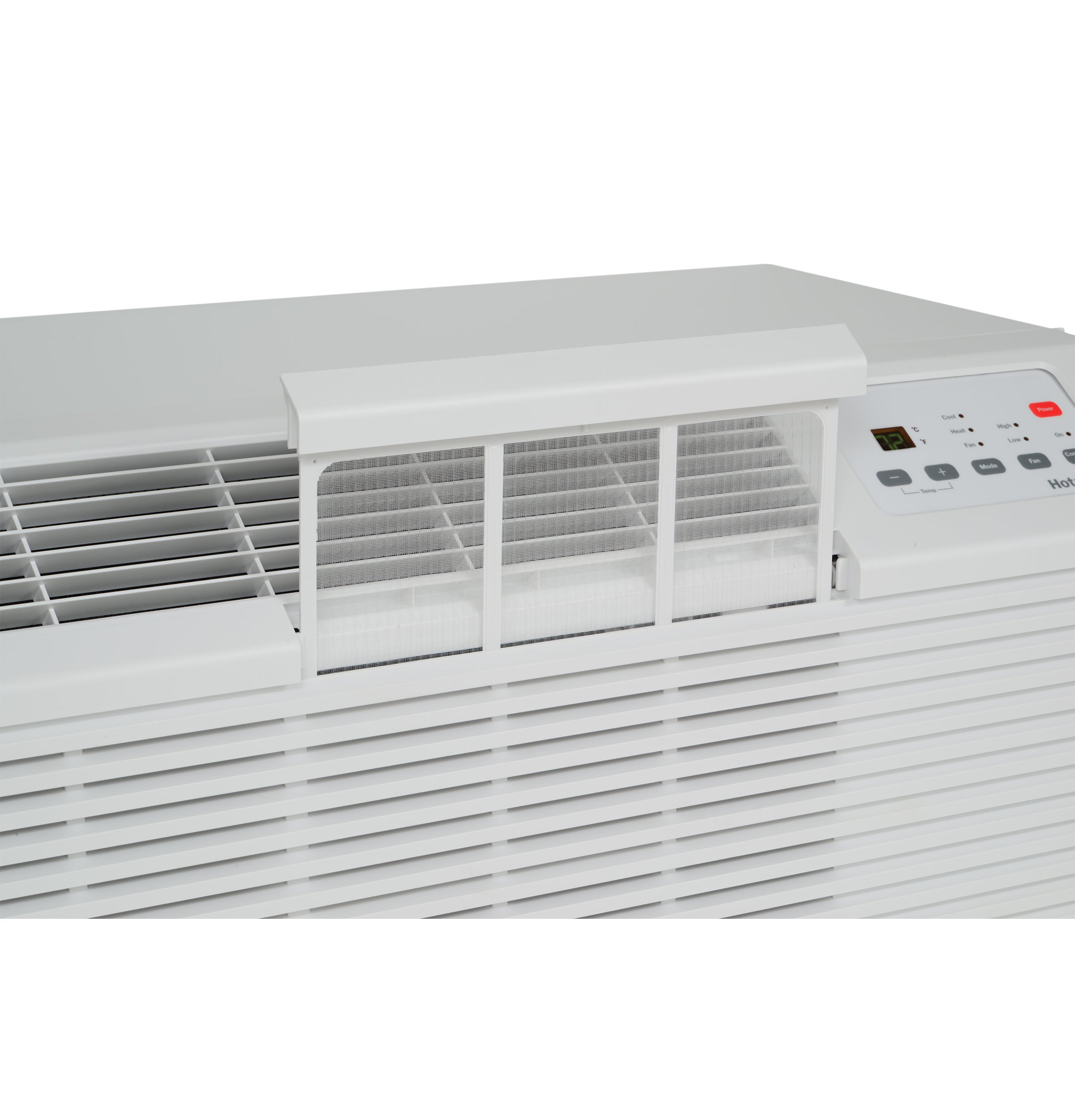

Filter Access: Rigid Frame; Slide-Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Voltage: 265-277V
-
Connection: Hardwire/Direct Connect
-
Circuit Breaker Size (Amps): 20
