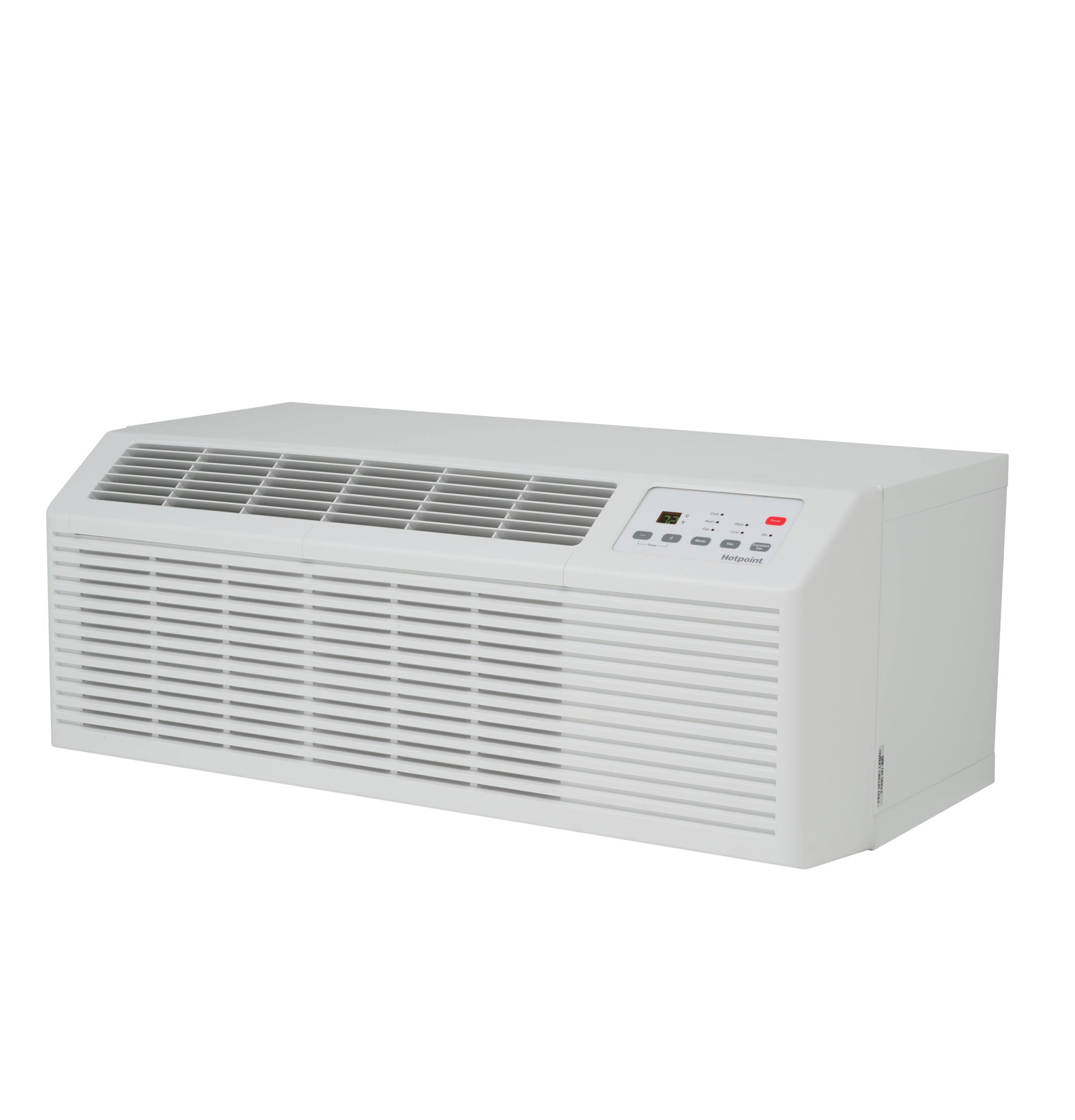

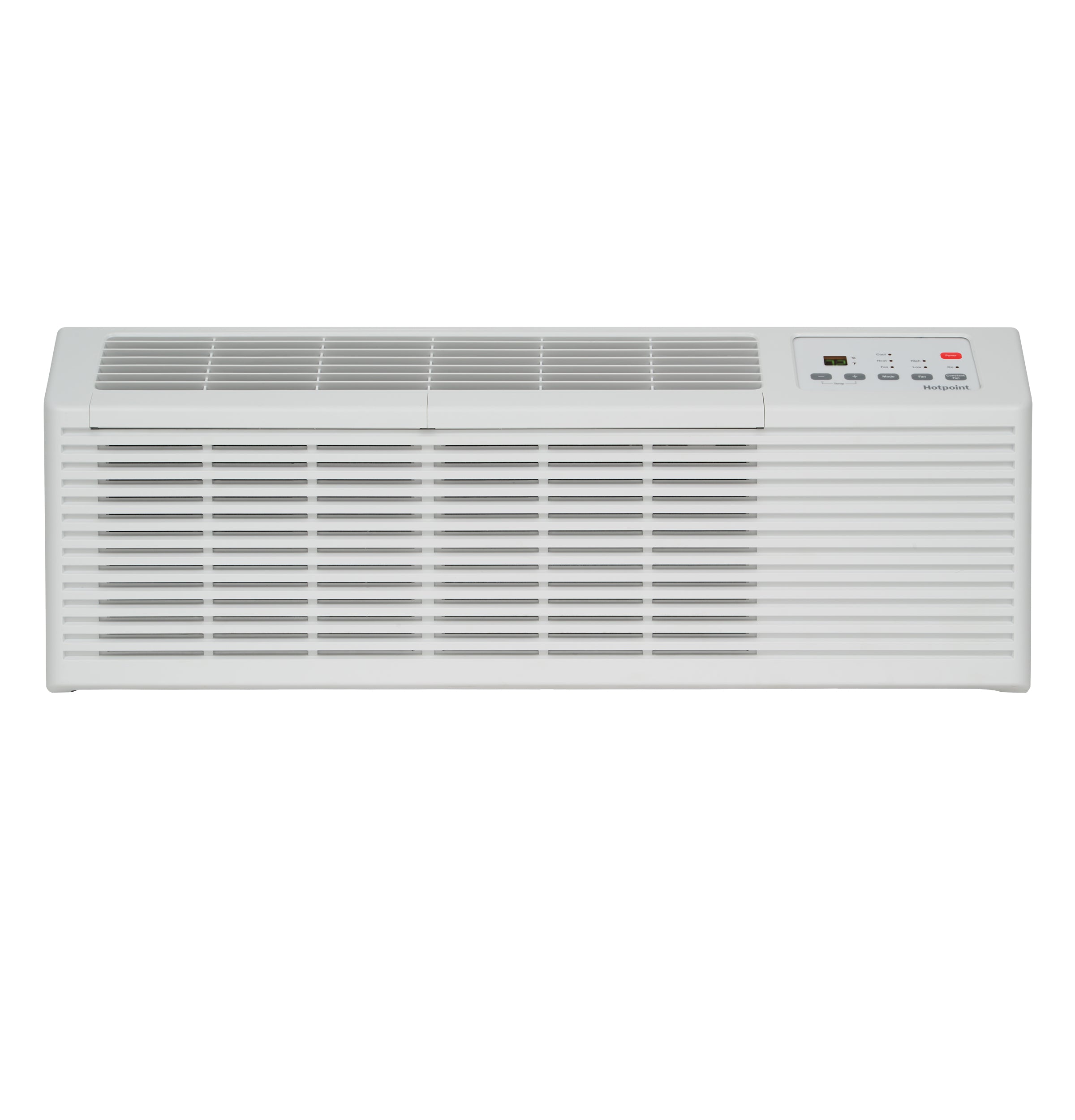

Hotpoint AHHS09D3XXA PTAC Heat Pump with Electric Heat Backup 9,000 BTU, 230/208V, 20amp

Product Description

The HOTPOINT AHHS09D3XXA PTAC Heat Pump with Electric Heat Backup offers efficient heating and cooling. Features include 2 fan speeds, 4 temperature-limiting options, and an auto-dimming display. It also has slinger ring condensate removal, a coverless control panel, automatic emergency heat, freeze/frost & overheat protection, and auto power recovery. The unit has self-diagnostics and a constant fan button.

• 2 Fan Speeds
• 4 Temperature-Limiting Options

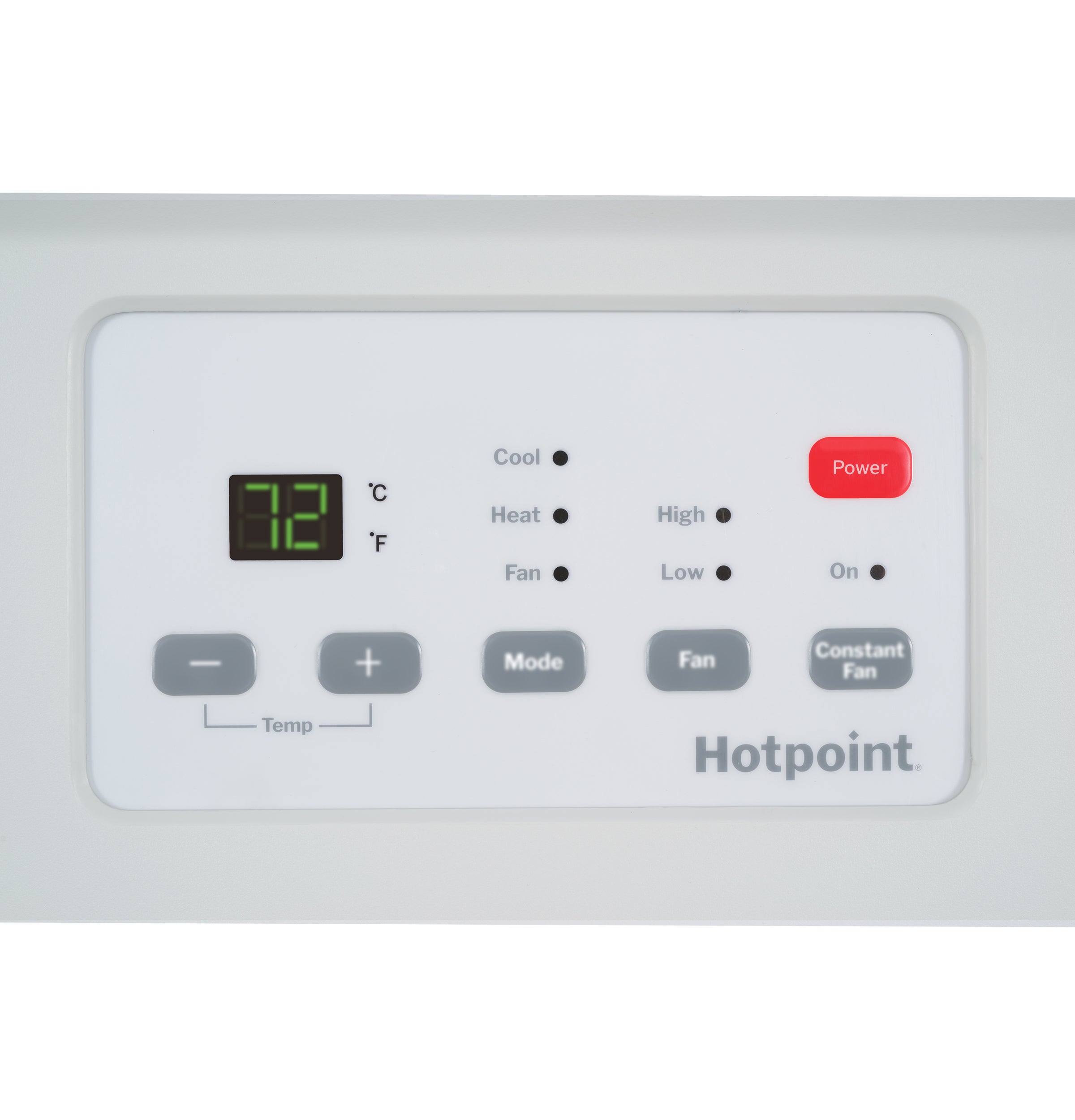

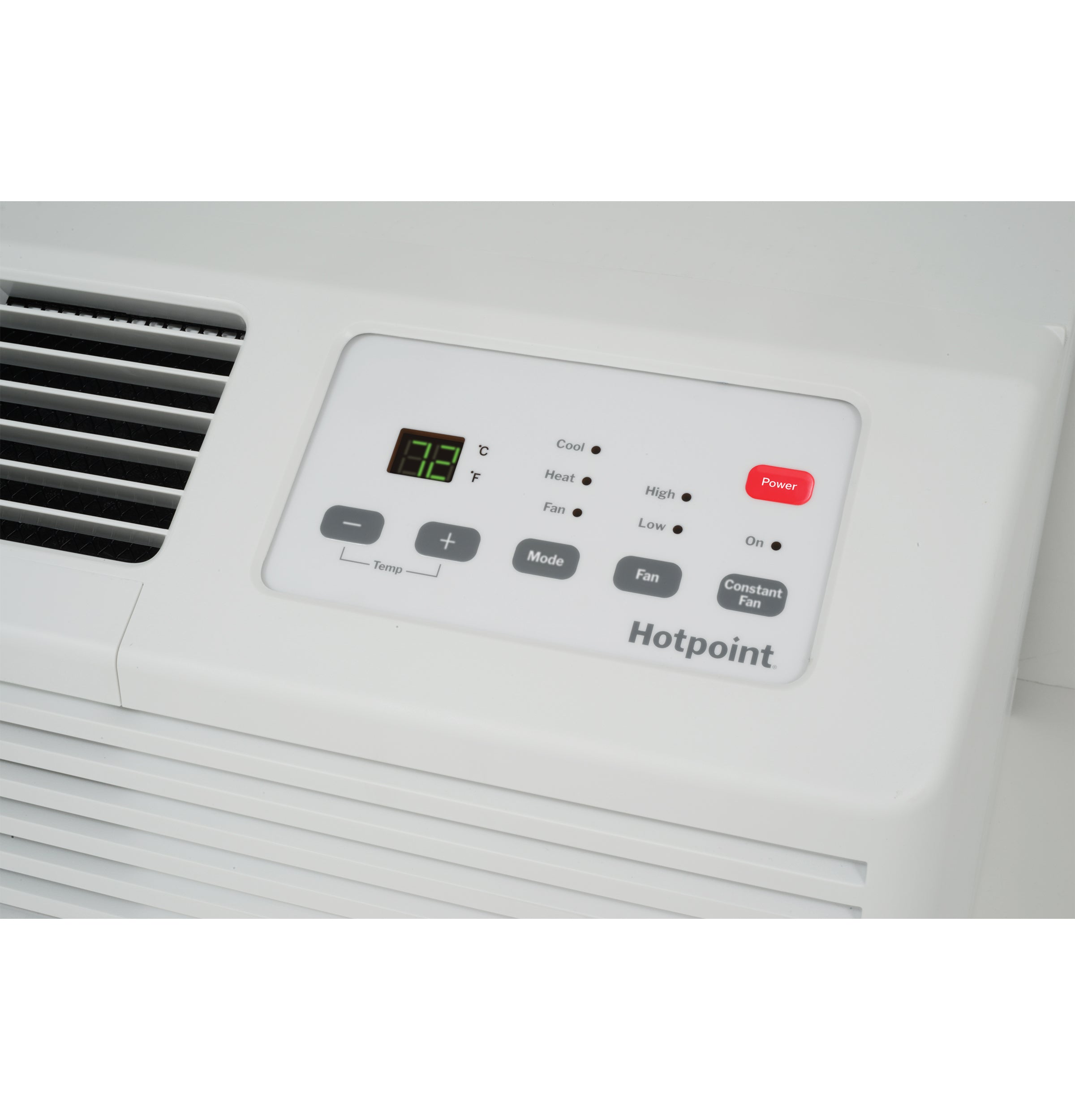

• Auto Dimming Display

Product Highlights

Efficient PTAC heat pump with multiple features for optimal climate control and user convenience.

Product Information

Standard Information

• Brand: HOTPOINT
• Manufacturer Part Number: AHHS09D3XXA

Technical Specifications

• Control Type: Electronic
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Type: R32
• Temperature Range: 62 - 80 F
• Fan Speed Selections: 2 Cooling 2 Fan Only 2 Heating
• Unit Features: Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Freeze Sentinel Heat Pump with Resistance Heat Backup Power Cord (LCDI) included Remote Thermostat Compatibility (Accessory Kit Required)
• Auto Power Recovery: Yes
• Chassis Type: Slide-In
• Heat - Cool: Yes
• Heat Pump: Yes
• Heating - Reverse Cycle - COP: 3.3/3.3
• Manual Vent Control: Hidden
• Outdoor Vent / Exhaust: Yes
• Rotary Compressor: Yes
• Venting Features: Concealed Manual Vent Control
• "SmartFan" Fan Cycle: Yes
• Discharge Grille: 2-position
• Fan Motor: 1
• Heating System: Heat Pump with Resistance Backup
• Cooling EER (BTUH / Watt): 11.3/11.4
• Heating - Reverse Cycle - BTUH: 8400/8100
• Cooling BTUH (MAX): 9400.0 Btu
• Cooling BTUH (MIN): 9200.0 Btu
• Installation: Through-the-Wall
• Color Appearance: White
• Overall Depth: 20 9/10 in
• Overall Height: 16 in
• Overall Width: 42 2/5 in
• Net Weight: 86 lb
• Cooling - Watts: 830/805
• Cooling - Amperes: 3.9/3.7
• Voltage (MAX): 230.0 V
• Voltage (MIN): 208.0 V
• Heat Pump - Amps: 4.3/4.7
• Heat Pump - Watts: 745/715
• Cooling BTU: 9000 BTU
• Machine Volts: 208/230
• Machine Amps: 20 amp
• Cord Included: Yes
• Plug Type: NEMA 6-20
• Controls: Electronic
• Heat: Heat Pump
• Heater Size (KW): 3.5 KW
• Fits Standard 42" x 16" Sleeve: Yes
• Energy Star Certified: No
• Refrigerant: R-32
• Wi-Fi Compatible: No
• Remote Control: No
• Automatic Restart: Yes
• Seacoast Protection: No
• Freeze Protection: Yes
• Number of Fan Motors: 1
• Fan Speeds: 3
• ADA Compliant: No
• Energy Efficiency Rating (EER): 11.4
• COP Rating: 3.3
• Sleeve Included: No
• Exterior Grille Included: No
• Maximum Cooling Watts: 830
• Maximum Cooling Amps: 3.9
• Actual Cooling BTUs @ 208V: 9200
• Actual Cooling BTUs @ 230V: 9400
• Actual Heating BTUs Heat Pump @ 208V: 8100
• Actual Heating BTUs Heat Pump @ 230V: 8400
