Product Description

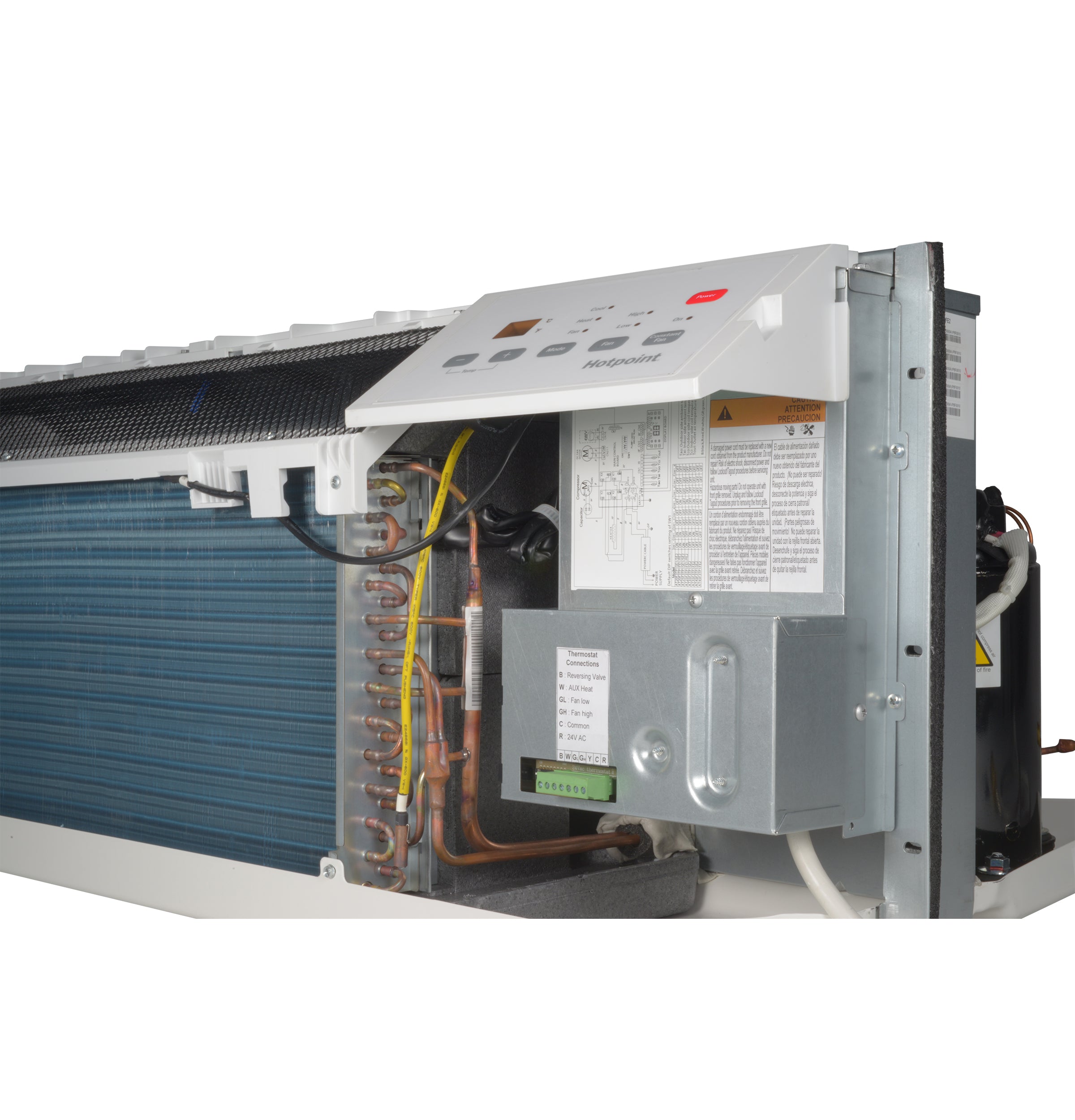

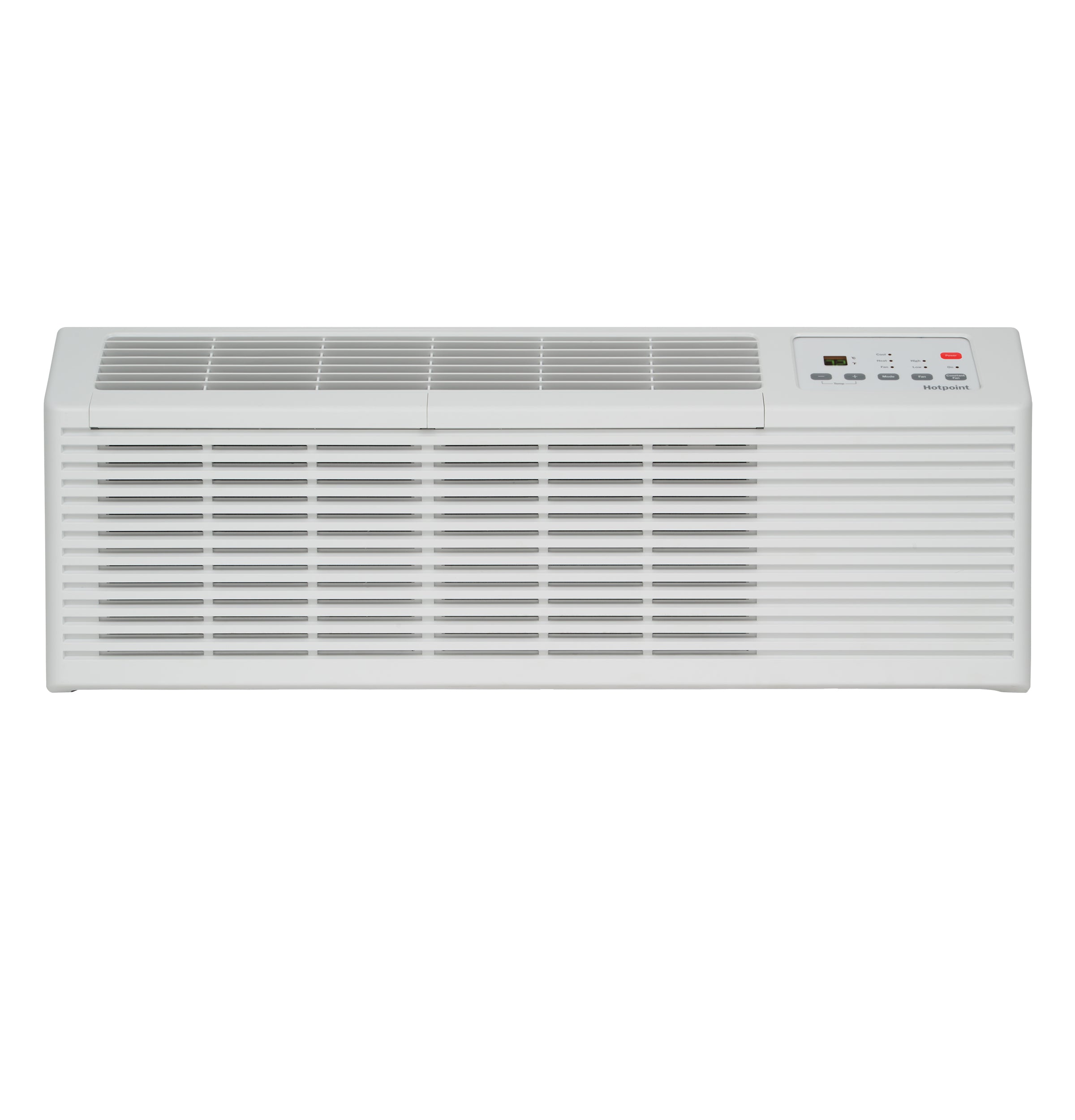

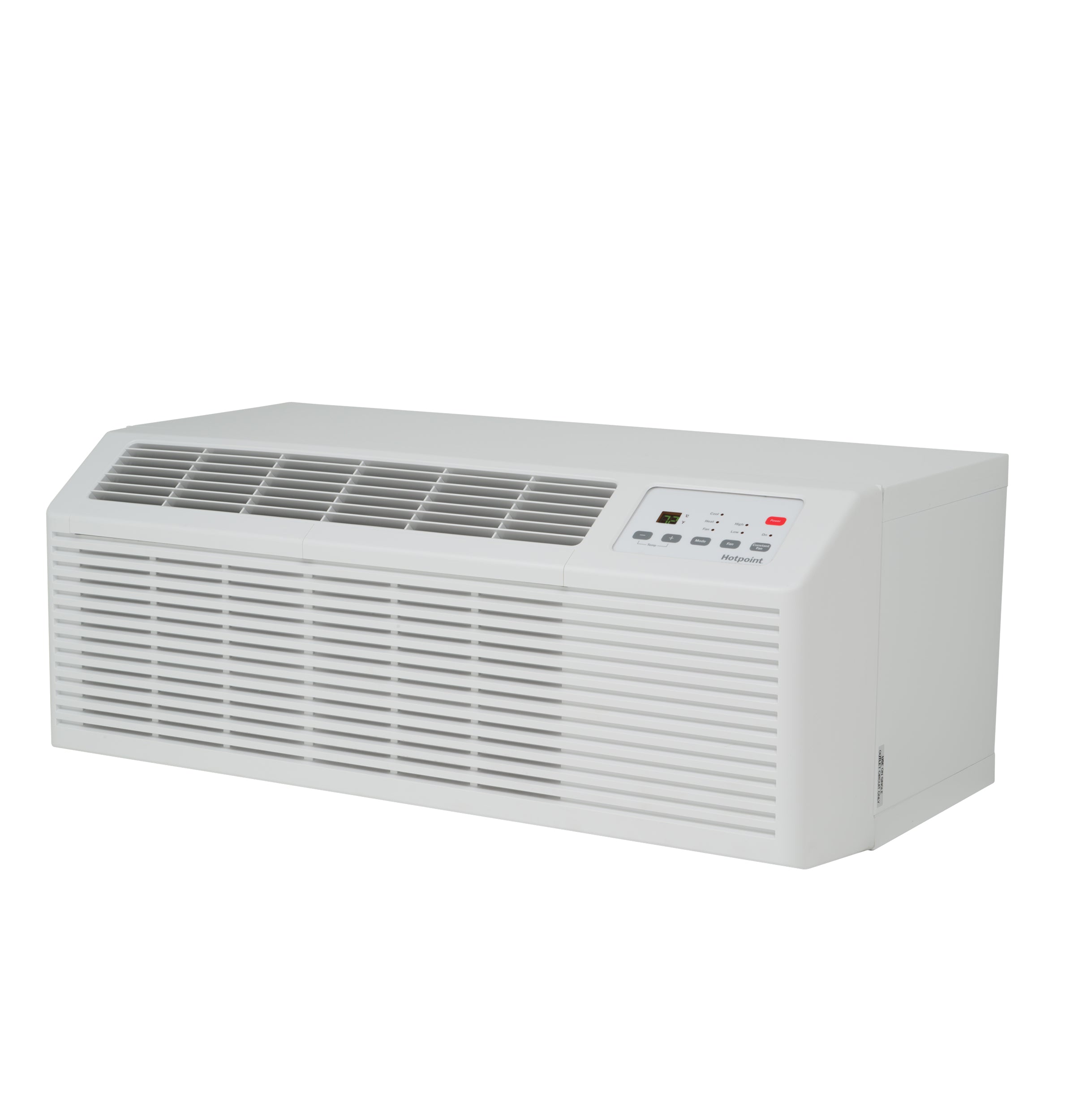

The Hotpoint AHHS09D2XXA PTAC Heat Pump Unit features 2 Fan Speeds, 4 Temperature-Limiting Options, and an Auto Dimming Display. This packaged terminal air conditioner includes Slinger Ring Condensate Removal, Coverless Control Panel, and Automatic Emergency Heat. It also offers Freeze/Frost & Overheat Protection, Auto Power Recovery, and Self-Diagnostics.
- Features 2 Fan Speeds and 4 Temperature-Limiting Options
- Includes Automatic Emergency Heat and Auto Power Recovery
- Offers Freeze/Frost & Overheat Protection and Self-Diagnostics
Product Highlights
The Hotpoint PTAC unit provides efficient cooling and heating with multiple features for ease of use and protection.
Product Information
Standard Information
-
Brand: HOTPOINT
-
Manufacturer Part Number: AHHS09D2XXA
Technical Specifications
-

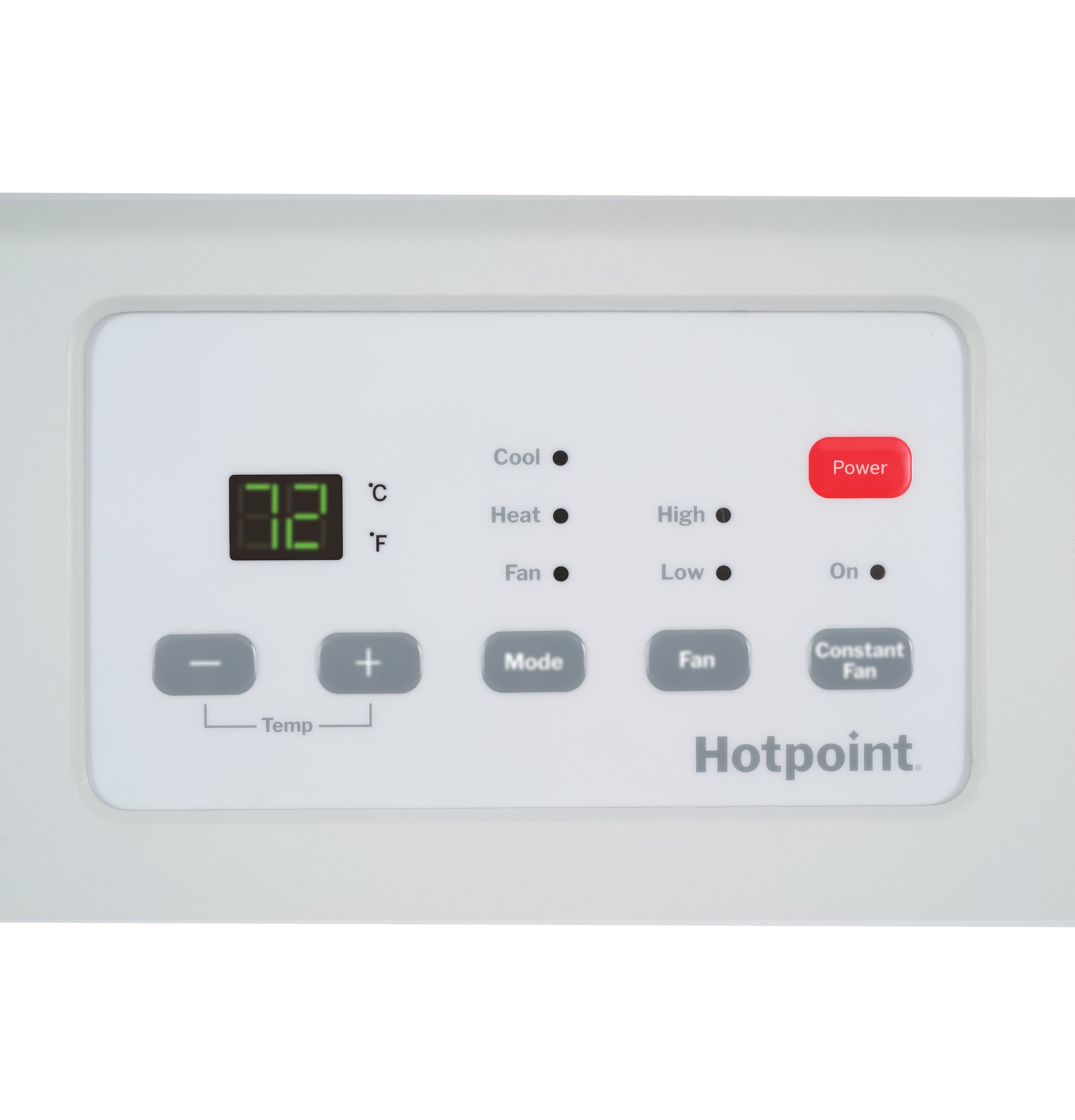

Control Type: Electronic
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Type: R32
-
Temperature Range: 62 - 80 F
-
Fan Speed Selections: 2 Cooling
2 Fan Only
2 Heating
-
Unit Features: Auto Power Recovery
Automatic Emergency Heat
Automatic Indoor Frost Control
Freeze Sentinel
Heat Pump with Resistance Heat Backup
Power Cord (LCDI) included

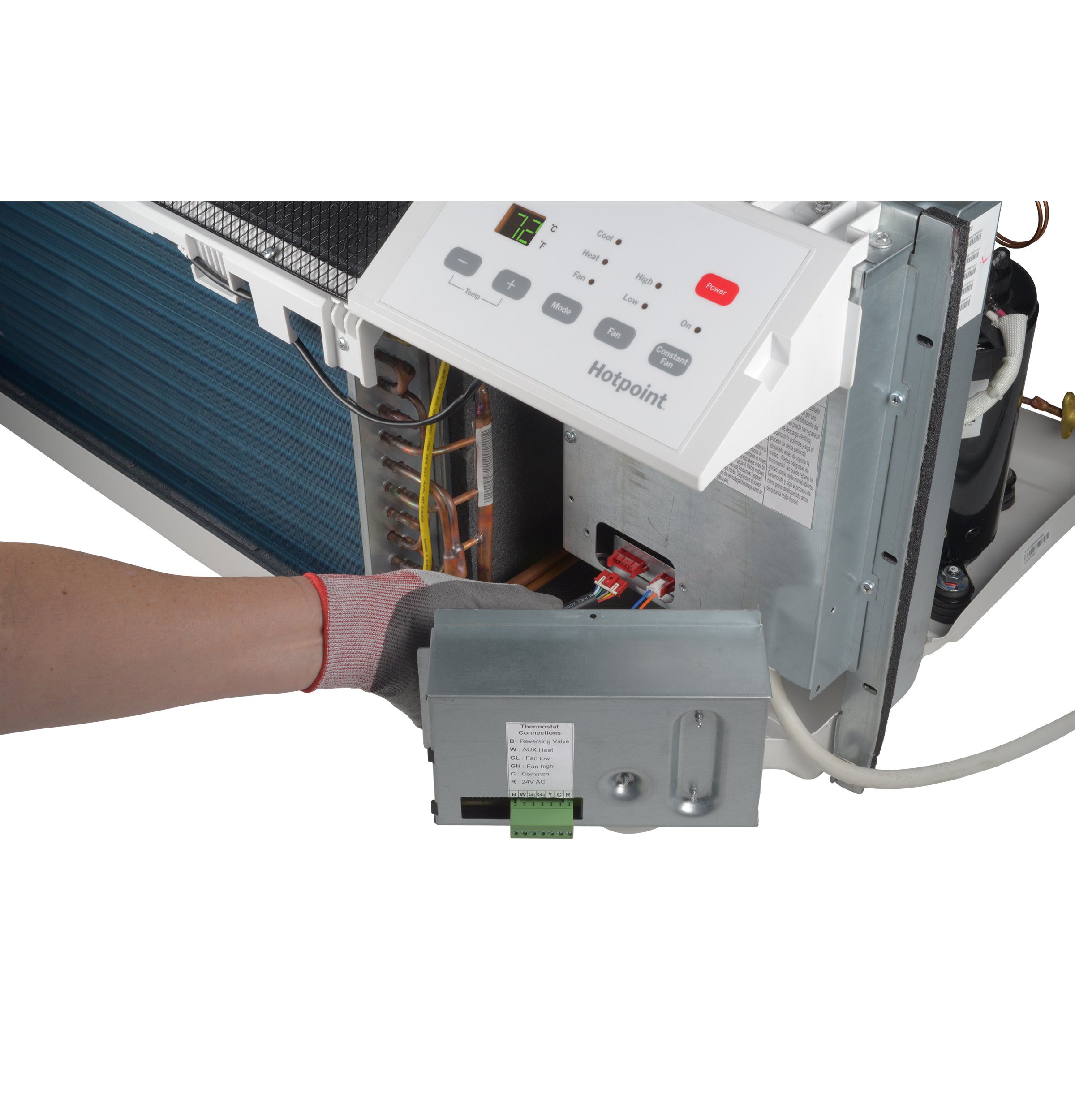

Remote Thermostat Compatibility (Accessory Kit Required)
-
Auto Power Recovery: Yes
-
Chassis Type: Slide-In
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heating - Reverse Cycle - COP: 3.3/3.3
-
Manual Vent Control: Hidden
-
Outdoor Vent / Exhaust: Yes
-
Rotary Compressor: Yes
-
Venting Features: Concealed Manual Vent Control
-
"SmartFan" Fan Cycle: Yes
-
Discharge Grille: 2-position
-
Fan Motor: 1
-
Heating System: Heat Pump with Resistance Backup
-
Cooling EER (BTUH / Watt): 11.3/11.4
-
Heating - Reverse Cycle - BTUH: 8400/8100
-
Cooling BTUH (MAX): 9400.0 Btu
-
Cooling BTUH (MIN): 9200.0 Btu
-
Installation: Through-the-Wall
-
Overall Depth: 20.9
-
Overall Height: 16 in
-
Overall Width: 42.4 in
-
Net Weight: 86 lb
-
Cooling - Watts: 830/850
-
Cooling - Amperes: 3.9/3.7
-
Voltage (MAX): 230.0 V
-
Voltage (MIN): 208.0 V
-
Heat Pump - Amps: 4.3/4.7
-
Heat Pump - Watts: 745/715
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
Dehumidification (pts/hr): 1.86
-
CFMs: 420 / 480 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@208V): 9200
-
EER (@208V): 11.4
-
Cooling Amps (@208V): 3.7
-
Cooling Watts (@208V): 805
-
Electric Heat Strip Size (kW - @208V): 2.1
-
Electric Heating BTUs (@208V): 6300
-
Electric Heating Amps (@208V): 10.3
-
Electric Heating Watts (@208V): 2150
-
Heat Pump BTUs (@208V): 8100
-
COP (@208V): 3.3
-
Heat Pump Heating Amps (@208V): 4.7
-
Heat Pump Heating Watts (@208V): 715
-
Cooling BTUs (@230V): 9400
-
EER (@230V): 11.3
-
Cooling Amps (@230V): 3.9
-
Cooling Watts (@230V): 830
-
Electric Heat Strip Size (kW - @230V): 2.5
-
Electric Heating BTUs (@230V): 7800
-
Electric Heating Amps (@230V): 11.3
-
Electric Heating Watts (@230V): 2580
-
Heat Pump BTUs (@230V): 8400
-
Heat Pump Heating Amps (@230V): 4.3
-
Heat Pump Heating Watts (@230V): 745
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Filter Access: Rigid Frame; Slide-Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Certifications: UL / CUL / AHRI
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-15P
-
Circuit Breaker Size (Amps): 15
-
Cord Length: 6'
