Product Description

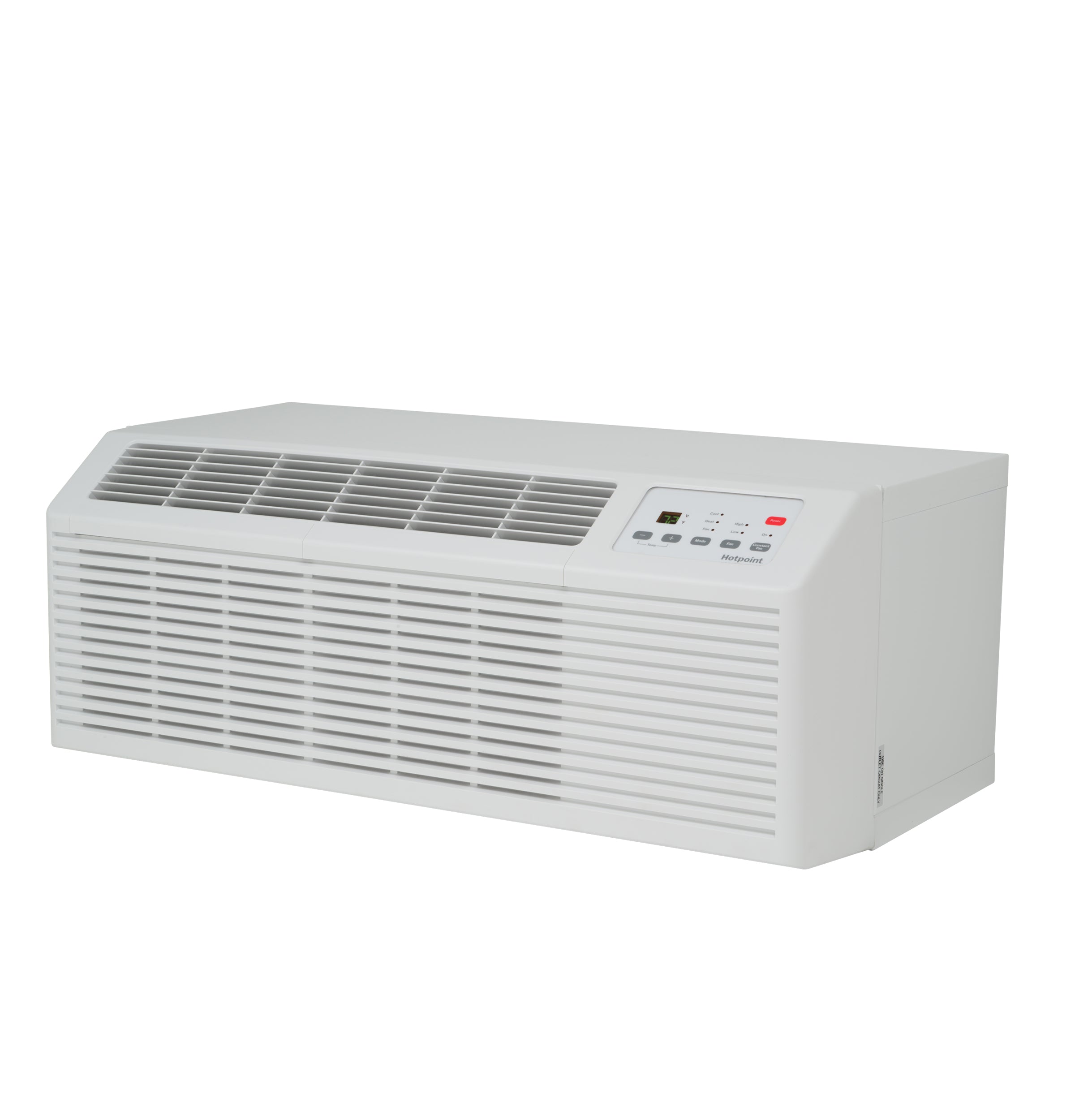

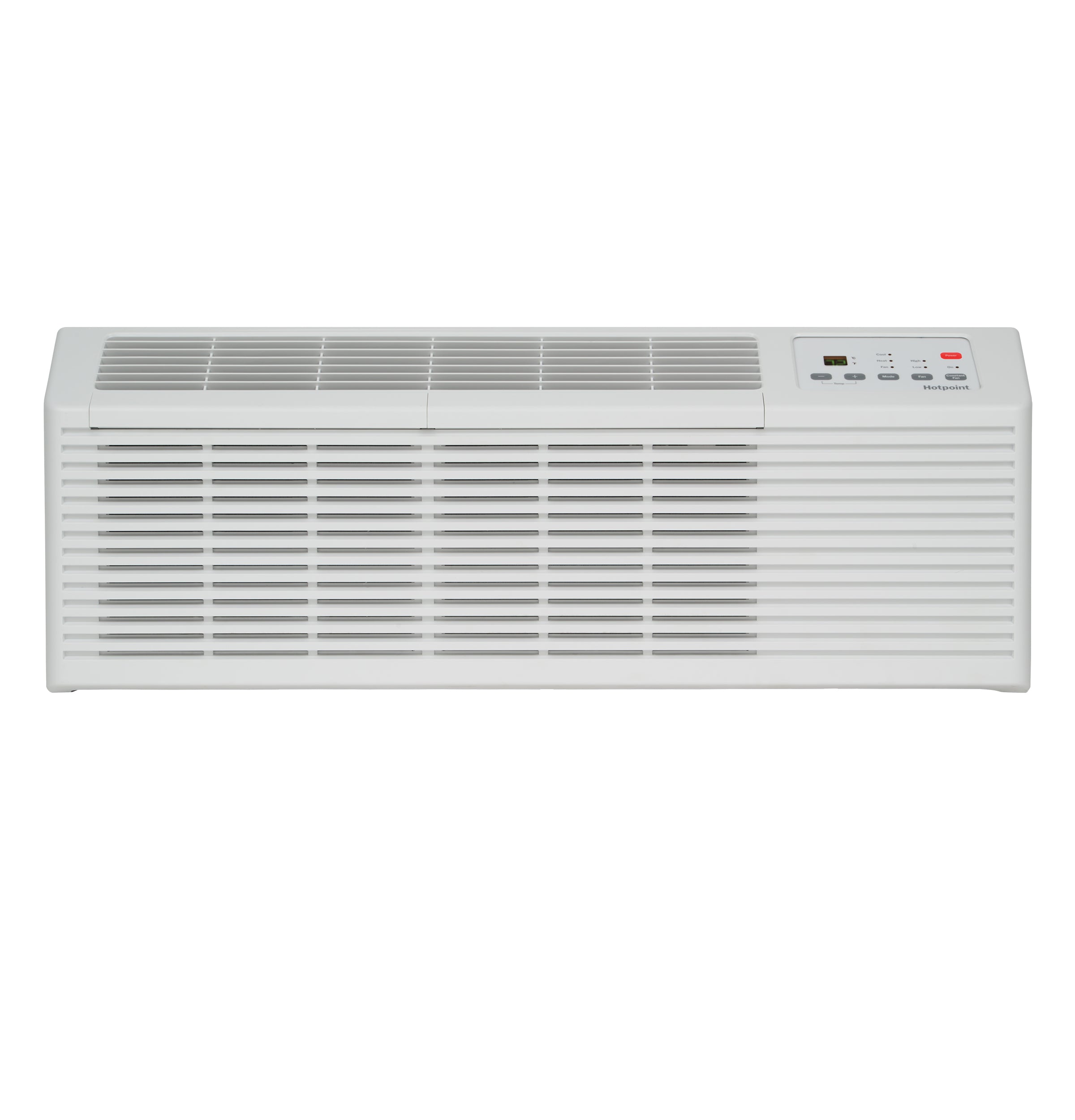

The HOTPOINT AHHS07D2XXA PTAC heat pump unit provides 7,000 BTU with electric heat backup, operating at 230/208V and 15amp. This unit features electronic controls and utilizes R32 refrigerant. It offers both cooling and heating modes, with a heat pump and resistance heat backup. The unit includes auto power recovery and freeze protection.
- Offers 2 fan speeds and 4 temperature-limiting options.
- Features automatic emergency heat and auto power recovery.
- Includes freeze/frost and overheat protection.
Product Highlights
Provides efficient cooling and heating with user-friendly features and reliable performance. Ideal for maintaining comfortable temperatures with multiple fan speeds and safety features.
Product Information
Standard Information
-
Brand: HOTPOINT
-
Manufacturer Part Number: AHHS07D2XXA
Technical Specifications
-

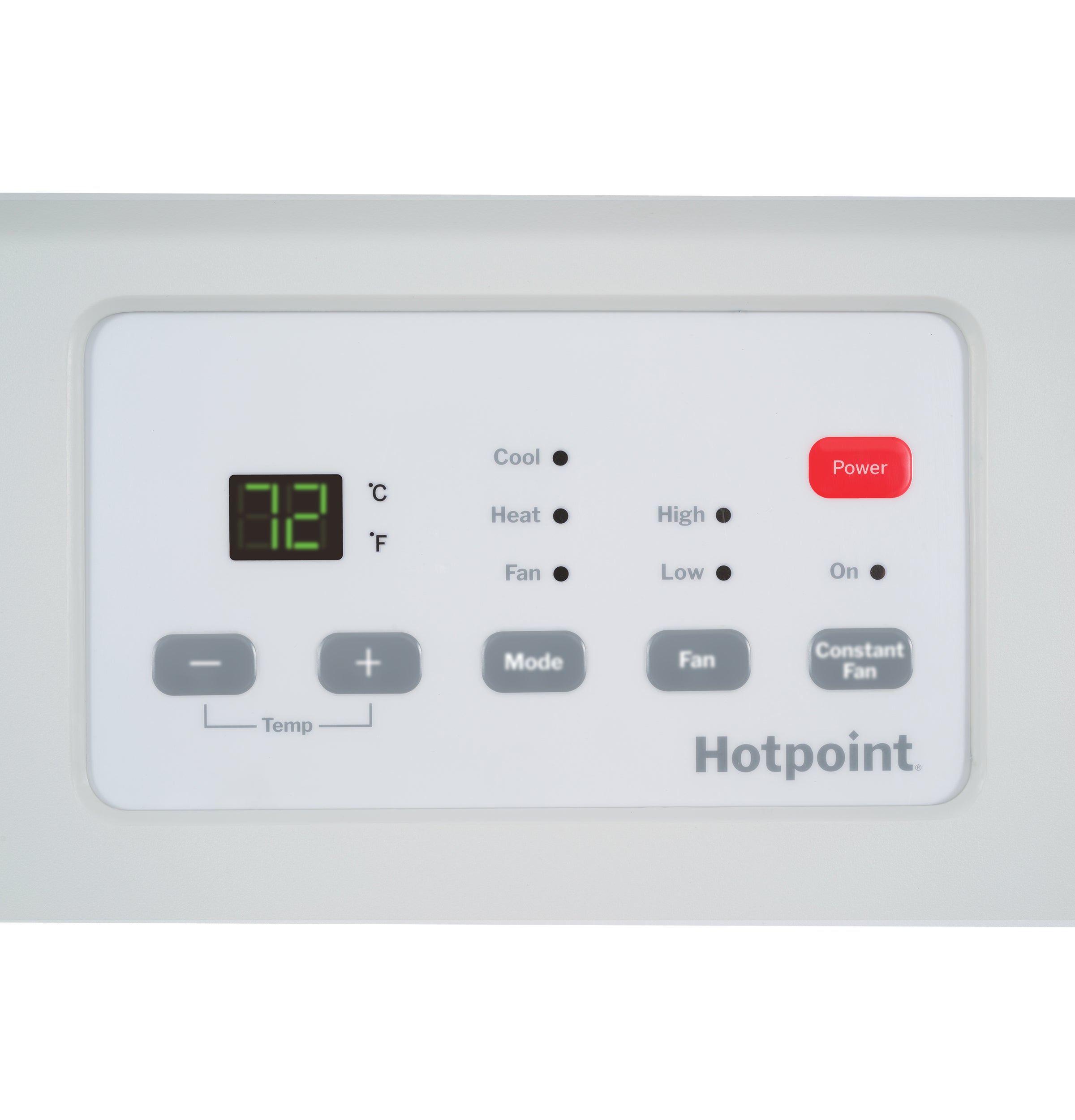

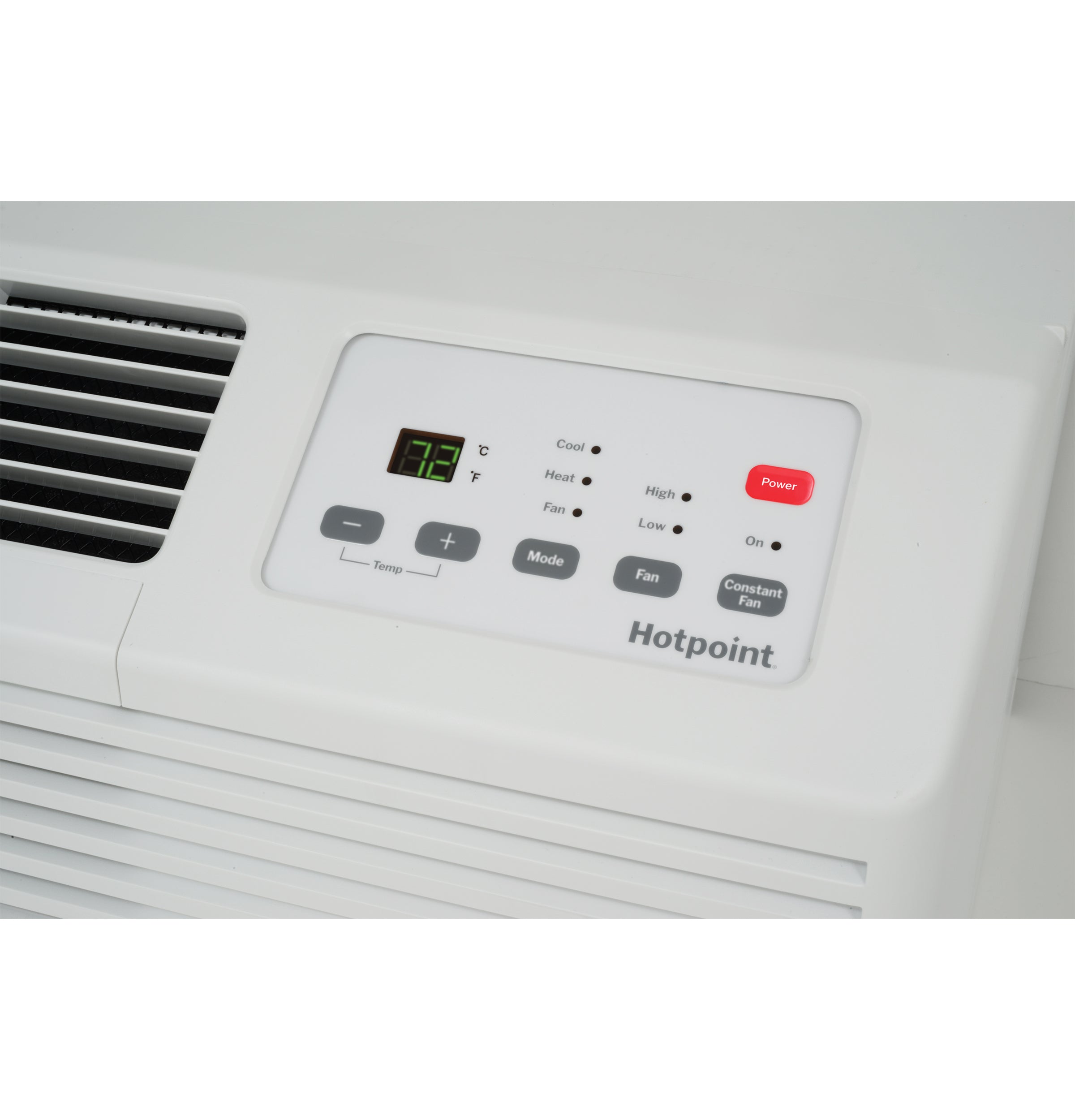

Control Type: Electronic
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Type: R32
-
Temperature Range: 62 - 80 F
-
Fan Speed Selections: 2 Cooling
2 Fan Only
2 Heating
-
Unit Features: Auto Power Recovery
Automatic Emergency Heat
Automatic Indoor Frost Control
Freeze Sentinel
Heat Pump with Resistance Heat Backup
Power Cord (LCDI) included
Remote Thermostat Compatibility (Accessory Kit Required)
-
Auto Power Recovery: Yes
-
Chassis Type: Slide-In
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heating - Reverse Cycle - COP: 3.4/3.4
-
Manual Vent Control: Hidden
-
Outdoor Vent / Exhaust: Yes
-
Rotary Compressor: Yes
-
Venting Features: Concealed Manual Vent Control
-
SmartFan" Fan Cycle: Yes
-
Discharge Grille: 2-position
-
Fan Motor: 1
-
Heating System: Heat Pump with Resistance Backup
-
Cooling EER (BTUH / Watt): 12.0/12.1
-
Heating - Reverse Cycle - BTUH: 6000/5800
-
Cooling BTUH (MAX): 7100.0 Btu
-
Cooling BTUH (MIN): 7000.0 Btu
-
Installation: Through-the-Wall
-
Overall Depth: 20 9/10 in
-
Overall Height: 16 in
-
Overall Width: 42 2/5 in
-
Cooling - Watts: 590/575
-
Cooling - Amperes: 2.8/2.6
-
Voltage (MAX): 230.0 V
-
Voltage (MIN): 208.0 V
-
Heat Pump - Amps: 2.6/2.8
-
Heat Pump - Watts: 515/495
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
Dehumidification (pts/hr): .95
-
CFMs: 400 / 480 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@208V): 7000
-
EER (@208V): 12.1
-
Cooling Amps (@208V): 2.6
-
Cooling Watts (@208V): 575
-
Electric Heat Strip Size (kW - @208V): 2.1
-
Electric Heating BTUs (@208V): 6300
-
Electric Heating Amps (@208V): 10.3
-
Electric Heating Watts (@208V): 2150
-
Heat Pump BTUs (@208V): 5800
-
COP (@208V): 3.4
-
Heat Pump Heating Amps (@208V): 2.6
-
Heat Pump Heating Watts (@208V): 495
-
Cooling BTUs (@230V): 7100
-
EER (@230V): 12.0
-
Cooling Amps (@230V): 2.8
-
Cooling Watts (@230V): 590
-
Electric Heat Strip Size (kW - @230V): 2.5
-
Electric Heating BTUs (@230V): 7800
-
Electric Heating Amps (@230V): 11.3
-
Electric Heating Watts (@230V): 2580
-
Heat Pump BTUs (@230V): 6000
-
Heat Pump Heating Amps (@230V): 2.6
-
Heat Pump Heating Watts (@230V): 515
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Filter Access: Rigid Frame; Slide-Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-15P
-
Circuit Breaker Size (Amps): 15
-
Cord Length: 6'
-
AMPS: 15A
-
Reverse Cycle BTU: 6000
-
Modes: Heat/Cool/Heat-Pump
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Auto Restart: YES
-
Digital Controls: YES
-
Front Desk Connection: YES
-
Temprature Limiting: YES
-
Freeze Protection: YES
-
Sea Coast Protection: NO
