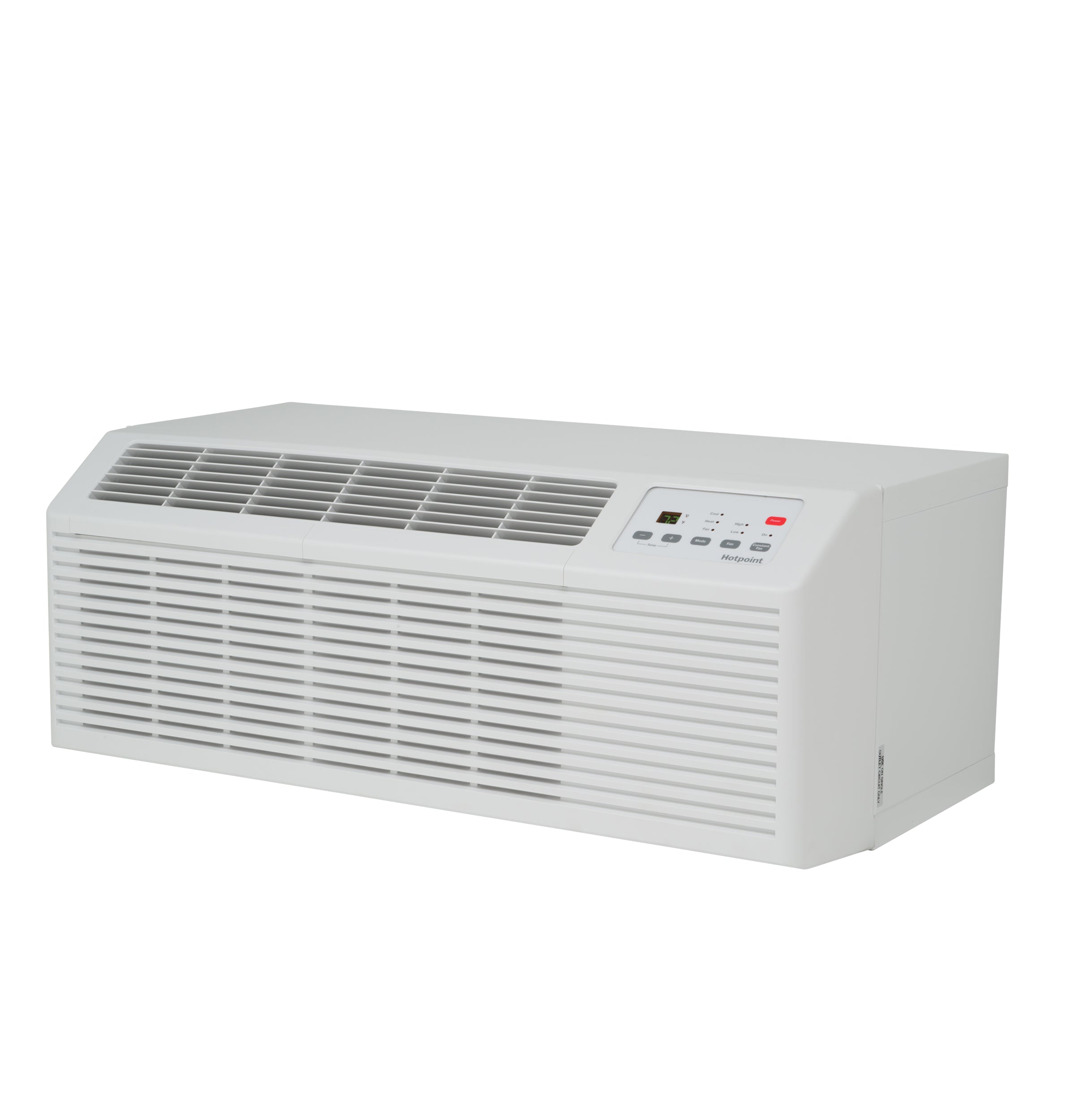

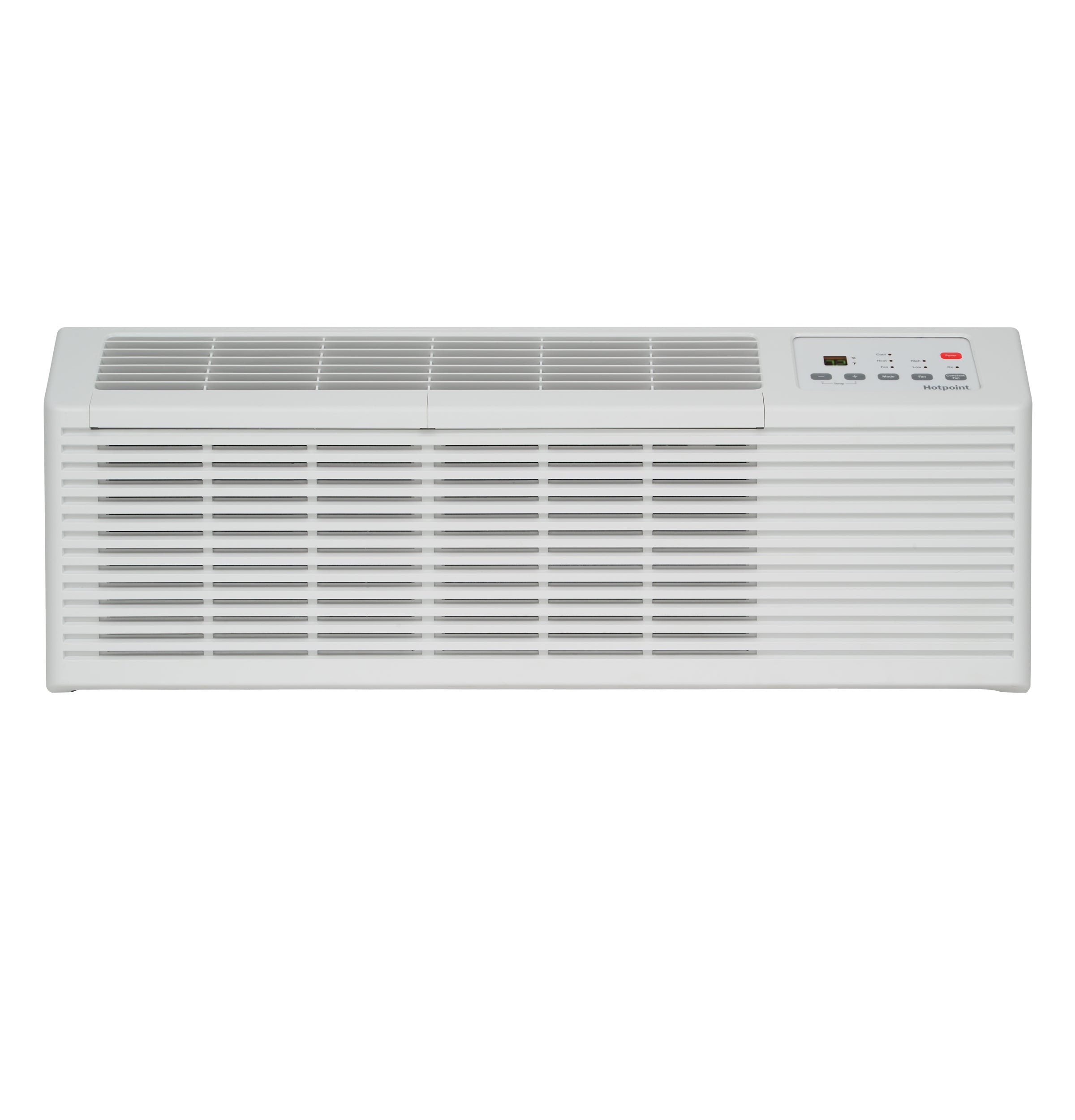

Hotpoint AHES15D3XXA PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp

Product Description

The Hotpoint AHES15D3XXA PTAC with Electric Heat delivers 15,000 BTU and operates at 230/208V with 20amp. This packaged terminal air conditioner features electronic controls and a slide-in chassis. It includes auto power recovery and freeze sentinel for protection. The unit offers both heating and cooling capabilities with a temperature range of 62 - 80 F.

• Features 2 fan speeds and 4 temperature-limiting options
• Equipped with auto dimming display and slinger ring condensate removal
• Includes automatic emergency heat and freeze/frost & overheat protection

Product Highlights

This PTAC unit provides efficient and reliable climate control with multiple fan speeds, temperature settings, and protective features.

Product Information

Standard Information

• Brand: HOTPOINT
• Manufacturer Part Number: AHES15D3XXA

Technical Specifications

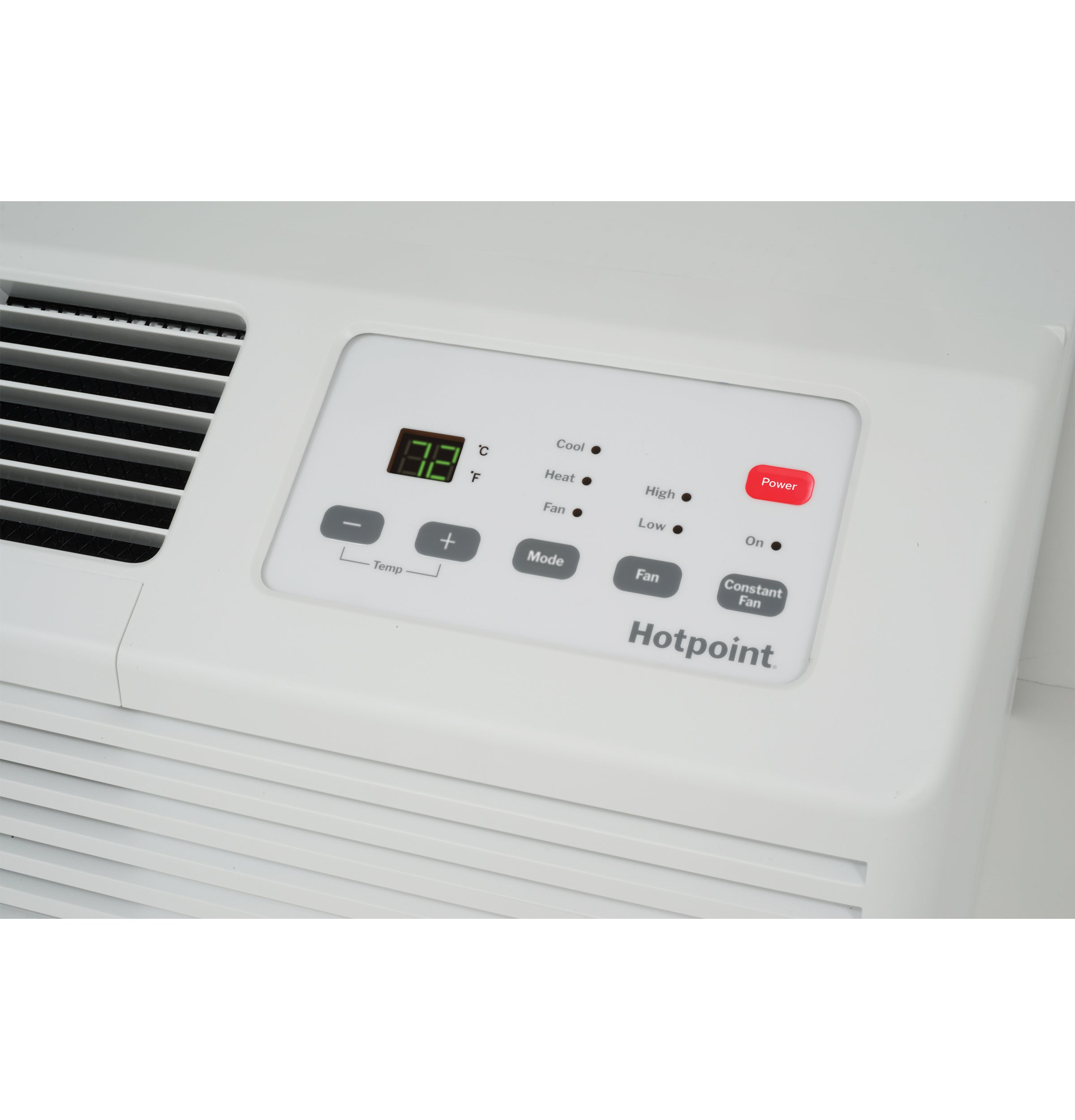

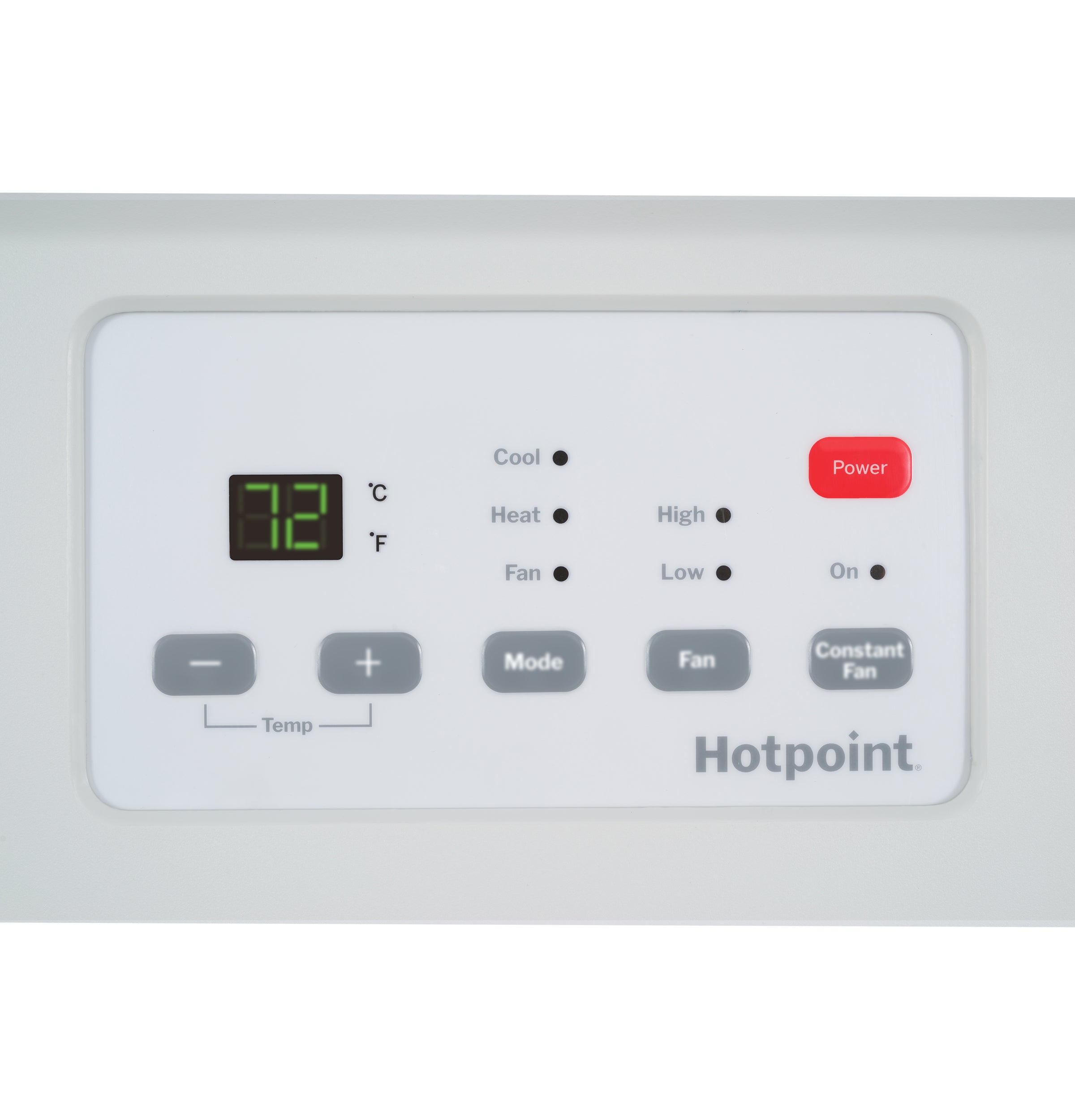

• Control Type: Electronic
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Type: R32
• Temperature Range: 62 - 80 F
• Fan Speed Selections: 2 Cooling, 2 Fan Only, 2 Heating
• Unit Features: Auto Power Recovery, Automatic Indoor Frost Control, Freeze Sentinel, Power Cord (LCDI) included, Remote Thermostat Compatibility (Accessory Kit Required)
• Chassis Type: Slide-In
• Heat - Cool: Yes
• Manual Vent Control: Hidden
• Outdoor Vent / Exhaust: Yes
• Rotary Compressor: Yes
• Venting Features: Concealed Manual Vent Control
• "SmartFan" Fan Cycle: Yes
• Discharge Grille: 2-position
• Fan Motor: 1
• Heating System: Electric Resistance
• Cooling EER (BTUH / Watt): 9.7/9.7
• Cooling BTUH (MAX): 14500 Btu
• Cooling BTUH (MIN): 14300 Btu
• Installation: Through-the-Wall
• Overall Depth: 20.9 in
• Overall Height: 16 in
• Overall Width: 42.4 in
• Heating - Electric - Heater Watts: 3500
• Cooling - Watts: 1490/1470
• Cooling - Amperes: 7.1/6.6
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Auto Power Recovery: Yes
