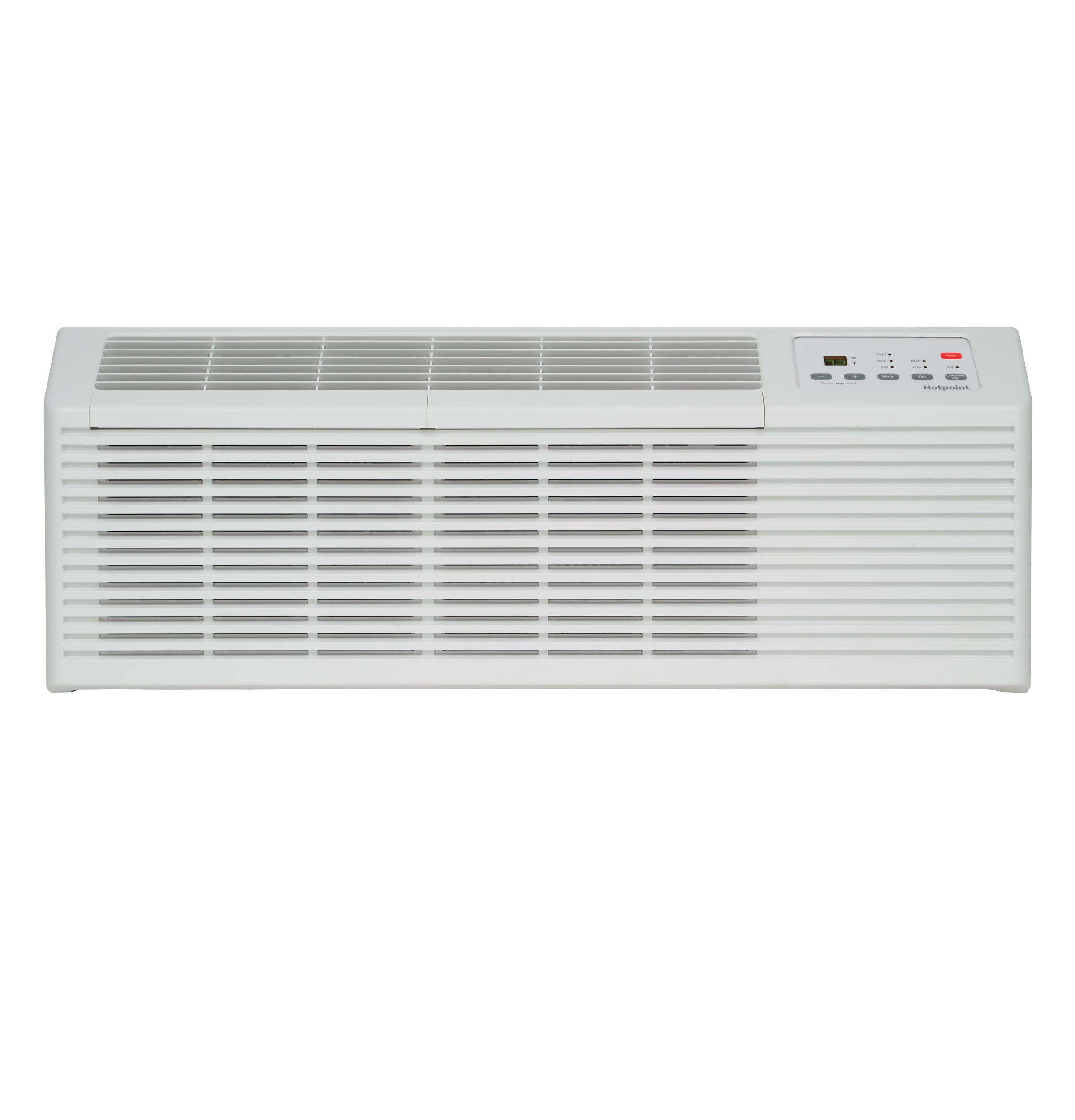

Product Description
The HOTPOINT AHES12D3XXA PTAC with Electric Heat delivers 12,000 BTU and operates at 230/208V, 20amp. Features include 2 fan speeds, 4 temperature-limiting options, and an auto-dimming display. It also has slinger ring condensate removal, a coverless control panel, and automatic emergency heat. The unit provides freeze/frost and overheat protection, auto power recovery, and self-diagnostics.
- Offers 2 fan speeds and 4 temperature-limiting options.
- Includes automatic emergency heat and auto power recovery.
- Features freeze/frost and overheat protection.
Product Highlights
This PTAC unit provides efficient cooling and heating with user-friendly features and safety protections.
Product Information
Standard Information
-
Brand: HOTPOINT
-
Manufacturer Part Number: AHES12D3XXA
Technical Specifications
-
Control Type: Electronic
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Type: R32
-
Temperature Range: 62 - 80 F
-
Fan Speed Selections: 2 Cooling
2 Fan Only
2 Heating
-
Unit Features: Auto Power Recovery
Automatic Indoor Frost Control
Freeze Sentinel
Power Cord (LCDI) included
Remote Thermostat Compatibility (Accessory Kit Required)
-
Auto Power Recovery: Yes
-
Chassis Type: Slide-In
-
Heat - Cool: Yes
-
Manual Vent Control: Hidden
-
Outdoor Vent / Exhaust: Yes
-
Rotary Compressor: Yes
-
Venting Features: Concealed Manual Vent Control
-
"SmartFan" Fan Cycle: Yes
-
Discharge Grille: 2-position
-
Fan Motor: 1
-
Heating System: Electric Resistance
-
Cooling EER (BTUH / Watt): 10.4/10.5
-
Cooling BTUH (MAX): 12400.0 Btu
-
Cooling BTUH (MIN): 12200.0 Btu
-
Installation: Through-the-Wall
-
Color Appearance: White
-
Overall Depth: 20.9 in
-
Overall Height: 16 in
-
Overall Width: 42.4 in
-
Net Weight: 92 lb
-
Heating - Electric - Heater Watts: 3500
-
Cooling - Watts: 1190/1160
-
Cooling - Amperes: 6.1/5.8
-
Voltage (MAX): 230.0 V
-
Voltage (MIN): 208.0 V
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
Dehumidification (pts/hr): 2.85
-
CFMs: 530 / 600 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Electric Resistance Only
-
Cooling BTUs (@208V): 12200
-
EER (@208V): 10.5
-
Cooling Amps (@208V): 5.8
-
Cooling Watts (@208V): 1160
-
Electric Heat Strip Size (kW - @208V): 2.9
-
Electric Heating BTUs (@208V): 8900
-
Electric Heating Amps (@208V): 13.7
-
Electric Heating Watts (@208V): 2897
-
Cooling BTUs (@230V): 12400
-
EER (@230V): 10.4
-
Cooling Amps (@230V): 6.1
-
Cooling Watts (@230V): 1190
-
Electric Heat Strip Size (kW - @230V): 3.5
-
Electric Heating BTUs (@230V): 10900
-
Electric Heating Amps (@230V): 15.3
-
Electric Heating Watts (@230V): 3500
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-

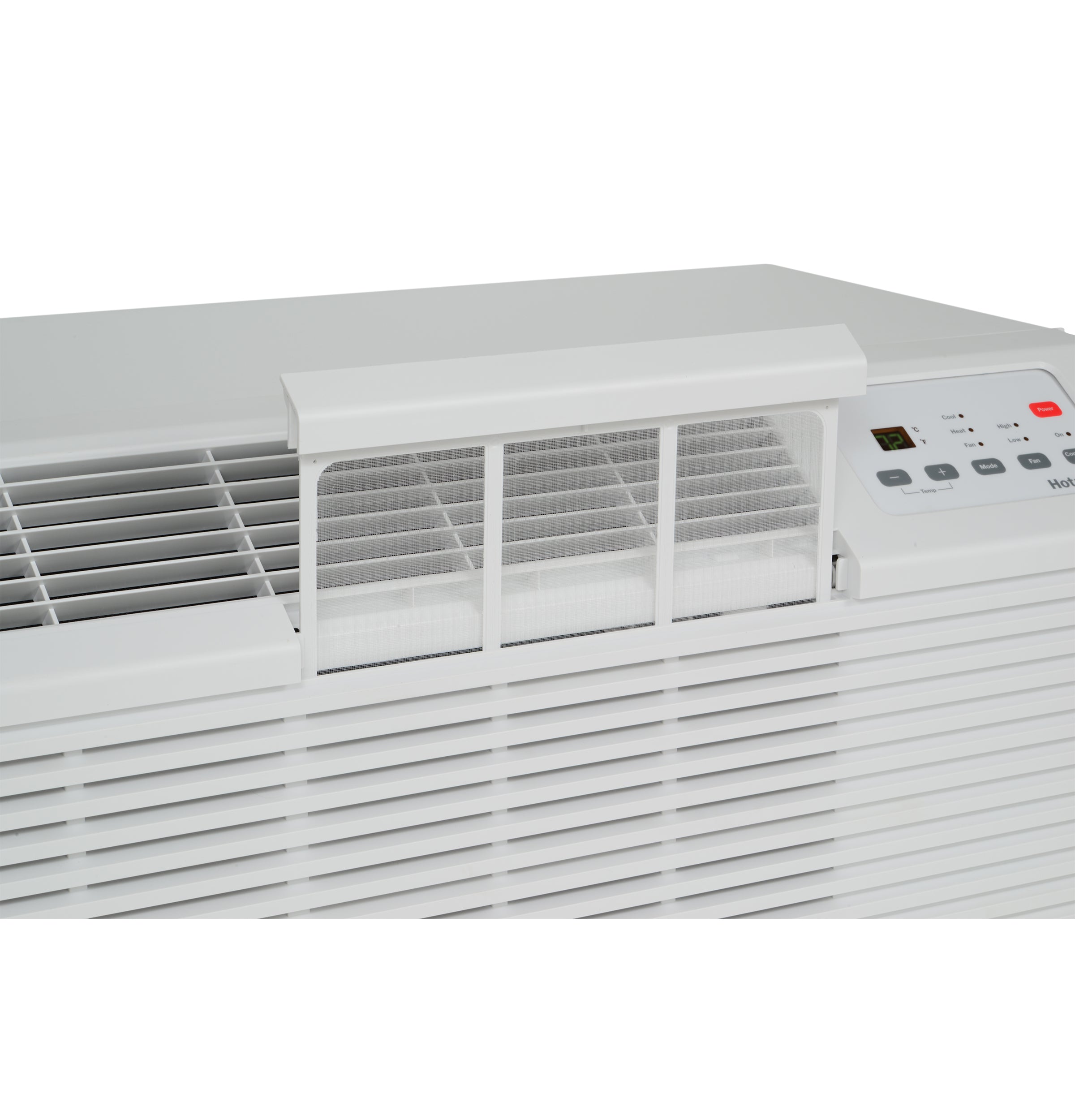

Filter Access: Rigid Frame; Slide-Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Certifications: UL / CUL / AHRI
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-20P
-
Circuit Breaker Size (Amps): 20
-
Cord Length: 6'
-
Air Conditioner Type: PTAC
-
Cooling BTU: 12,000 BTU
-
Machine Volts: 208/230
-
Machine Amps: 20 amp
-
Cord Included: Yes
-
Plug Type: NEMA 6-20
-

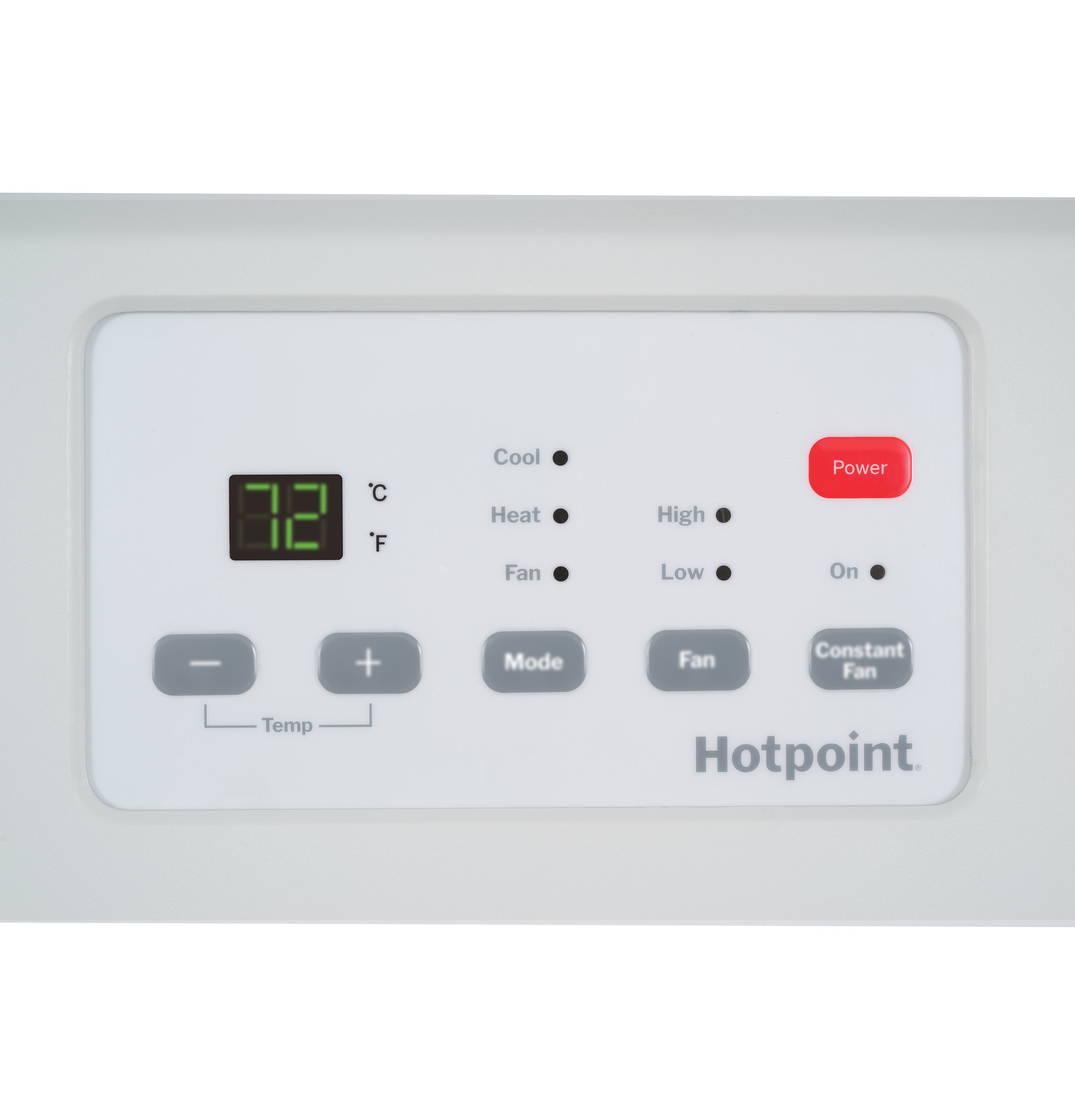

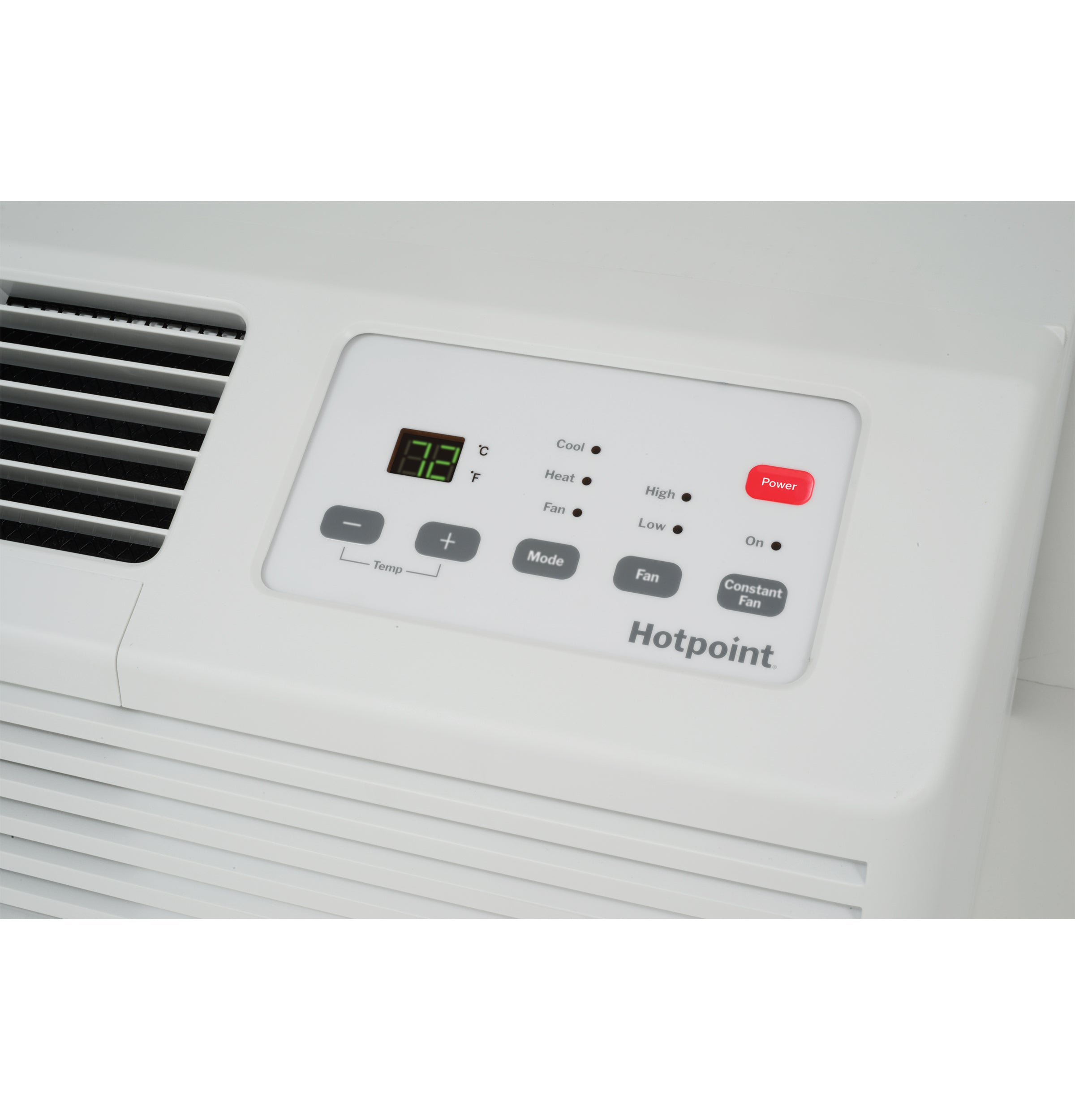

Controls: Electronic
-
Heat: Electric Heat
-
Heater Size (KW): 3.5 KW
-
Fits Standard 42" x 16" Sleeve: Yes
-
Automatic Restart: Yes
-
Seacoast Protection: No
-
Freeze Protection: Yes
-
Number of Fan Motors: 1
-
ADA Compliant: No
-
Energy Efficiency Rating (EER): 10.5
-
Sleeve Included: No
-
Exterior Grille Included: No
-
Maximum Cooling Watts: 1190
-
Maximum Cooling Amps: 6.1
-
Actual Cooling BTUs @ 208V: 12200
-
Actual Cooling BTUs @ 230V: 12400
