Product Description

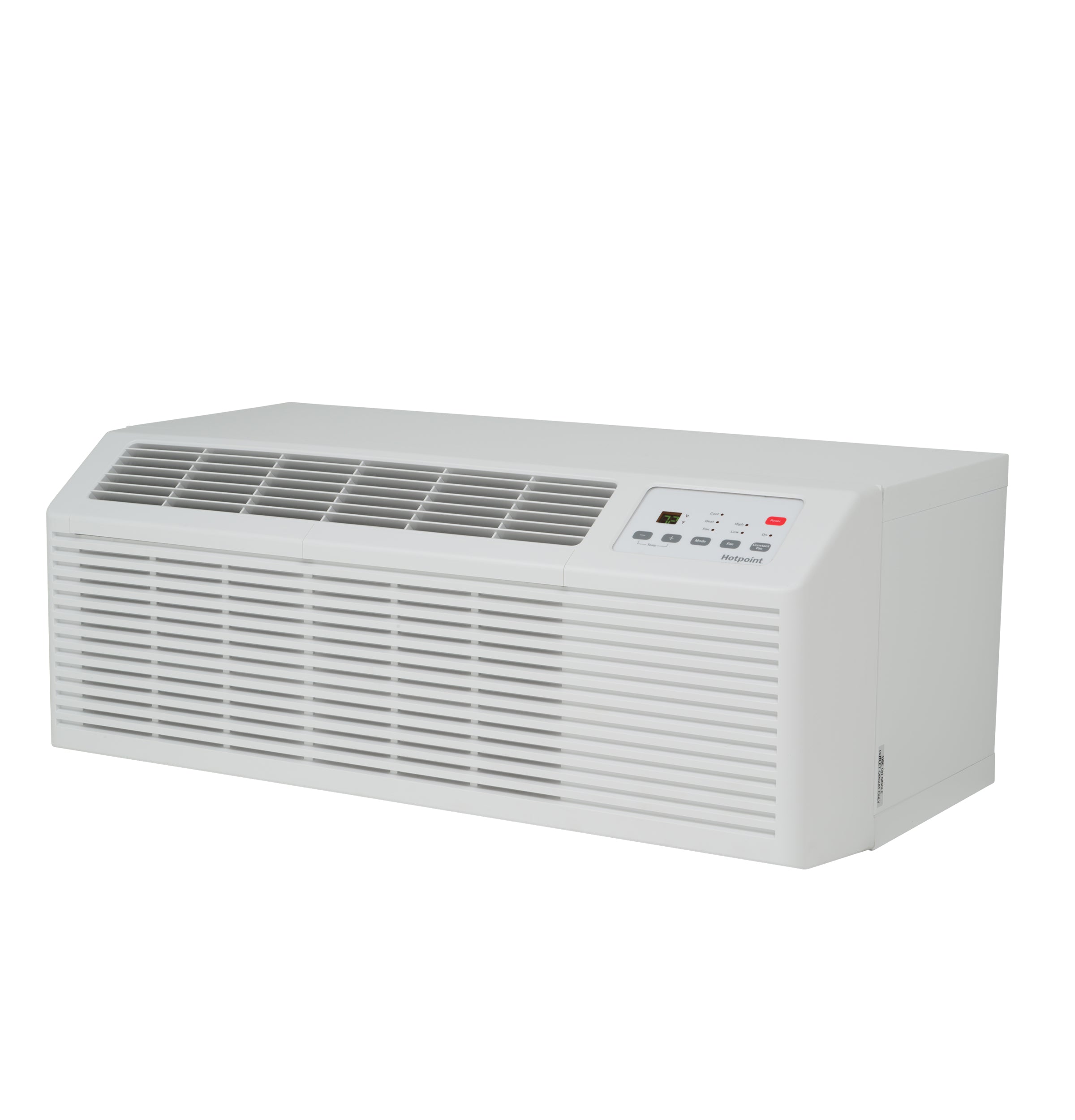

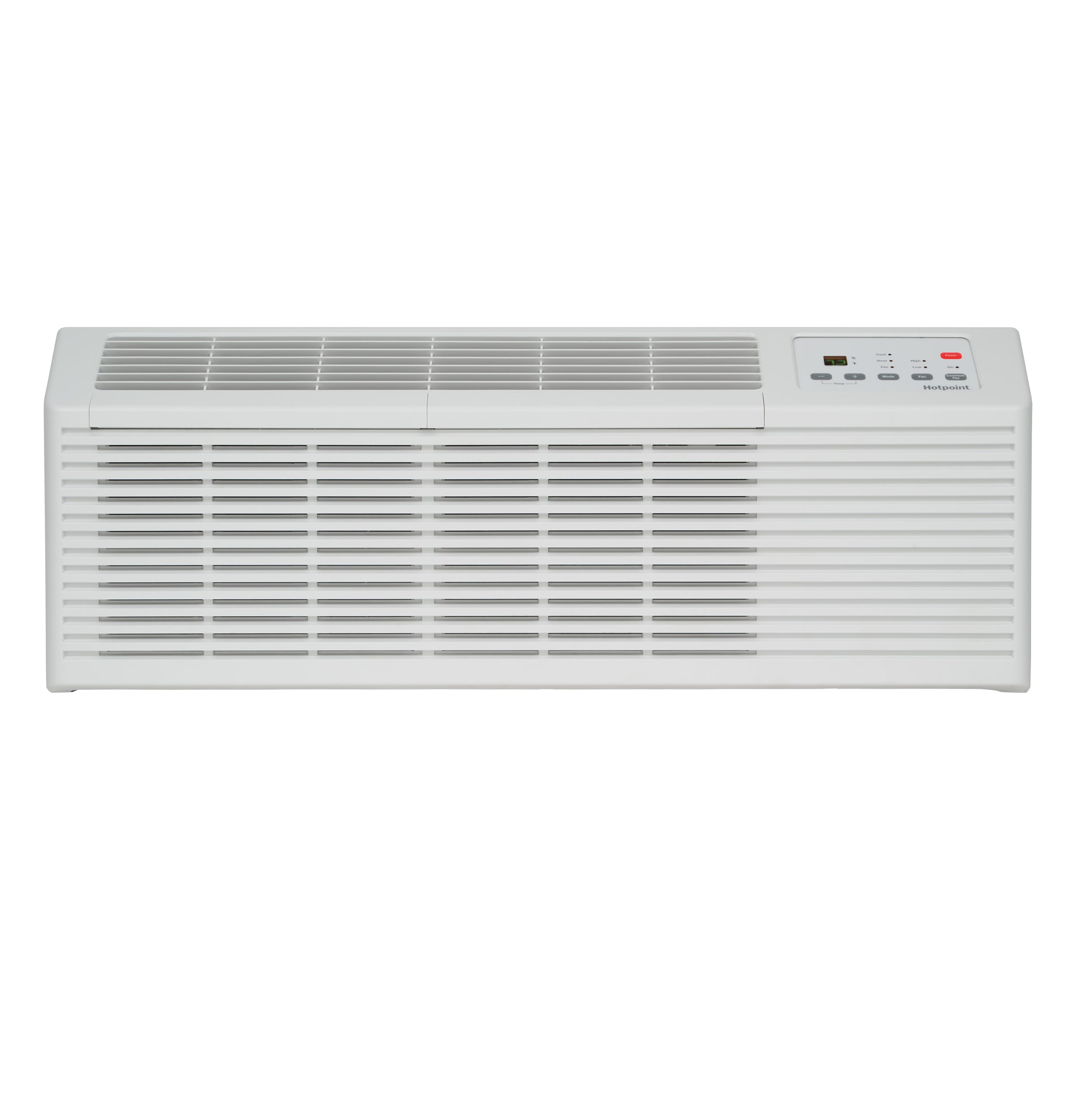

The HOTPOINT AHES09D3XXA PTAC with Electric Heat is a packaged terminal air conditioner with a cooling capacity between 9200 and 9400 BTU and operates at 230/208V with a 20amp requirement. It features 2 fan speeds and 4 temperature-limiting options. Additional features include auto-dimming display and slinger ring condensate removal. The unit uses R32 refrigerant.
- Features 2 fan speeds for customized comfort.
- Offers 4 temperature-limiting options for efficiency.
- Includes automatic emergency heat for consistent warmth.
Product Highlights
This PTAC unit provides efficient cooling and heating with user-friendly features and automatic protections.
Product Information
Standard Information
-
Brand: HOTPOINT
-
Manufacturer Part Number: AHES09D3XXA
Technical Specifications
-

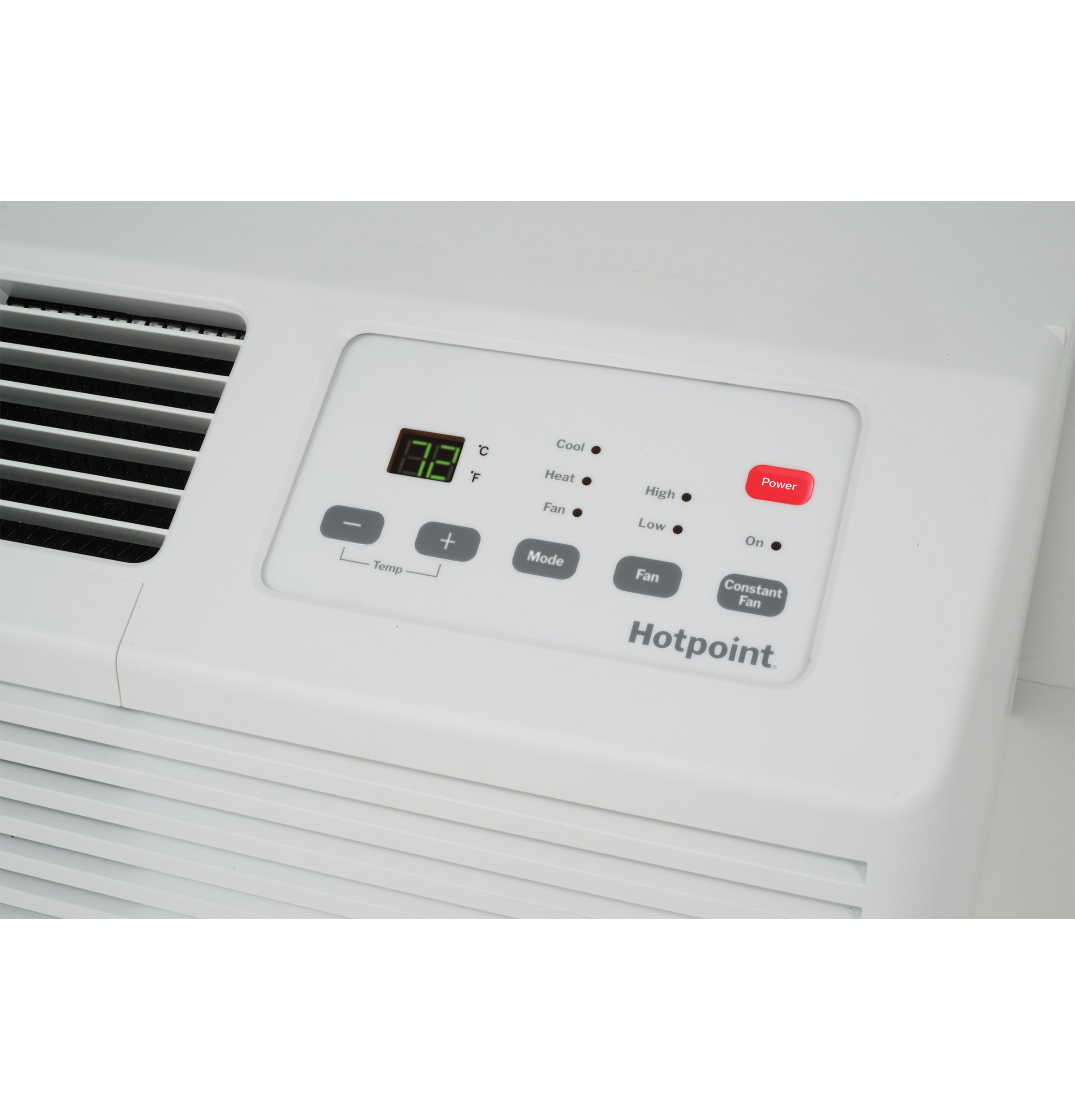

Control Type: Electronic
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Type: R32
-
Temperature Range: 62 - 80 F
-
Fan Speed Selections: 2 Cooling
2 Fan Only
2 Heating
-
Unit Features: Auto Power Recovery
Automatic Indoor Frost Control
Freeze Sentinel
Power Cord (LCDI) included

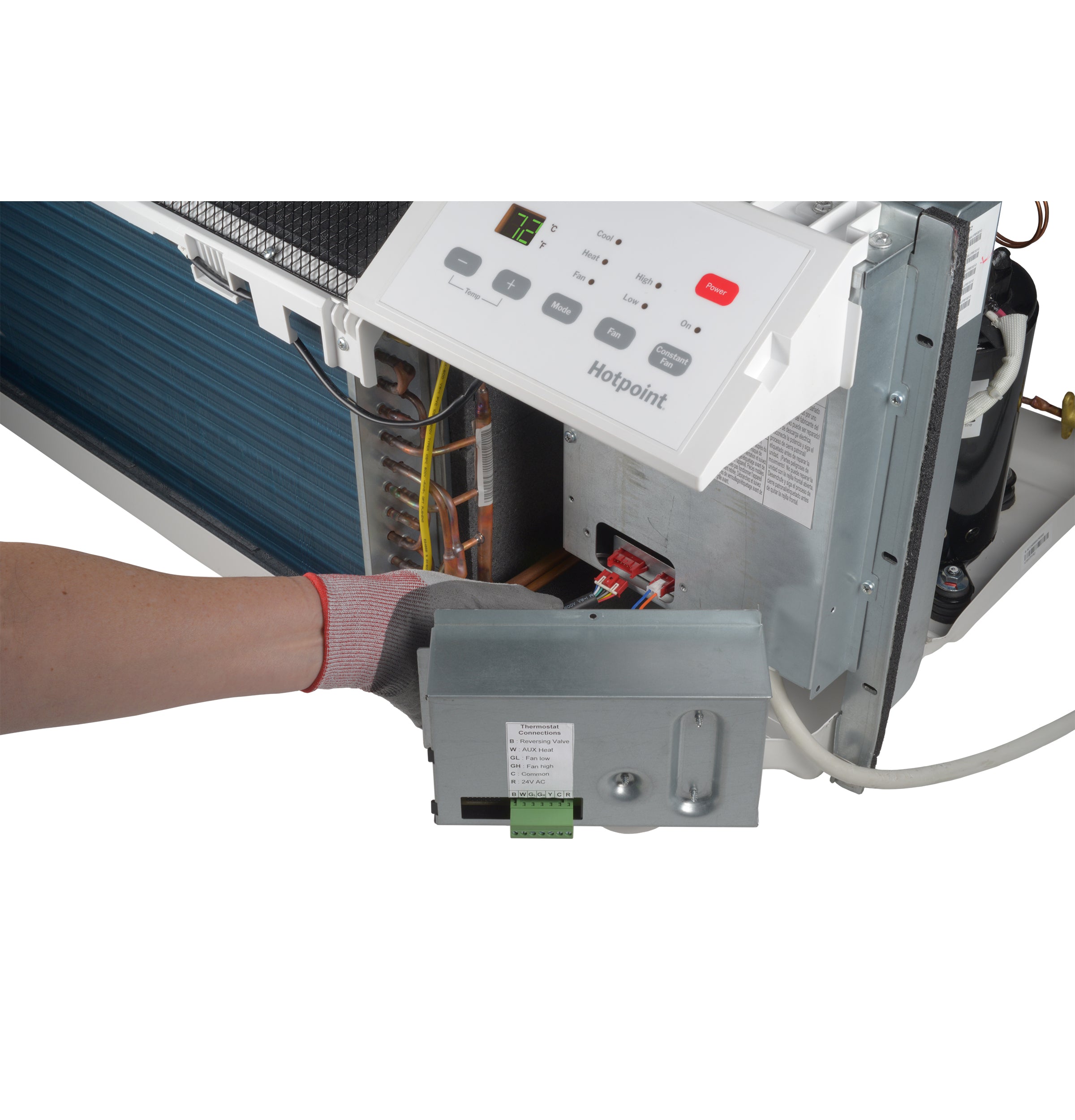

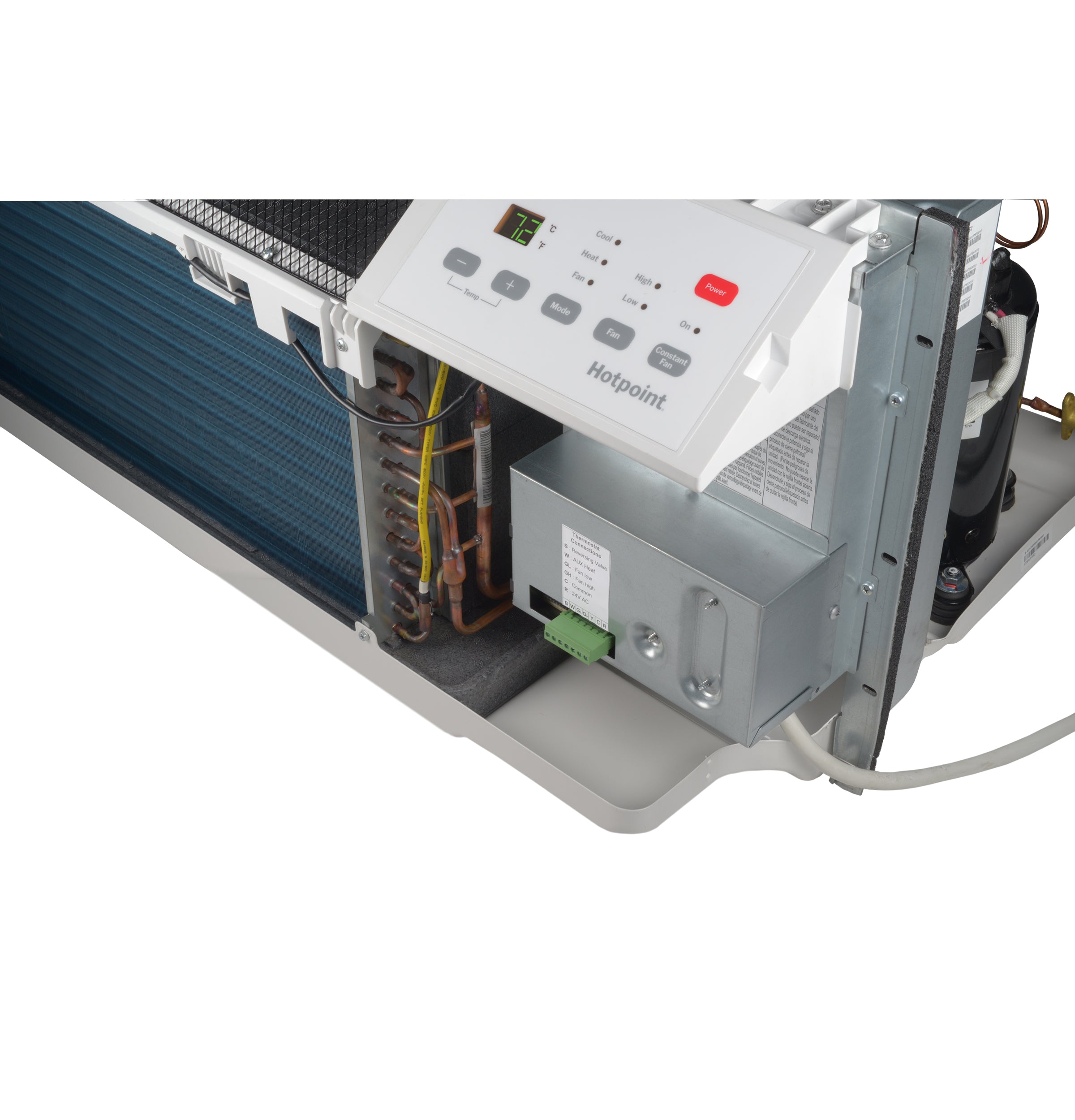

Remote Thermostat Compatibility (Accessory Kit Required)
-
Chassis Type: Slide-In
-
Heat - Cool: Yes
-
Manual Vent Control: Hidden
-
Outdoor Vent / Exhaust: Yes
-
Rotary Compressor: Yes
-
Venting Features: Concealed Manual Vent Control
-
"SmartFan" Fan Cycle: Yes
-
Discharge Grille: 2-position
-
Fan Motor: 1
-
Heating System: Electric Resistance
-
Cooling EER (BTUH / Watt): 11.3/11.4
-
Cooling BTUH (MAX): 9400.0 Btu
-
Cooling BTUH (MIN): 9200.0 Btu
-
Installation: Through-the-Wall
-
Color Appearance: White
-
Overall Depth: 20.9 in
-
Overall Height: 16 in
-
Overall Width: 42.4 in
-
Net Weight: 84 lb
-
Heating - Electric - Heater Watts: 3500
-
Cooling - Watts: 830/805
-
Cooling - Amperes: 4.0/3.8
-
Voltage (MAX): 230.0 V
-
Voltage (MIN): 208.0 V
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
Dehumidification (pts/hr): 1.86
-
CFMs: 420 / 500 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Electric Resistance Only
-
Cooling BTUs (@208V): 9200
-
EER (@208V): 11.4
-
Cooling Amps (@208V): 3.8
-
Cooling Watts (@208V): 805
-
Electric Heat Strip Size (kW - @208V): 2.9
-
Electric Heating BTUs (@208V): 8900
-
Electric Heating Amps (@208V): 13.7
-
Electric Heating Watts (@208V): 2897
-
Electric Heat Strip Size (kW - @230V): 3.5
-
Electric Heating BTUs (@230V): 10900
-
Electric Heating Amps (@230V): 15.3
-
Electric Heating Watts (@230V): 3500
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Filter Access: Rigid Frame; Slide-Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Certifications: UL / CUL / AHRI
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-20P
-
Circuit Breaker Size (Amps): 20
-
Cord Length: 6'
-
Airflow (CFM): 500/420
-
Electric Heating Capacity (kw): 3.5
-
Sensible Heat Ratio: 79
-
Refrigerant Charge (Oz): 13.76
