Product Description

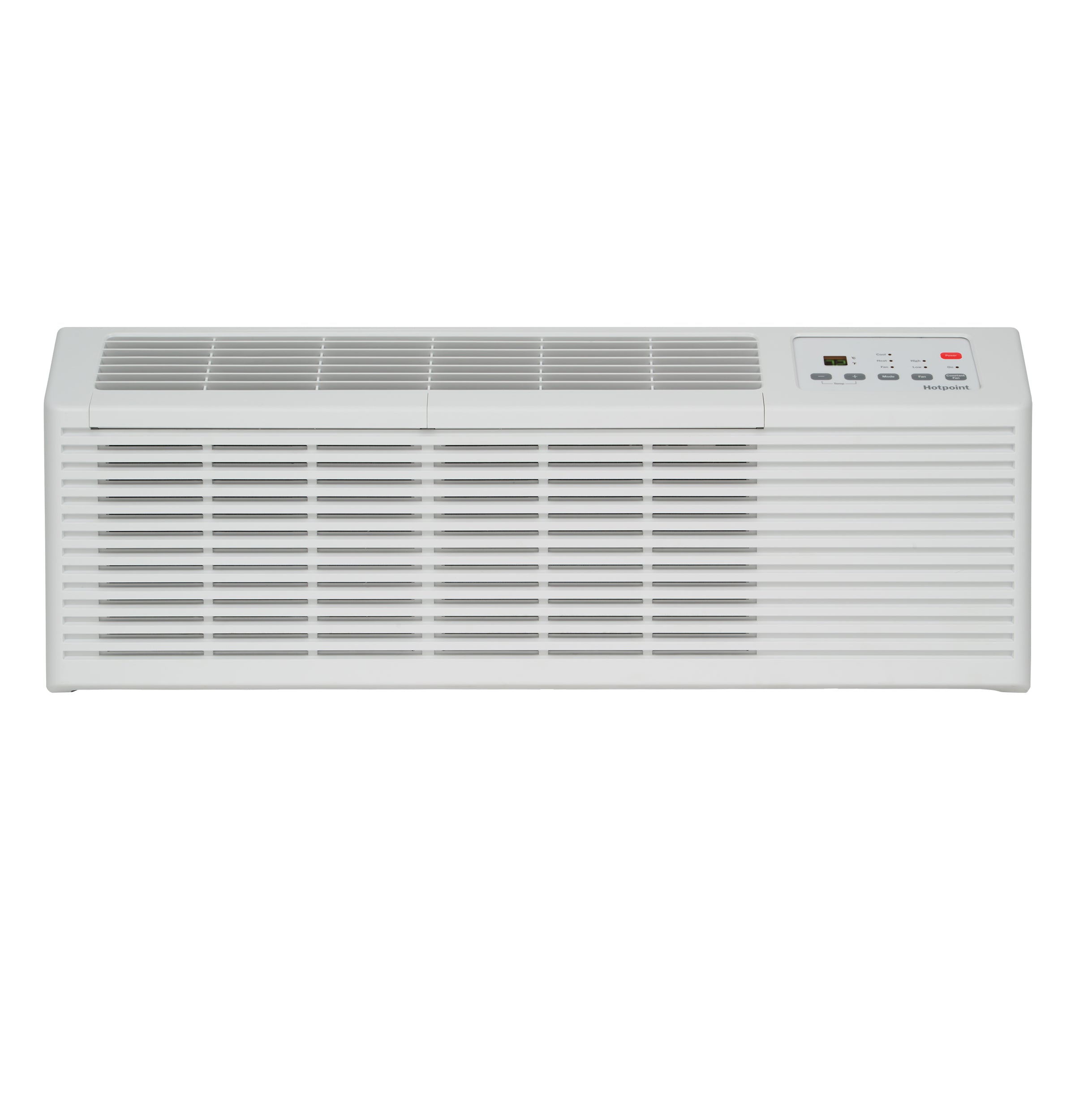

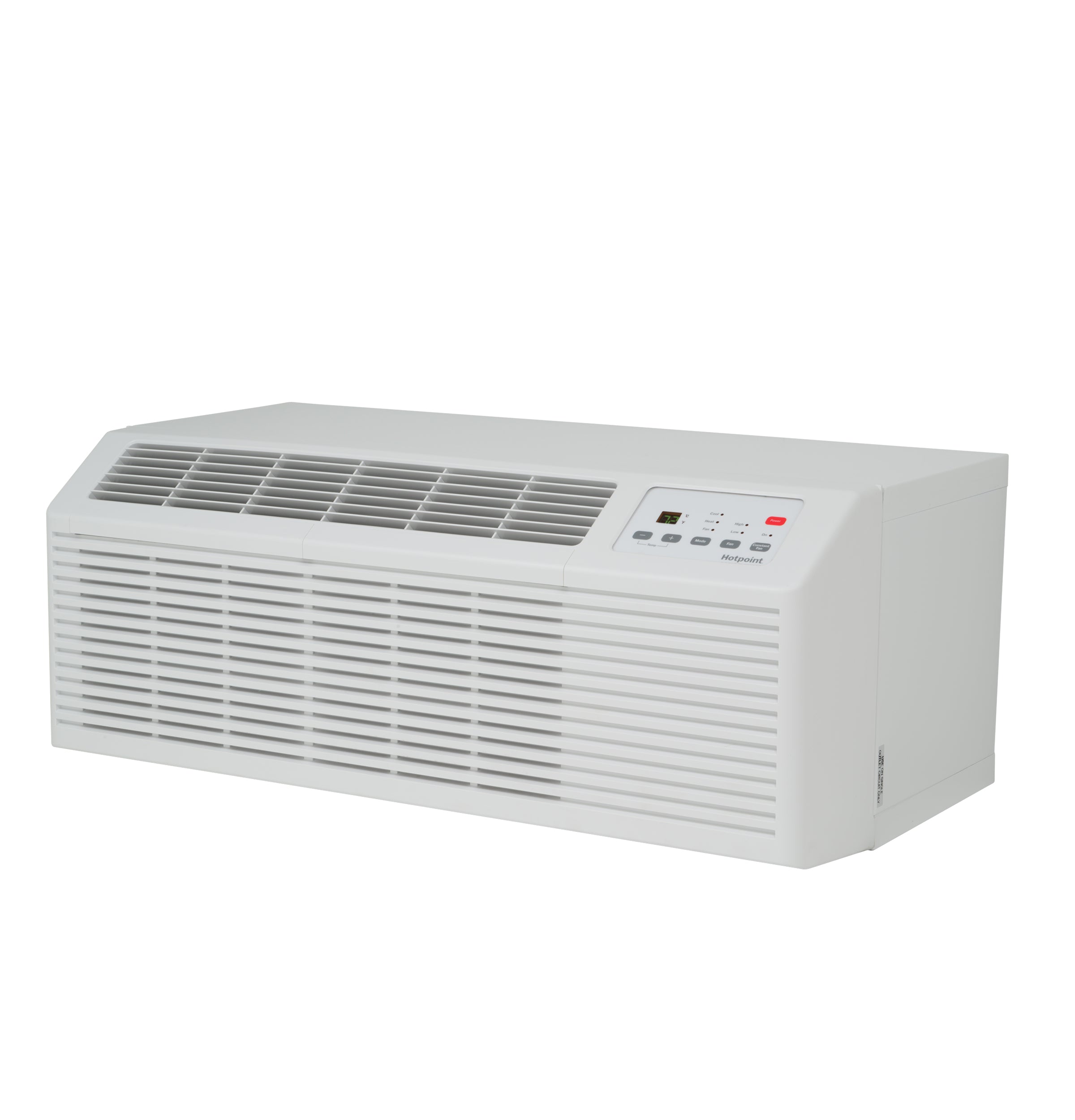

The Hotpoint AHES07D3XXA PTAC with Electric Heat delivers 7,000 BTU and operates at 230/208V with 20 amps. It features 2 fan speeds and 4 temperature-limiting options. Additional features include auto-dimming display, slinger ring condensate removal, and a coverless control panel. It also offers automatic emergency heat and freeze/frost & overheat protection.
- Features 2 Fan Speeds
- Offers 4 Temperature-Limiting Options
- Includes Auto Dimming Display
Product Highlights
This PTAC unit provides efficient cooling and heating with user-friendly features and reliable performance.
Product Information
Standard Information
-
Brand: HOTPOINT
-
Manufacturer Part Number: AHES07D3XXA
Technical Specifications
-

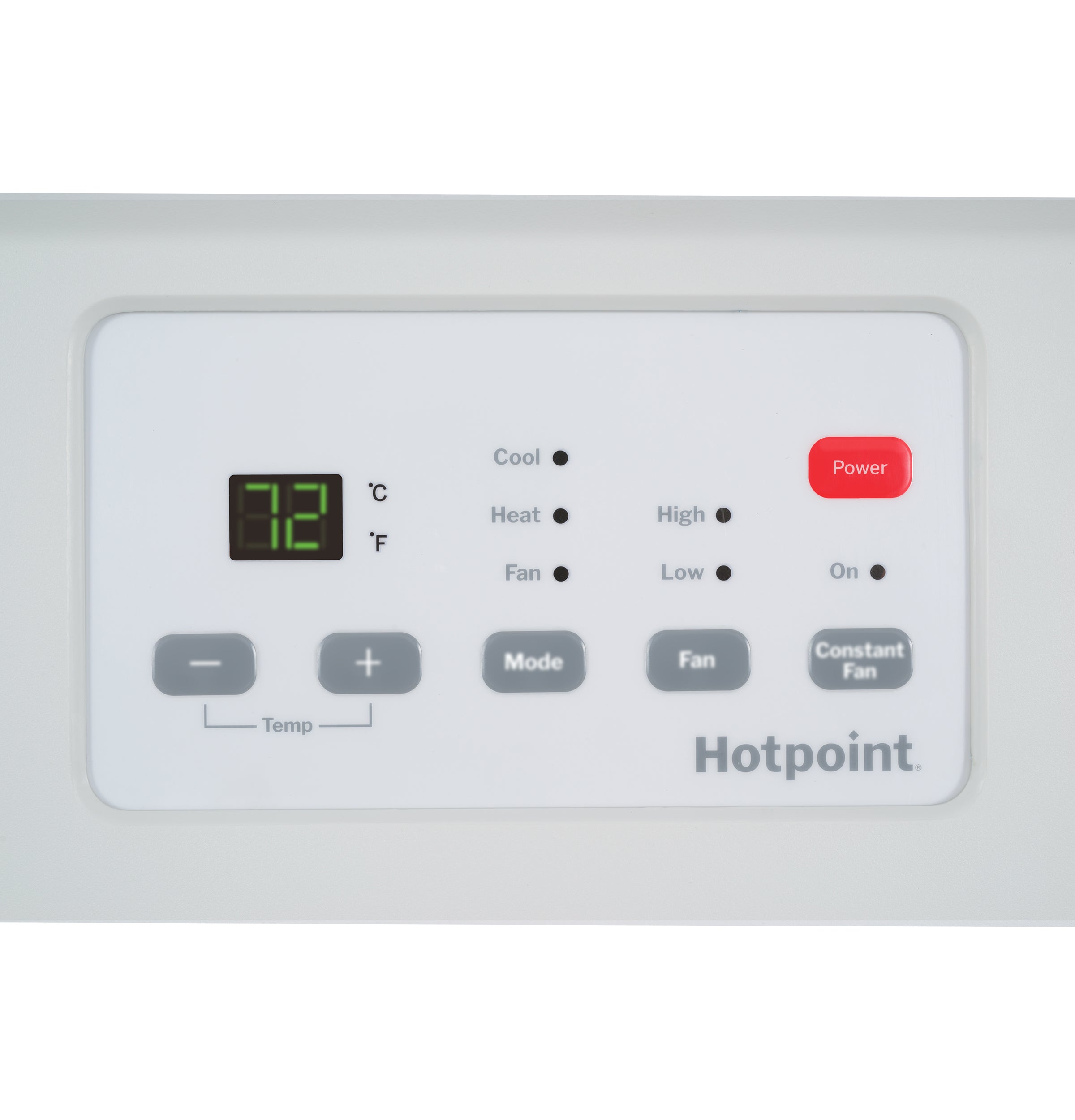

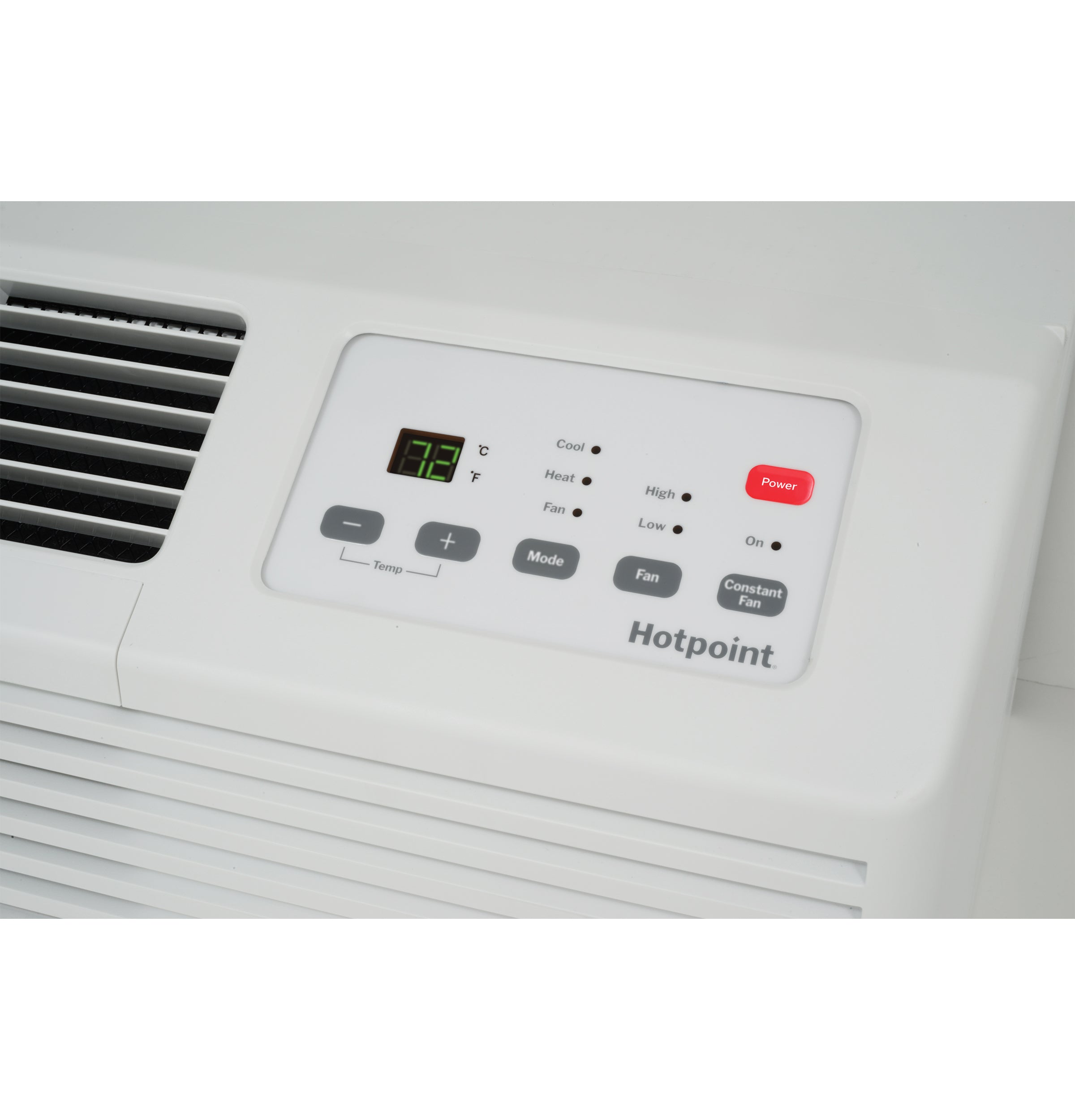

Control Type: Electronic
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Type: R32
-
Temperature Range: 62 - 80 F
-
Fan Speed Selections: 2 Cooling, 2 Fan Only, 2 Heating
-
Unit Features: Auto Power Recovery, Automatic Indoor Frost Control, Freeze Sentinel, Power Cord (LCDI) included, Remote Thermostat Compatibility (Accessory Kit Required)
-
Auto Power Recovery: Yes
-
Chassis Type: Slide-In
-
Heat - Cool: Yes
-
Manual Vent Control: Hidden
-
Outdoor Vent / Exhaust: Yes
-
Rotary Compressor: Yes
-
Venting Features: Concealed Manual Vent Control
-
SmartFan" Fan Cycle: Yes
-
Discharge Grille: 2-position
-
Fan Motor: 1
-
Heating System: Electric Resistance
-
Cooling EER (BTUH / Watt): 12.0/12.1
-
Cooling BTUH (MAX): 7200.0 Btu
-
Cooling BTUH (MIN): 7000.0 Btu
-
Installation: Through-the-Wall
-
Overall Depth: 20.9 in
-
Overall Height: 16 in
-
Overall Width: 42.4 in
-
Net Weight: 79 lb
-
Heating - Electric - Heater Watts: 3500
-
Cooling - Watts: 600/575
-
Cooling - Amperes: 2.6/2.8
-
Voltage (MAX): 230.0 V
-
Voltage (MIN): 208.0 V
-
Brand: Hotpoint
-
Type: Cooling With Resistance Heat
-
Cooling BTU: 7000
-
Voltage: 208/230V
-
AMPS: 20A
-
EER: 11.9
-
COP: N/A
-
Reverse Cycle BTU: N/A
-
Modes: HEAT/COOL
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Auto Restart: YES
-
Digital Controls: YES
-
Front Desk Connection: YES
-
Temprature Limiting: YES
-
Freeze Protection: YES
-
Sea Coast Protection: NO
-
Wall Sleeve Dimensions: 42"W X 16"H X 13-3/4"D
-
Manufacturer: Hotpoint
-
Manufacturer Sku: AHES07D3XXA
-
Condition: New
-
Machine Volts: 208/230
-
Machine Amps: 20 amp
-
Cord Included: Yes
-
Plug Type: NEMA 6-20
-
Heat: Electric Heat
-
Heater Size (KW): 3.5 KW
-
Fits Standard 42" x 16" Sleeve: Yes
-
Energy Star Certified: No
-
Remote Control: No
-
Number of Fan Motors: 1
-
Fan Speeds: 3
-
ADA Compliant: No
-
Energy Efficiency Rating (EER): 12.1
-
Sleeve Included: No
-
Exterior Grille Included: No
-
Maximum Cooling Watts: 600
-
Maximum Cooling Amps: 2.8
-
Actual Cooling BTUs @ 208V: 7000
-
Actual Cooling BTUs @ 230V: 7200
-
4Less California Compliance: Yes
