Product Description

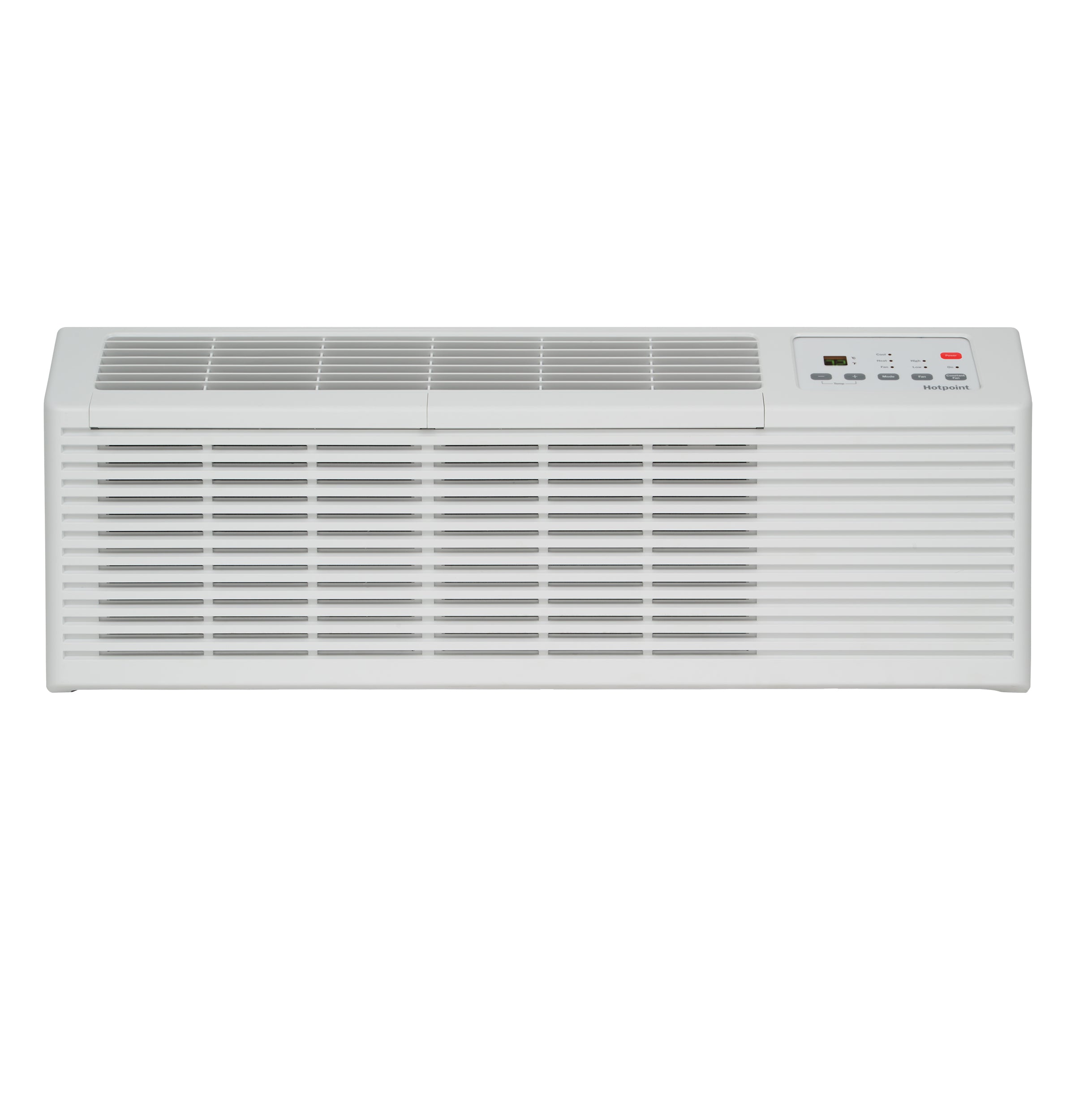

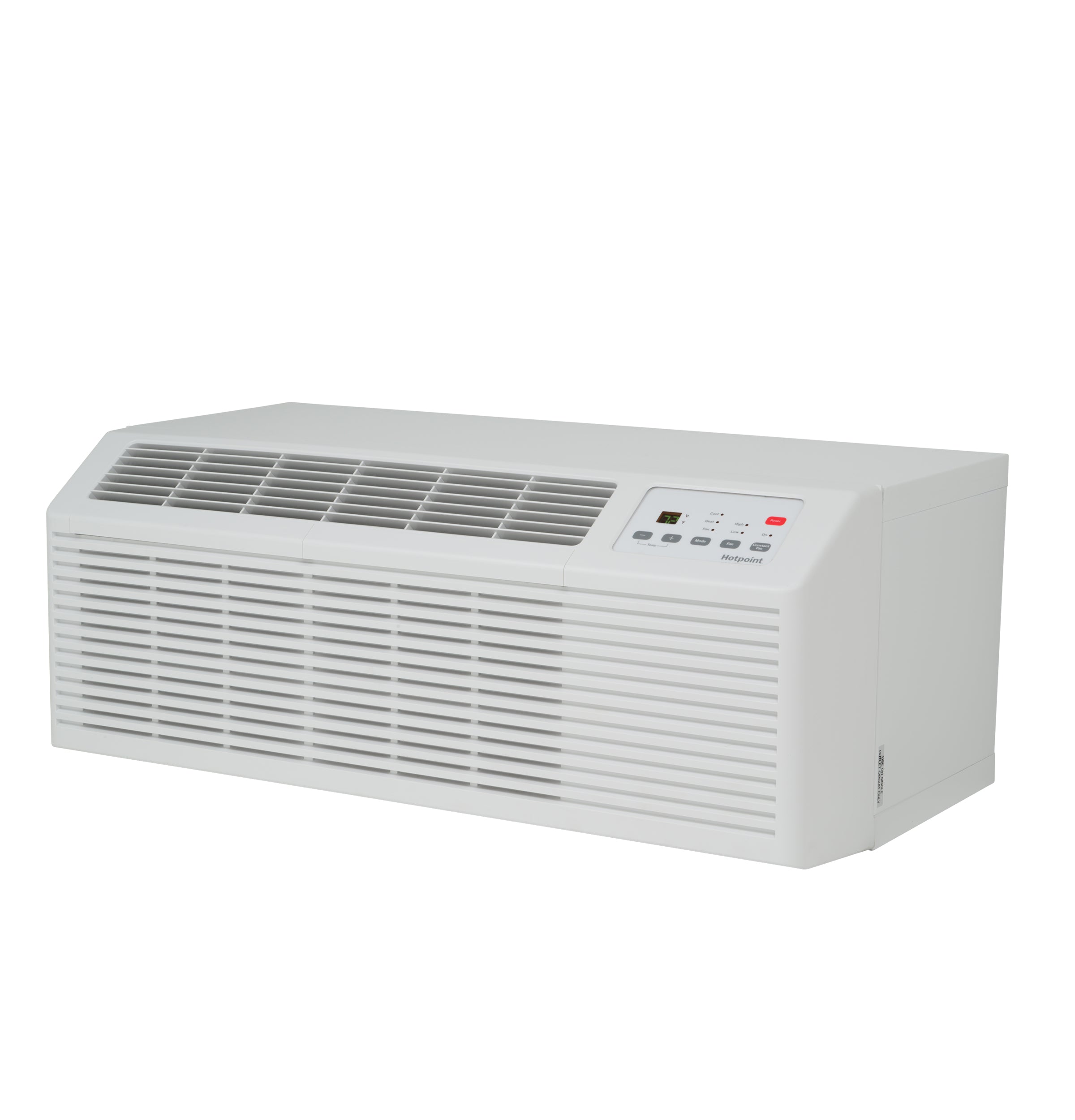

The HOTPOINT AHES07D2XXA PTAC (Packaged Terminal Air Conditioner) features electric heat, a 7,000 BTU cooling capacity, and operates on 230/208V, requiring a 15amp circuit. It efficiently conditions interior air by heating or cooling and circulating it. Ideal for spaces needing both cooling in warm weather and heating in cold temperatures.
- Offers 2 fan speeds and 4 temperature-limiting options.
- Includes auto dimming display and slinger ring condensate removal.
- Provides freeze/frost and overheat protection with auto power recovery.
Product Highlights
This PTAC unit combines cooling and electric heat for year-round comfort, with user-friendly features and reliable performance.
Product Information
Standard Information
-
Brand: HOTPOINT
-
Manufacturer Part Number: AHES07D2XXA
-
Country of Origin: Thailand
Technical Specifications
-

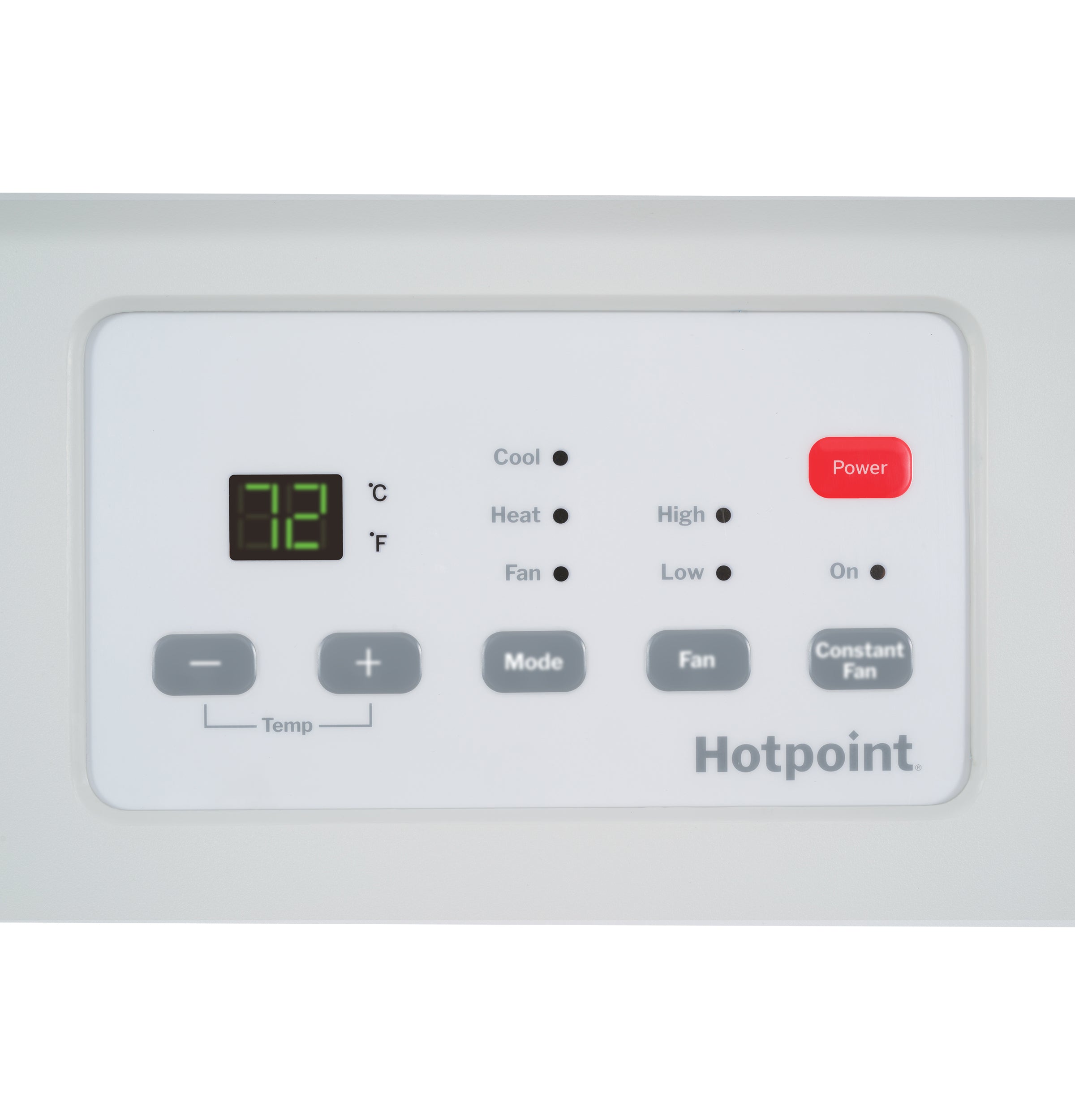

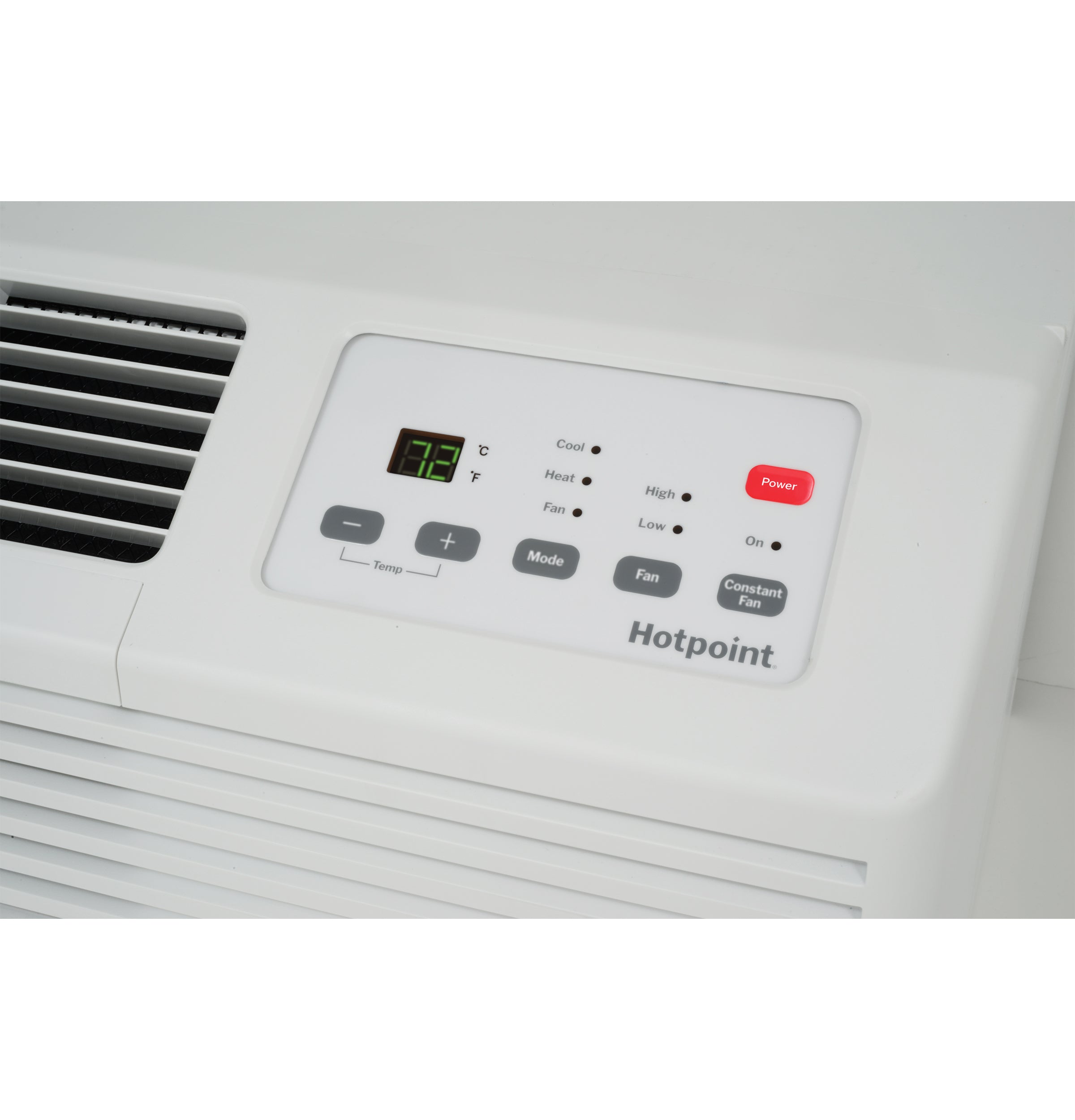

Control Type: Electronic
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Type: R32
-
Temperature Range: 62 - 80 F
-
Fan Speed Selections: 2 Cooling, 2 Fan Only, 2 Heating
-
Unit Features: Auto Power Recovery, Automatic Indoor Frost Control, Freeze Sentinel, Power Cord (LCDI) included, Remote Thermostat Compatibility (Accessory Kit Required)
-
Auto Power Recovery: Yes
-
Chassis Type: Slide-In
-
Heat - Cool: Yes
-
Manual Vent Control: Hidden
-
Outdoor Vent / Exhaust: Yes
-
Rotary Compressor: Yes
-
Venting Features: Concealed Manual Vent Control
-
"SmartFan" Fan Cycle: Yes
-
Discharge Grille: 2-position
-
Fan Motor: 1
-
Heating System: Electric Resistance
-
Cooling EER (BTUH / Watt): 12.0/12.1
-
Cooling BTUH (MAX): 7200.0 Btu
-
Cooling BTUH (MIN): 7000.0 Btu
-
Installation: Through-the-Wall
-
Overall Depth: 20.9 in
-
Overall Height: 16 in
-
Overall Width: 42.4 in
-
Heating - Electric - Heater Watts: 2500
-
Cooling - Watts: 600/575
-
Cooling - Amperes: 2.6/2.8
-
Voltage (MAX): 230.0 V
-
Voltage (MIN): 208.0 V
-
Cooling BTU: 7000
-
Voltage: 208/230V AC
-
AMPS: 15A
-
EER: 11.9
-
COP: N/A
-
Reverse Cycle BTU: N/A
-
Modes: HEAT/COOL
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Auto Restart: YES
-
Digital Controls: YES
-
Front Desk Connection: YES
-
Temprature Limiting: YES
-
Freeze Protection: YES
-
Sea Coast Protection: NO
-
Wall Sleeve Dimensions: 42"W X 16"H X 13-3/4"D
-

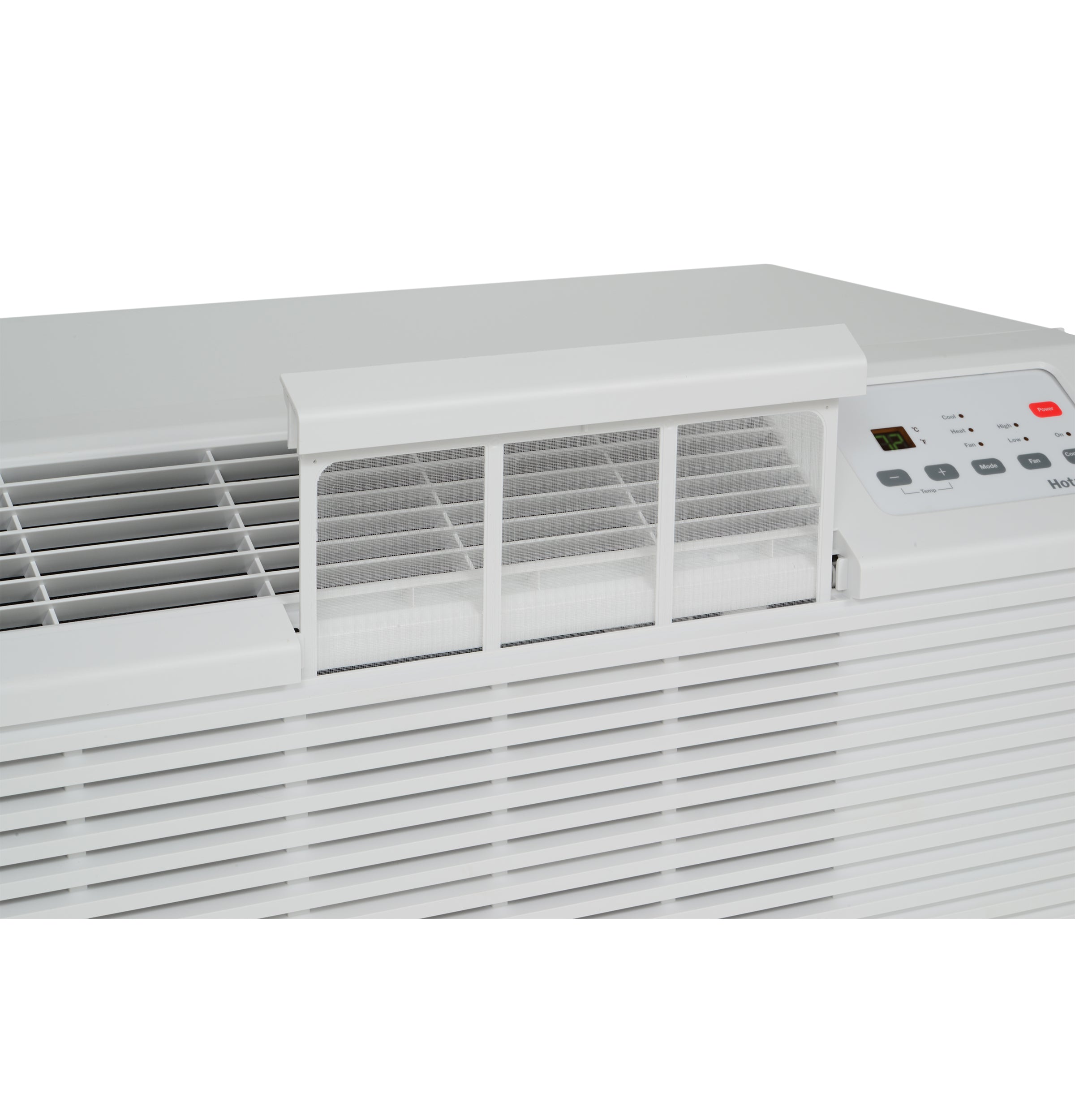

Air Filtration: Air Filtering
-
Airflow: 400 cfm; 480 cfm
-
Airflow Type: Fixed
-
Minimum Average Coverage Area: 250 sq ft
-
Maximum Average Coverage Area: 300 sq ft
-
Compatible Wall Sleeve Manufacturer Model Number: RAB42MW
-
Compressor Technology: Fixed Output (Standard)
-
Compressor Type: Rotary
-
Control Location: Handheld Remote
-
Maximum Cooling Capacity: 7,200 BtuH
-
Maximum Electric Heating Capacity: 8,525 BtuH
-
For Sleeve Depth: 13.75 in
-
For Sleeve Height: 16 in
-
For Sleeve Width: 42 in
-
Heating Method: Electric Heat
-
Hz: 60 Hz
-
Includes Air Filter: Air Filter Included
-
Includes Wall Sleeve: Sleeve Included
-
NEMA Plug Configuration: 6-15P
-
Number of Speeds: 2
-
Operation Mode: Cooling/Heating
-
Outside Make-Up Air: Not Make-Up Capable
-
Phase: Single
-
Plug Current Protection: LCDI
-
Power Cord Length: 72 in
-
Power Source: Plug-In
-
Programming Capability: Programmable with Optional Thermostat
-
Refrigerant Precharge: 12.35 oz
-
Remote Control Functions: No Remote Control
-
Seacoast Corrosion Protection: No Protection
-
Smart Connectivity: No Connectivity
