White-Rodgers 767A-378 Silicon Carbide Hot Surface Ignitor 120V

Product Description

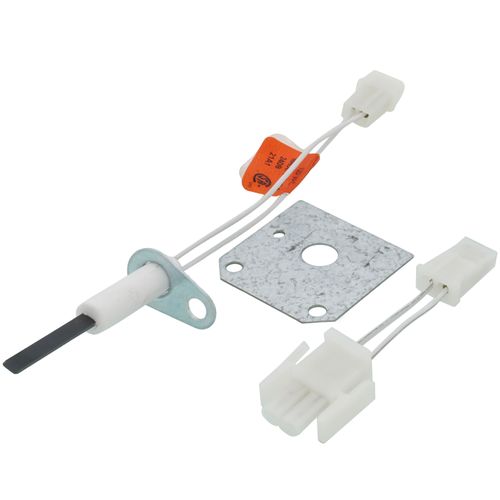

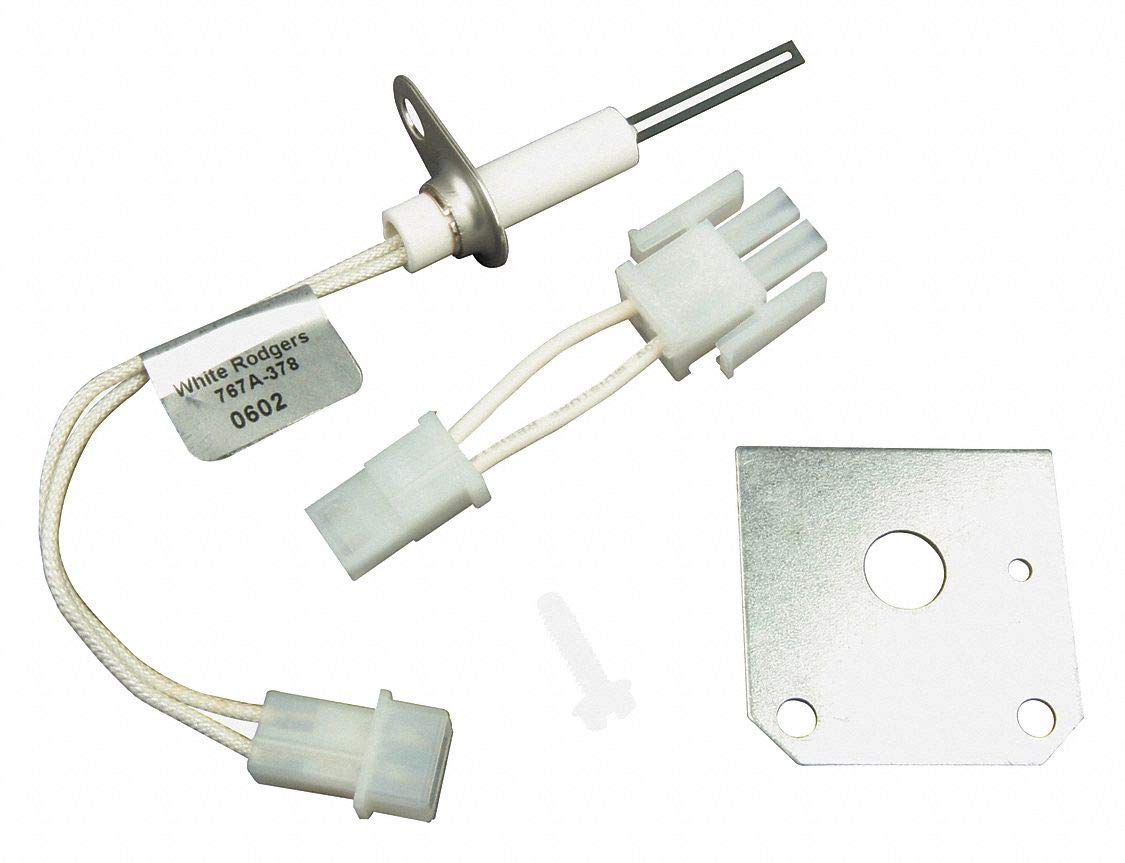

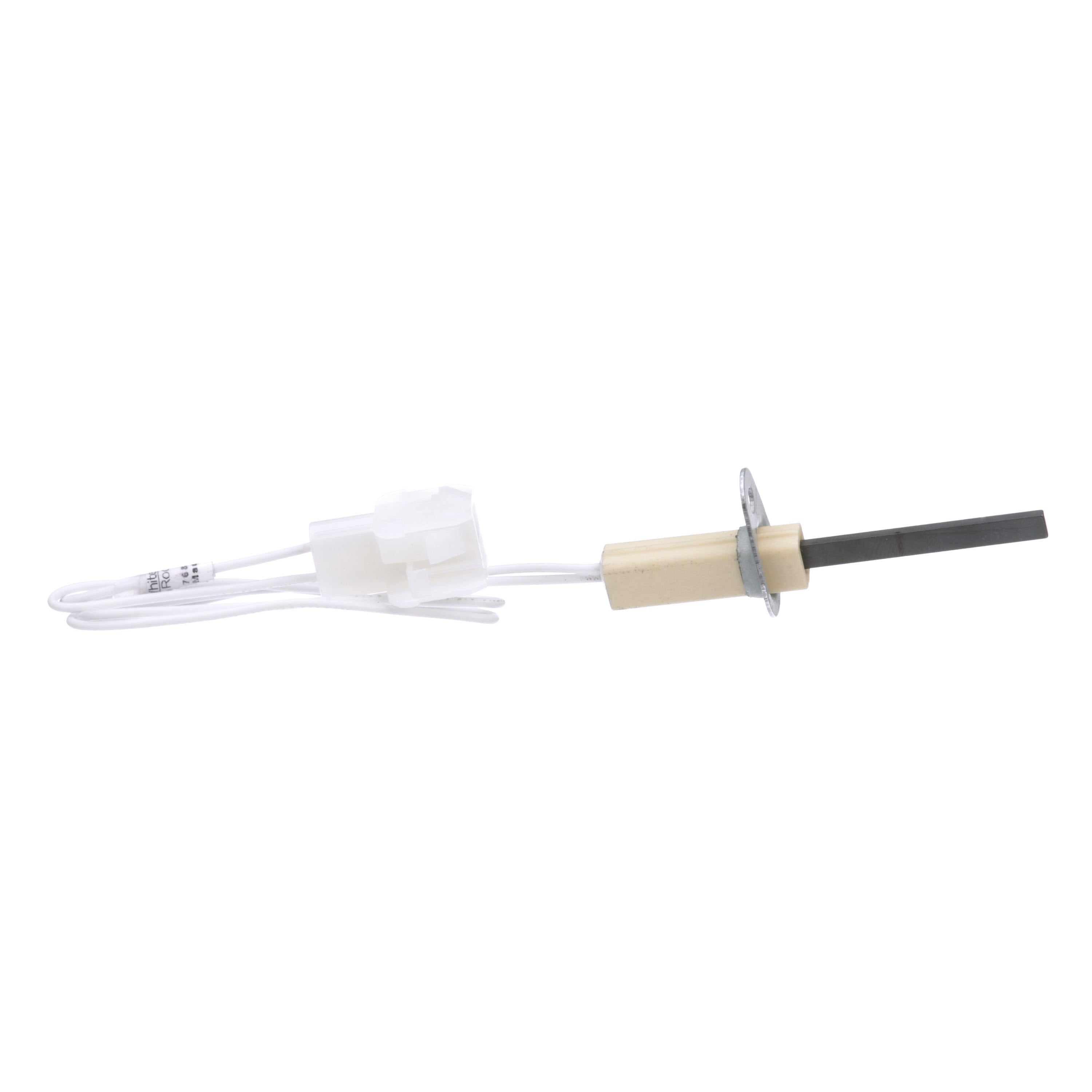

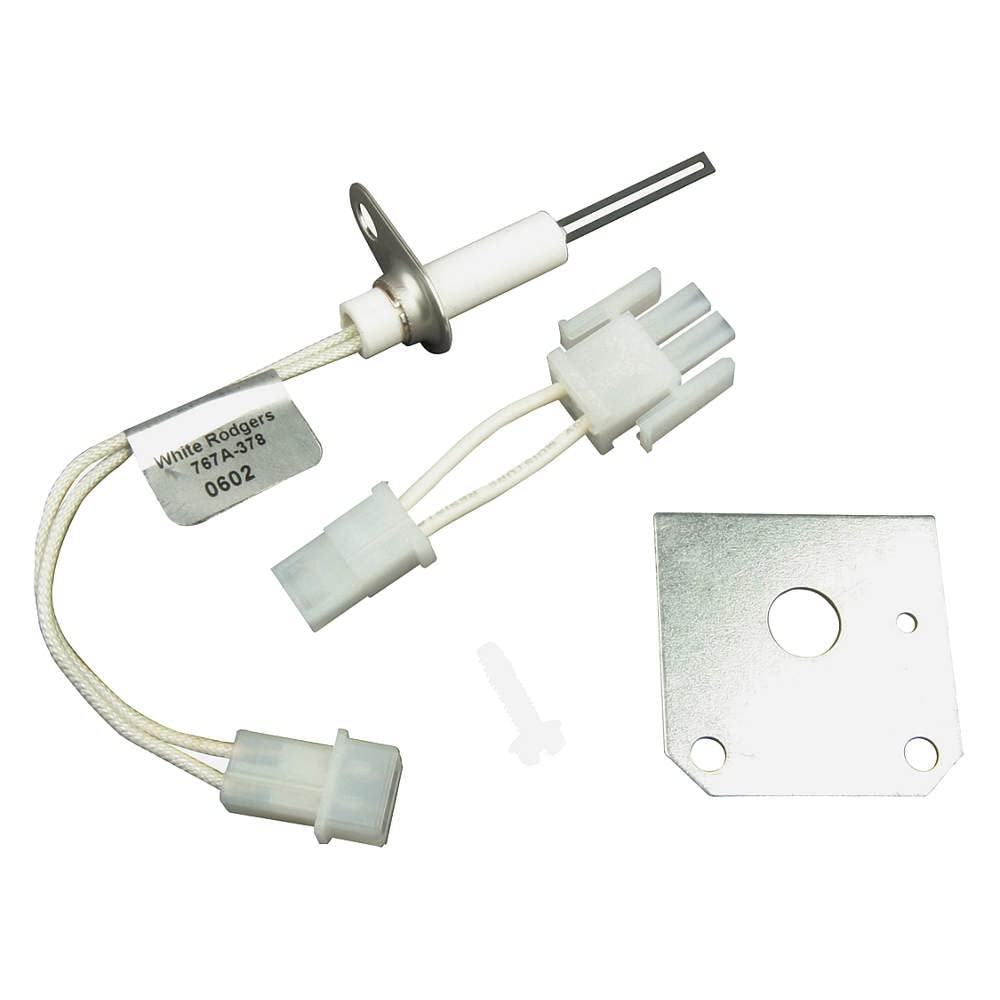

The WHITE-RODGERS 767A-378 is a silicon carbide hot surface ignitor designed for reliable ignition in various industrial applications. It operates at 120V and is suitable for use with LP/NG gas types. The ignitor includes 5-1/8" leads with a connector, mounting bracket, screws, and a harness connector. It is CSA certified and works with 15, 17, or 45-second hot surface ignition systems.

• Reliable ignition for industrial applications
• Includes 5-1/8" leads with connector, mounting bracket, screws, and harness connector
• Suitable for LP/NG gas types

Product Highlights

This silicon carbide hot surface ignitor provides a reliable ignition source for furnaces, boilers, and other heating equipment.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 767A-378
• Country of Origin: United States

Technical Specifications

• Item Model Number: 767A-378
• Voltage: 120 Volts
• Type: Silicon Carbide Hot Surface Igniter
• Length (In.): 5.25
• Gas Type: LP/NG
• Includes: 5-1/8" Leads with Connector, Mounting Bracket, Screws and Harness Connector
• Lead Length: 5.125 Inch
• Voltage Rating: 120 Volt AC 60 Hertz
• Temperature Rating: 200 Deg C (Lead Insulation)
• Approval: CSA
• Fuel Type: Liquefied Petroleum Gas, Natural Gas
• Lead Wire Length: 5.125 in
• Material: Silicon Carbide
• Amps: 0.2-1.4
• Input Voltage: 120V AC
• Probe Length: 1 in
• Electrical Connection Type: Plug-In
• For Fuel Type: LP; Natural Gas
• Replacement for OEM Brand: Amana; Robertshaw
• Replacement for OEM Part Number: 20165702; 41-602
• Maximum Lead Wire Insulation Temperature: 392 °F
• Overall Length: 5.125 in
• Standards: CSA Certified
