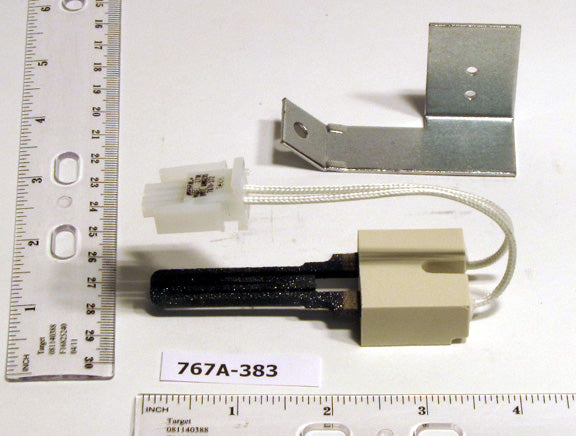

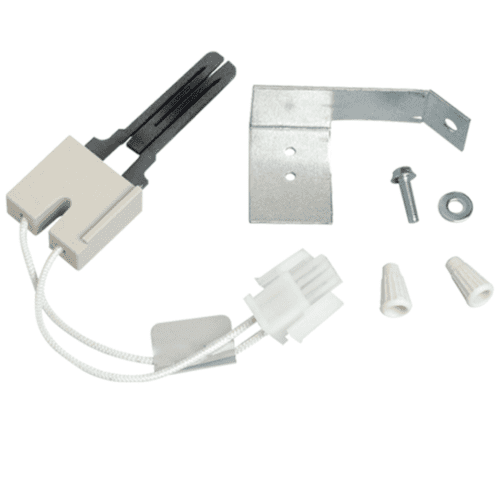

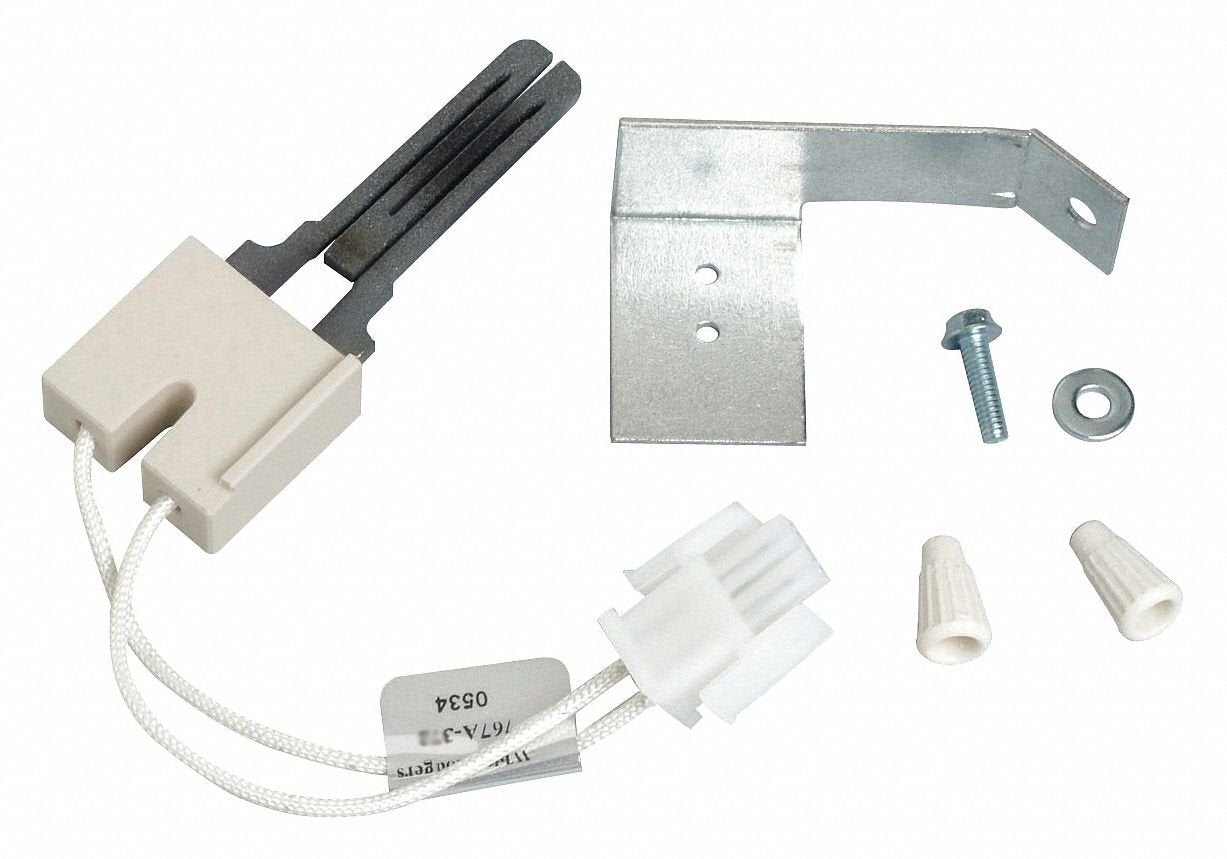

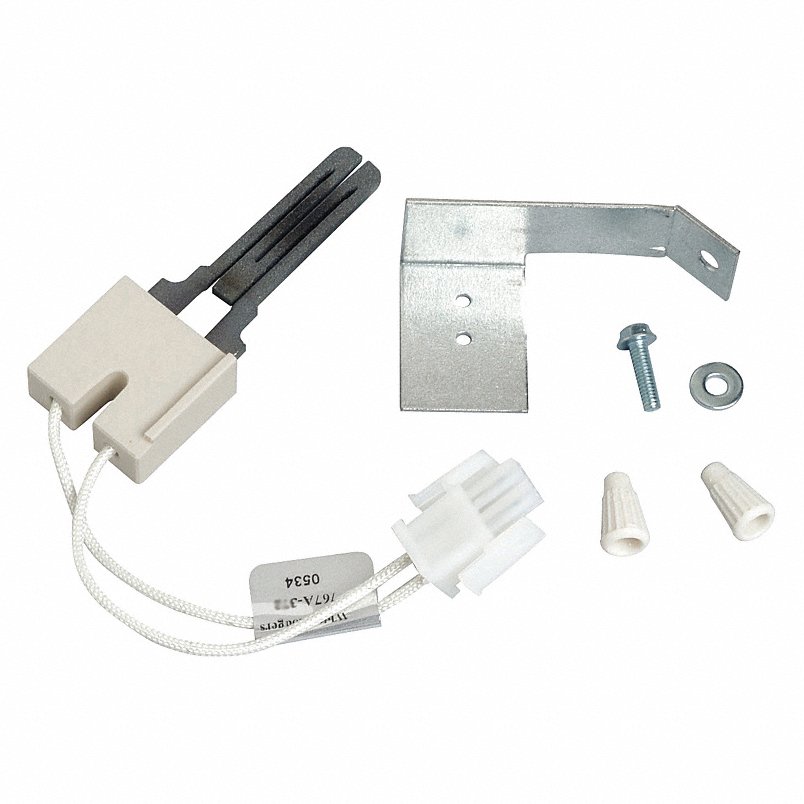

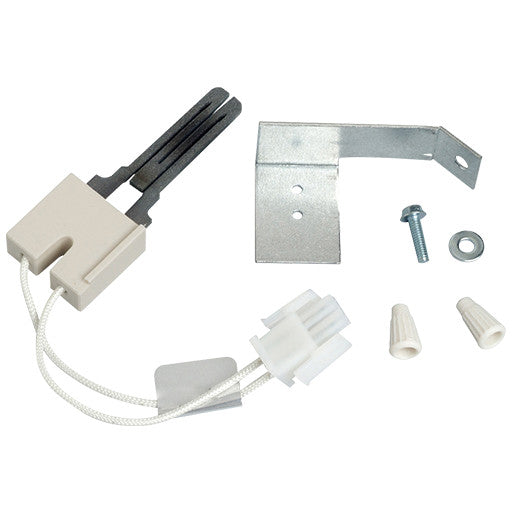

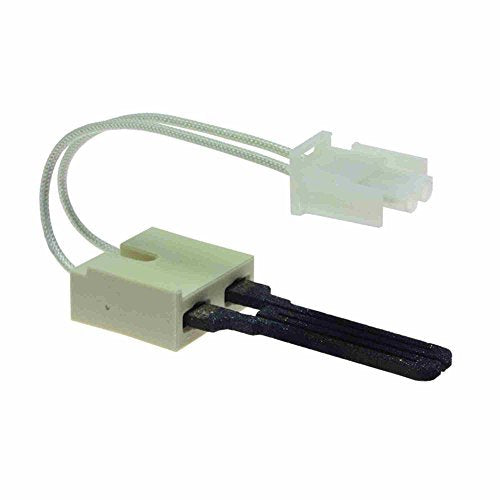

White-Rodgers 767A-383 Ignitor Hot Surface with 5-1/4 Leads

Product Description

The White-Rodgers 767A-383 Ignitor is a hot surface ignitor with 5-1/4" leads. Designed as a universal replacement hot surface ignition control, it ensures maximum compatibility. It is designed for use with 120 V furnaces and features a pin harness electrical connection.

• Features a 5-1/4" lead length
• Has a universal bracket for versatile mounting
• Designed for use with 120V furnaces

Product Highlights

This White-Rodgers ignitor provides reliable hot surface ignition for various heating applications. It features a robust design and is suitable for furnaces, boilers, and water heaters.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 767A-383
• Country of Origin: United States

Technical Specifications

• Item Model Number: 767A-383
• Part Number: 767A-383
• Batteries Required?: No
• Item Package Quantity: 1
• Lead Length (In.): 5-1/4
• Electrical Ratings: 120 VAC
• Voltage: 120 VAC
• Depth (In.): 2-1/4
• Width (In.): 3-13/32
• Height (In.): 3-13/64
• Igniter Warm-Up Time (Sec.): 15 to 45
• Electrical Connections: Pin Harness
• Bracket: Universal
• For Use With: 120 V Furnace
• Product Type: Hot Surface Igniter
• Replacement Type: OEM
• Heating Element Material: Silicon Carbide
• Electrical Connection Type: Plug-In
• Input Voltage: 120V AC
• Maximum Lead Wire Insulation Temperature: 392 Degrees F
• Compatible with Brand: Robertshaw
• Series: 767A
• Standards: CSA Certified
• Includes: Ceramic Wire Nuts
• Connection Type: Molex side lock connection with .092" male pins
• Mounting: N style mounting block
• Material: Silicon Carbide
• Country of Origin: US
• Manufacturer Name: Emerson Electric
• Model: 767A-383
• Lead Wire Length: 5.25"
• Igniter Type: Silicon carbide, hot surface igniter
