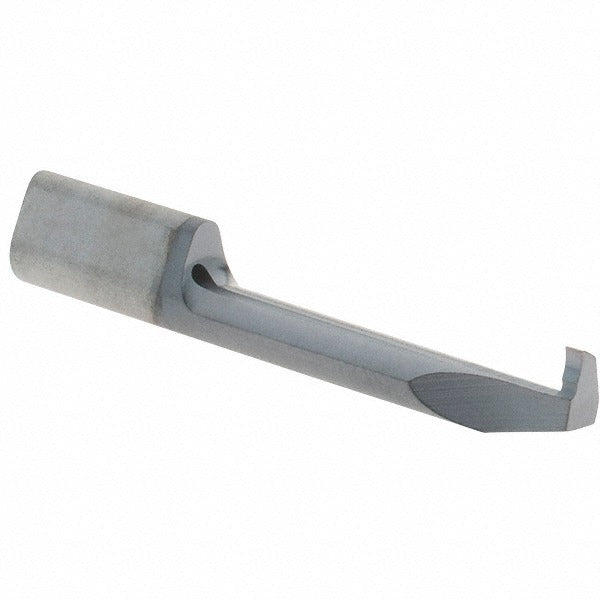

Horn RU105004647TH35 Grooving Insert Left Hand Solid Carbide

Product Description

The HORN RU105004647TH35 is a solid carbide grooving insert designed for internal grooving and milling operations on CNC turning and machining centers. This left-hand cutting insert produces a 2.00mm (0.0790 inch) groove width with a full radius profile, making it well suited for precision bore grooving in tight-diameter applications. The minimum bore entry diameter is 4.70mm, allowing work in small internal features where insert clearance is critical. The overall insert length is 57.00mm with a 6.00mm shank diameter. Solid carbide construction delivers the rigidity and wear resistance needed for consistent dimensional output in production environments.

This insert is applied in precision internal grooving operations on small-bore components, including hydraulic fittings, medical device housings, and aerospace turned parts. It is intended for use in HORN-compatible RU-series toolholders. The left-hand cutting direction makes it appropriate for specific bore orientations where a right-hand insert would not clear the workpiece geometry. Maximum hole depth capacity is 32.00mm (1.2560 inches). CNC machinists and toolroom technicians working with Swiss-type lathes or gang-tool turning centers will find this insert applicable to fine-pitch internal groove profiles.

Key Features

• Left-hand cutting direction for internal bore grooving applications
• Full radius profile with a 1.00mm radius for smooth groove bottom geometry
• 2.00mm groove width (0.0790 inch) for precise, repeatable cuts
• Minimum hole diameter of 4.70mm enables use in small-bore components
• Solid carbide construction provides superior rigidity and edge retention
• Maximum hole depth of 32.00mm (1.2560 inches) supports deeper internal features

Compatibility

Designed for use with HORN RU-series compatible toolholders for internal grooving applications requiring a left-hand, full-radius solid carbide insert with a 6.00mm shank diameter.

Installation Notes

Installation and tool changes must be performed with the machine in a fully stopped and locked-out state per applicable shop safety procedures. Verify insert seating and clamping torque against the toolholder manufacturer specifications before resuming cutting operations. Inspect the insert pocket for chips or debris prior to seating the insert. Coolant delivery should be confirmed and directed appropriately for the bore diameter before engaging the cut.
