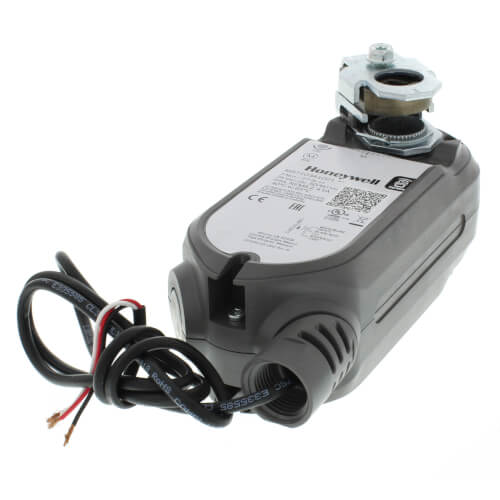

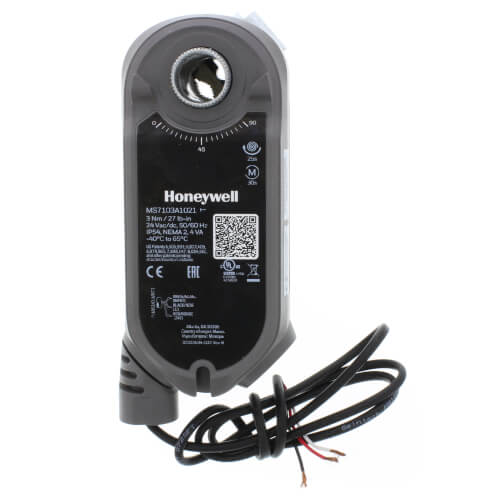

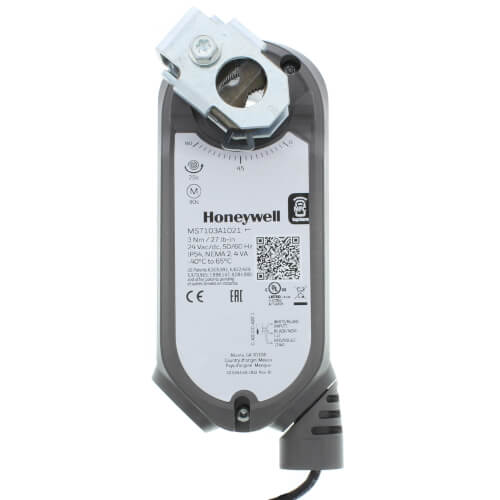

Honeywell MS7103A2221 Diamond Spring Return Actuator 27 lb-in Low Volt 2-10v Mod Only Feedback Switches Self-center Shaft Adapter

Product Description

The Honeywell MS7103A2221 is designed for precise and reliable control in tough industrial environments. By incorporating a Diamond Spring Return mechanism, this actuator ensures a rapid and consistent return to the initial position in the event of power loss. Suitable for a range of quarter-turn, final control elements, it offers substantial operational robustness with its 27 lb-in torque capacity and self-centering shaft adapter.

• Spring Return functionality promotes reliability and safety in power loss scenarios.
• 27 lb-in torque capacity capable of handling demanding loads within HVAC systems.
• 2-10v low-voltage operation enhances energy efficiency and safety.

Product Highlights

The actuator features modulating mode for precise control, feedback switches for accurate position monitoring, and a 360-degree conduit for versatile installation options.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS7103A2221

Technical Specifications

• Weight: 1.7 lbs
• Type: Modulating, Floating
• Dimensions: Length: 7 inches, Width: 3.54 inches, Height: 3.2 inches
• Temperature Range: -40°F to 15°F
• Humidity Range: 5 to 90% RH (non-condensing)
• Operational Voltage: 2-10 VDC
• Documents: Installation Instructions, Submittal Sheet, Brochure
