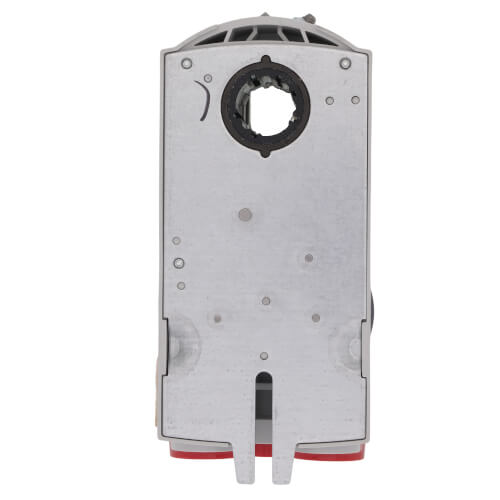

Honeywell MN7510A2001 Modulating Floating Non-Spring Return Actuator - 88 lb-in 24VAC/VDC

Product Description

The Honeywell MN7510A2001 Modulating Floating Non-Spring Return Actuator is designed to provide reliable control and ease of use in HVAC systems. It is suitable for a variety of applications, including air dampers, air handlers, ventilation flaps, and louvers.

• Direct coupled mount for easy installation
• Manual adjustment via declutch mechanism
• Operates with 24 VAC/VDC power supply

Product Highlights

This actuator features a modulating and floating/2-position control suitable for air dampers and other HVAC applications. It offers a torque rating of 88 lb-in and operates with a 24 VAC/VDC power supply. The actuator includes field-installable auxiliary switches and can be mounted in any orientation.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell
• MPN: MN7510A2001
• Product Type: Actuator

Technical Specifications

• Torque Rating: 88 lb-in
• Voltage Rating: 24 VAC/VDC
• Dimensions: 2.6 in W x 2.44 in D x 5.23 in H
• Material: Plastic
• Application: For heating, ventilating, and air conditioning systems
• Motor Timing: 95 s nominal at 60 Hz
• Mounting Type: Direct coupled

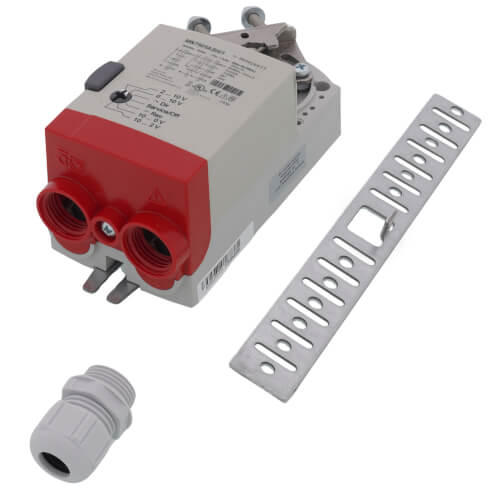

• Includes: Mounting bracket, screws, shaft adapter, water-tight strain relief cable fittings
• Standards/Approvals: C-Tick N314, cUL C22.2 No. 24-93, EEC 73/23, IEC/ECC 89/336, Plenum Rated, UL 873
• Power Consumption: 5 VA
• Temperature Range: -5 F to +140 F
