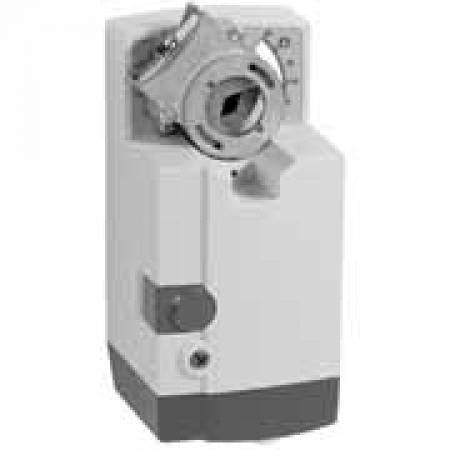

Honeywell MN6120A1200 Non-Spring Return Damper Actuator 24V 175 lb-in 2 Internal Switches

Product Description

The Honeywell MN6120A1200 24V Non-Spring Return Damper Actuator is designed for reliable performance in demanding HVAC applications. It provides 175 lb-in of torque and includes two internal auxiliary switches for versatile operation.

• Compatible with various systems
• Includes mounting bracket and self-centering shaft adapter
• Reliable performance in challenging environments

Product Highlights

This damper actuator offers robust control for air dampers and other HVAC applications. Its non-spring return mechanism and flexible mounting options make it suitable for various configurations. With Honeywell's trusted quality, it ensures long-term durability.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MN6120A1200
• Category: Damper Actuators

Technical Specifications

• Actuator Type: Damper, Valve
• Torque: 175 lb-in
• Fail Safe Mode: Non-Spring Return
• Control Signal: Two position, Floating
• Supply Voltage: 24V AC ±15%
• Number of Internal Auxiliary Switches: 2
• Shaft Adapter Type: Self-centering clamping
• Mounting: Direct Coupled
• Frequency: 50/60 Hz
• Rotational Stroke: 95 ± 3 degrees
• Dimensions: 8.78 inches high x 3.62 inches wide x 3.15 inches deep
• Weight: 3.2 lb
• Compatible Damper Shafts: 3/8 to 1.06 inches round or 3/8 to 11/16 inches square
• Materials: Plenum rated plastic housing
• Power Consumption: 6 VA
• Temperature Range, Ambient: -5°F to 140°F
• Operating Humidity Range: 5% to 95% RH, non-condensing
• Maximum Noise Rating: 40 dB(A) @ 1m
• Environmental Rating: NEMA2; IP54
• Approvals: UL873, Plenum Rated, cUL C22.2 No. 24-93, CE89/336/ECC, 73/23/EEC, C-TickN314
