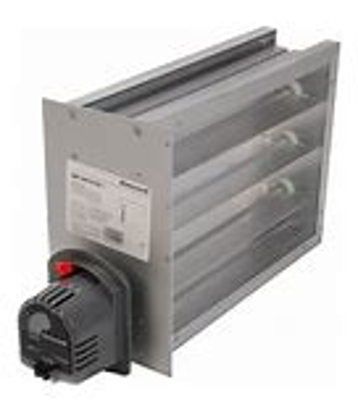

Honeywell ZD8X24TZ/U Damper Parallel Blade TrueZone 24 VAC (8 in x 24 in) ZD8X24TZ

Product Description

The Honeywell ZD8X24TZ/U is a parallel blade zone damper for TrueZONE residential HVAC zoning, sized 8 in x 24 in. It features a 24 VAC spring-return motor with 0.32 A current draw, 90 degree rotation, and power-closed/spring-open operation. The damper uses an extruded aluminum frame and parallel aluminum blades, includes a mechanical visual position indicator, and provides M1/M6/M4 terminal wiring and timed actuation.

• 24 VAC spring-return motor, 0.32 A, 90 degree rotation with power-closed and spring-open operation
• 8 in x 24 in rectangular extruded aluminum frame with parallel aluminum blades for low leakage
• M1 (power)/M6 (common)/M4 (LED indication) terminals, mechanical visual position indicator, 30 s power-close and 10 s spring-return timing

Product Highlights

8 in x 24 in TrueZONE parallel blade residential damper; 24 VAC power-close/spring-open motor; extruded aluminum construction with mechanical position indicator.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD8X24TZ/U
• Country of Origin: Import
