Honeywell ZD8X24 Zone Damper 24V (8 in. x 24 in.) ZD8X24/U

Product Description

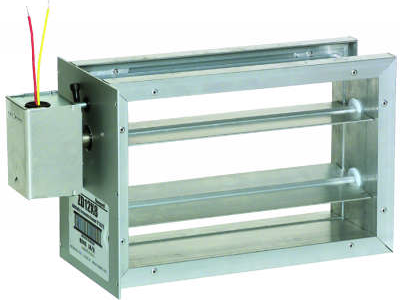

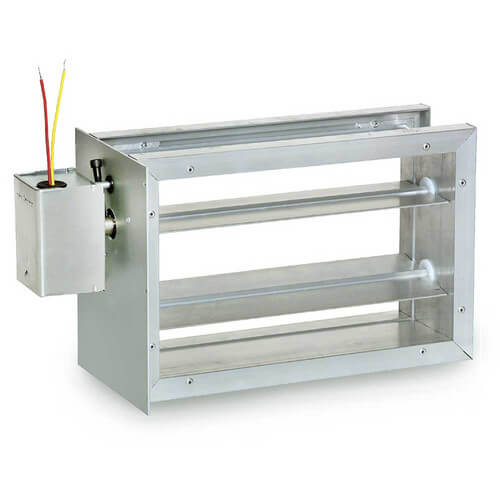

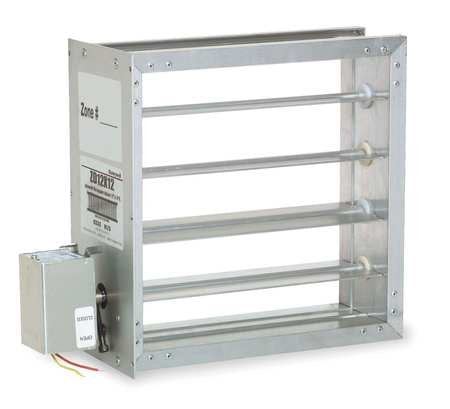

The Honeywell ZD8X24 is a 24V parallel blade zone damper designed for HVAC systems. This power close and spring open damper utilizes a 24-volt motor to control circulating air in heating, cooling, and ventilating systems, and is used when a normally-open damper is required. It is compatible with TrueZONE systems and other electronic zoning systems.

• Kevlar gearing reduces wear, more than doubling damper life.
• Features adjustable range stops and a mechanical visual position indicator.
• Solid construction with extruded aluminum frame and parallel blades for low leakage.

Product Highlights

The Honeywell ZD8X24 damper ensures efficient air control with its robust design and easy two-wire installation.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD8X24

Technical Specifications

• Voltage: 24V
• Size: 8" x 24"
• Application: Air Quality
• Features: Adjustable Range Stops
• Motor: Spring Return
• Shape: Rectangle
• Wires to Motor: 2
• Manufacturer: Honeywell
• Length (inches): 24
• Height (inches): 8
