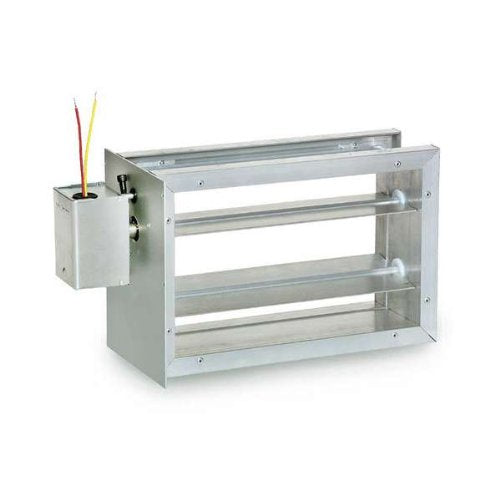

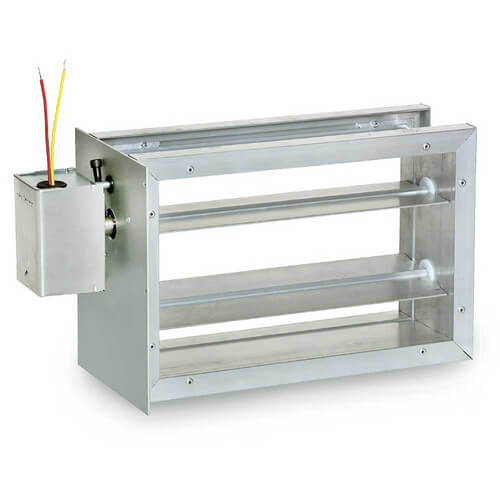

Honeywell ZD8X20 Zone Damper 24 AC (H 8In, W 20In, D 4In)

Product Description

The Honeywell ZD8X20 24V Parallel Blade Zone Damper controls circulating air in heating, cooling, and ventilating systems. It features a durable 24 volt spring return motor and simple, easy-to-wire operation. The damper is compatible with TrueZONE systems and other electronic zoning systems and is used when a normally-open damper is required.

• Kevlar gearing reduces wear, more than doubling damper life.
• Features adjustable range stops and a mechanical visual position indicator.
• Solid construction using extruded aluminum frame and blades with parallel blade design.

Product Highlights

The Honeywell ZD8X20 damper offers reliable performance with its 24V spring-return motor, easy installation, and compatibility with conventional and networked zoning systems.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD8X20

Technical Specifications

• Brand: Honeywell
• Product Number: ZD8X20
• Category: HVAC
• Size: 8" x 20"
• Application: Air Quality
• Voltage: 24V
• Features: Adjustable Range Stops
• Motor: Spring Return
• Shape: Rectangle
• Wires to Motor: 2
