Honeywell ZD8X16TZ/U Parallel Blade Damper 24V (8 inches x 16 inches)

Product Description

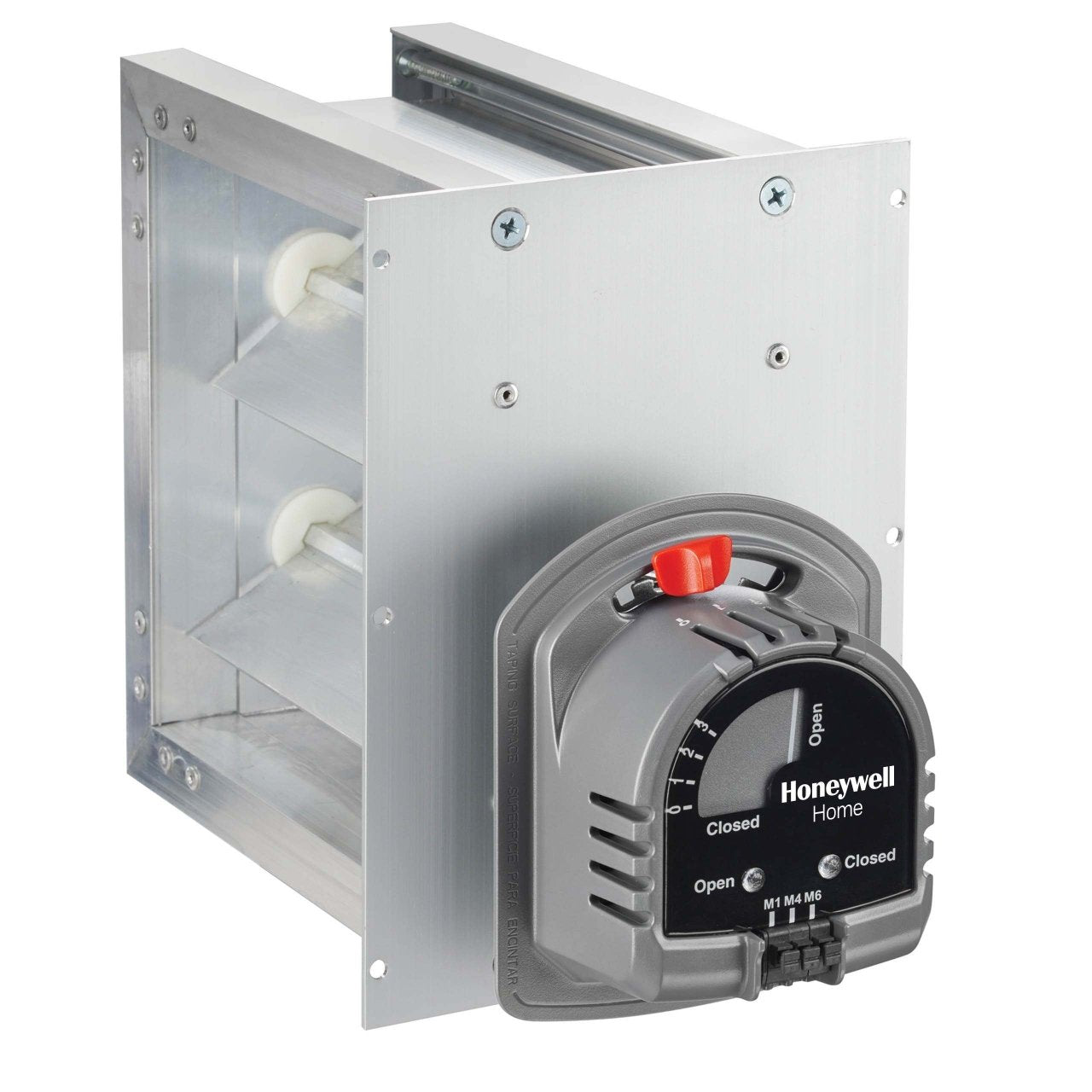

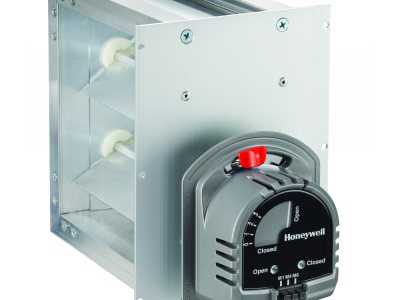

The Honeywell ZD8X16TZ/U parallel blade damper is designed with a 24V motor to control circulating air in HVAC systems. It features a parallel blade design for low leakage performance and solid construction using an extruded aluminum frame and blades. This damper is used when a normally open damper is required.

• Power close, spring open
• Simple, easy-to-wire, 2-wire installation
• Mechanical visual position indicator for damper status

Product Highlights

The Honeywell ZD8X16TZ/U damper offers reliable performance with its strong spring return motor and is compatible with conventional and networked zoning systems.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD8X16TZ/U
• Country of Origin: Import

Technical Specifications

• Brand: HONEYWELL
• Voltage: 24V
• Width: 16"
• Length: 8"
• Item Model Number: ZD8X16TZ/U
• Blade Type: Parallel
• Size: 8 in x 16 in
• Type: Zone Damper
• Shape: Rectangular
• Amperage: 0.32 A
• Rotation: 90 deg
• Height: 8 in
• Material: Aluminum
• Application: Parallel Blade Damper
• Damper Duct Shape Type: Rectangular
• Damper Material: Aluminum
• Blade Action: Parallel
• Motor or Actuator Mounting: Bottom
• Motor: Power closed, spring open
• Motor Timing: 30 seconds power open/10 seconds spring return
• Wires to Motor: Terminals: M1-Power; M6 Common; M4 (optional)-LED indication
• Actuator Torque: 71 in-oz
• Leakage: Less than 1% at 0.5 in WC
• Postition Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
• Rotation Angle: 90 deg
• Voltage Rating: 24 V
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
• Manufacturer: Honeywell
• Manufacturer #: ZD8X16TZ/U
• Motor Type: Power Closed, Spring Open
• Series: ZD Series
• Temperature Rating: 32 to 120 deg F
• Timing: 30 s
• MPN: ZD8X16TZ/U
• UPC: Does Not Apply
• Country of Origin: United States
• Category: Business & Industrial
• Mount: Bottom Mount
