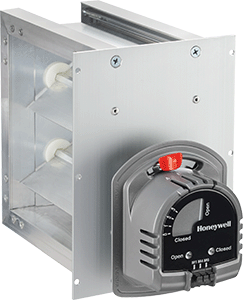

Honeywell ZD8X12TZ/U Zone Control Dampers

Product Description

The Honeywell ZD8X12TZ/U is a zone control damper designed for HVAC systems. This damper features a power close and spring open functionality. It uses a twenty-four volt spring-return motor to manage the circulation of air. It is particularly suited for applications where a normally open damper is necessary, often in conjunction with TrueZONE systems.

• Power close, spring open operation
• Durable aluminum construction
• Simple two-wire installation

Product Highlights

The ZD8X12TZ/U includes features that prolong damper life and enhance performance.

Product Information

Standard Information

• Brand: Honeywell
• MPN: ZD8X12TZ/U

Technical Specifications

• Size: 8 inches by 12 inches
• Material: Aluminum
• Vendor: Honeywell
• Motor Type: 24V Spring-return
• Installation: Can be installed in any orientation
