Honeywell ZD8X12 Zd-8x12 8 in. x 12 in.

Product Description

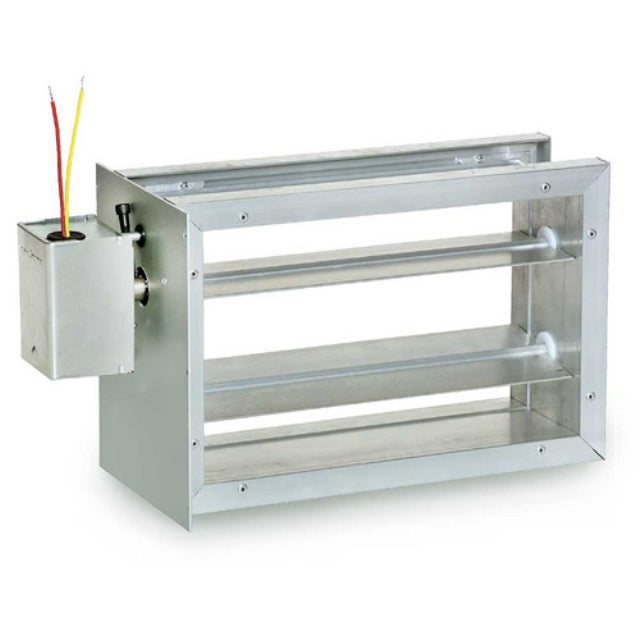

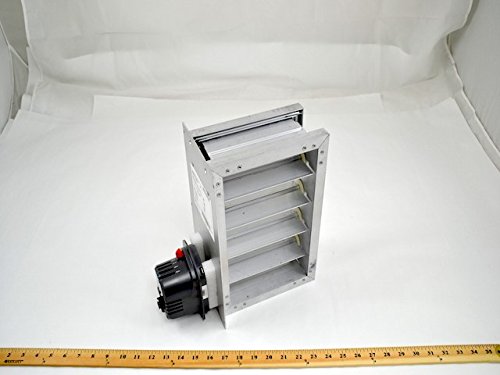

The Honeywell ZD8X12 is a 24V power close and spring open damper used to control circulating air in HVAC systems. It is typically used with TrueZONE and other electronic zoning systems when a normally-open damper is required. The damper features a parallel blade design for low leakage performance and quieter operation.

• Kevlar gearing reduces wear, more than doubling damper life.
• Mechanical visual position indicator for damper status.
• Simple, easy-to-wire, two-wire installation.
• Fail-safe, normally open operation.

Product Highlights

The Honeywell ZD8X12 damper features solid construction, adjustable range stops and is compatible with conventional and networked zoning.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD8X12
• Country of Origin: MX

Technical Specifications

• Brand: Honeywell
• Product Number: ZD8X12
• Category: HVAC
• Size: 8" x 12"
• Application: Air Quality
• Voltage: 24V
• Features: Adjustable Range Stops
• Motor: Spring Return
• Motor Side: 12"
• Shape: Rectangle
• Wires to Motor: 2
• Country of Origin: MX
• Compatible Brand: HONEYWELL HOME
• Item Thickness: 1/4 in
• Model: ZD8X12
• Used With: Honeywell zoning systems
• Actuator Location: Side Mount
• Number of Wires: 2-Wire
• Power Options: Power Close, Spring Open
• Style: New Construction
• Height: 6.1 in
• Length: 16.5 in
• Weight: 5.7 lb
• Width: 11.8 in
• Vendor Name: Honeywell Home
• URI Part Number: ZD8X12
• Prop65: No
