Honeywell ZD6X16TZ/U Zone Damper Power 6 X 16

Product Description

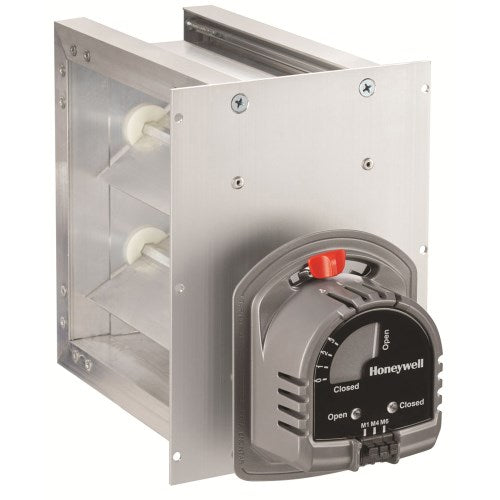

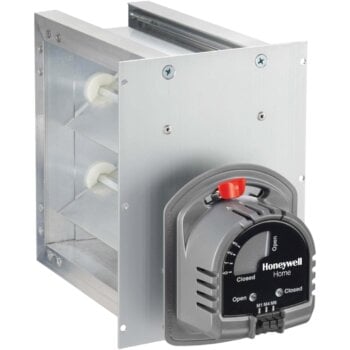

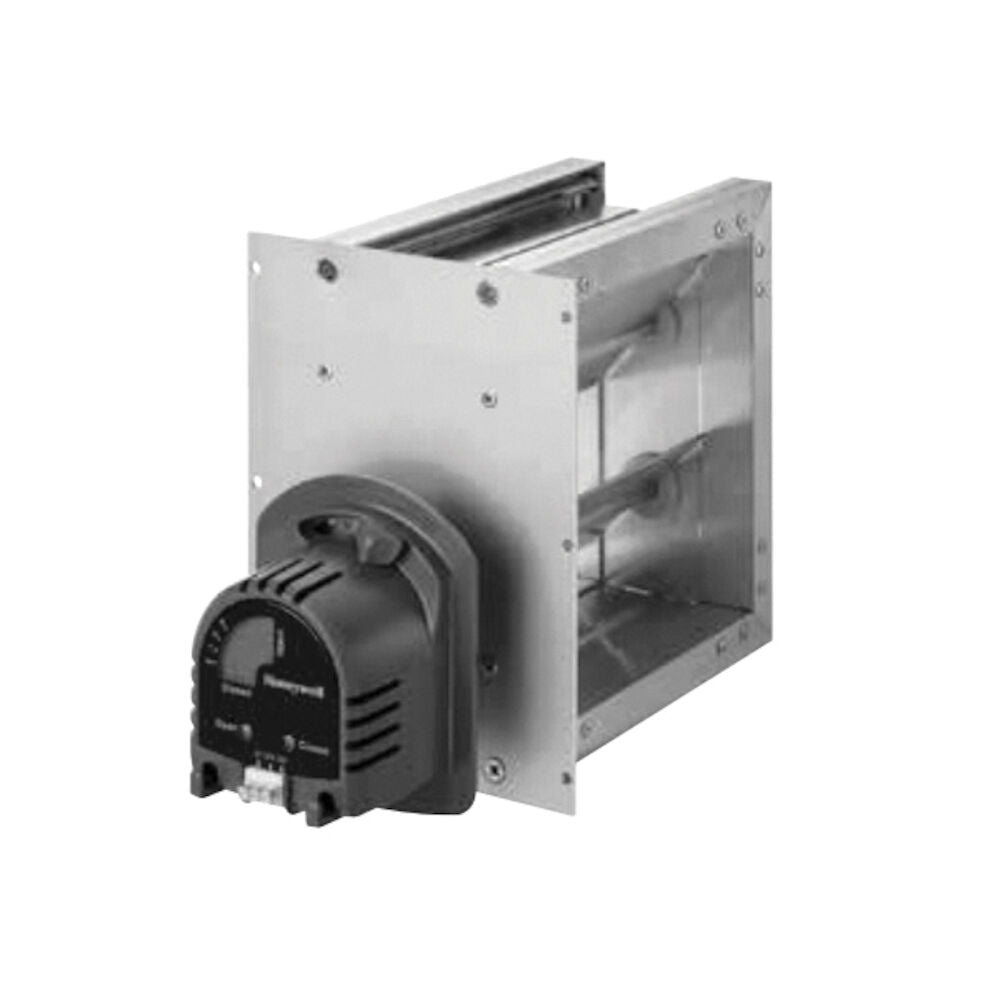

The Honeywell ZD6X16TZ/U is a zone damper used in HVAC systems to control circulating air. It operates on twenty-four volts and features a power close and spring open mechanism. This damper is designed for situations where a normally-open damper configuration is needed. The construction includes an extruded aluminum frame and blades, offering durability and efficiency. It works well with TrueZONE and other electronic zoning systems.

• Power close/spring open motor for reliable operation.
• Parallel blade design for optimal airflow control.
• Durable aluminum frame and blade material.

Product Highlights

The Honeywell ZD6X16TZ/U is essential for managing HVAC airflow in various zones, ensuring comfort and energy efficiency.

Product Information

Standard Information

• Brand: Honeywell Home
• Manufacturer: Honeywell

Technical Specifications

• MPN: ZD6X16TZ/U
• Zone Control Product Type: Parallel Blade Dampers
• Damper Shape: Rectangular
• Damper Blade Action: Parallel
• Damper Motor Type: Power Close/Spring Open
• Damper Size: 6 x 16 inches
• Frame Material: Aluminum
• Blade Material: Aluminum
• Voltage: 24 VAC
• Hertz: 60 Hz
• Maximum Ambient Temperature: 140 F (60 C)
• Minimum Ambient Temperature: 40 F (5 C)
• Maximum Static Pressure: 1 inWC
• Power Open Timing: 30 seconds
• Spring Return Timing: 10 seconds
• Rotation Angle: 90 degrees
• Amperage Rating: 0.32 A
• Weight: 6.1 lbs
• Mount: Bottom Mount
