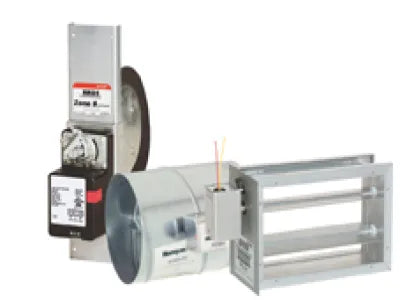

Honeywell Home ZD24X8TZ/U Rectangular Zone Damper 24V 24 in H x 8 in W

Product Description

The Honeywell Home ZD24X8TZ/U is a rectangular zone damper designed to control air circulation in HVAC systems. It features a 24-volt motor primarily used for zoning applications. This damper is typically employed with TrueZONE systems and is ideal for both residential and commercial use.

• Power close and spring open operation.
• Mechanical visual position indicator.
• Easy to install with 24-volt power.

Product Highlights

The ZD24X8TZ/U damper is a reliable solution for managing airflow in ducted systems. Its robust construction enhances durability and performance.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD24X8TZ/U

Technical Specifications

• Voltage Rating: 24 VAC
• Size: 24 in H x 8 in W
• Material: Aluminum
• Blade Action: Parallel
• Timing: 30 seconds power closed / 10 seconds spring return
• Leakage: Less than 1% at 0.5 in WC
• Temperature Rating: 32 to 120 deg F
• Actuator Torque: 71 in-oz
