HONEYWELL ZD22X8TZ/U HONEYWELL ZD22X8TZ/U 22 in. x 8 in. Parallel Blade Damper

Product Description

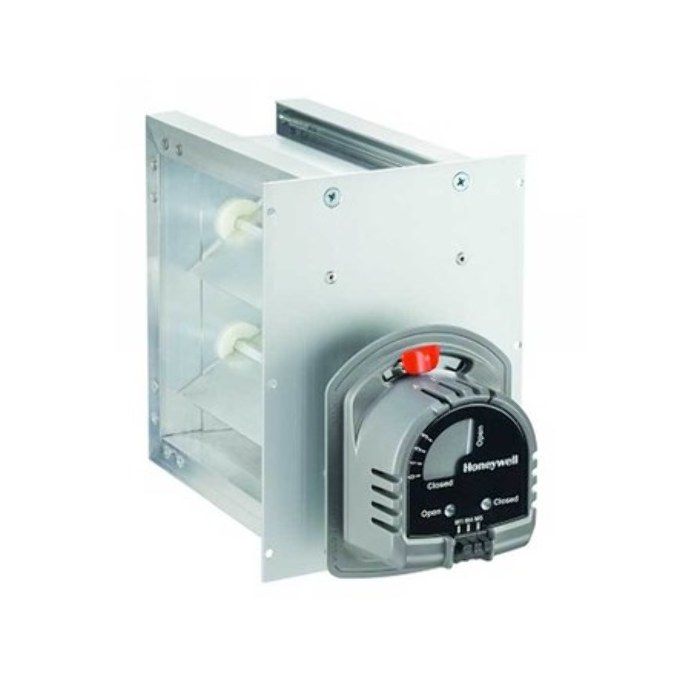

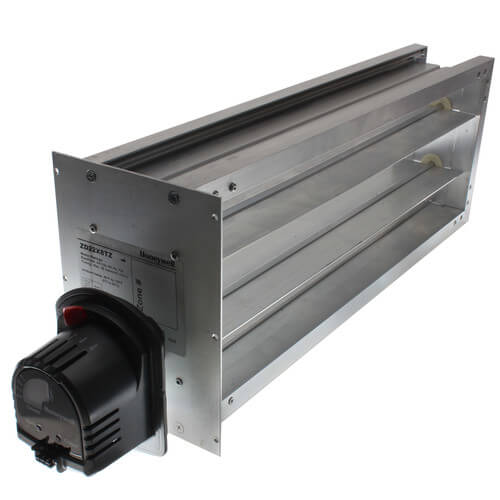

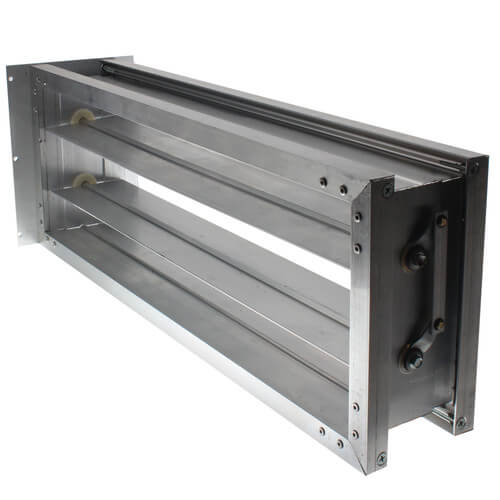

The HONEYWELL ZD22X8TZ/U is a rectangular zone damper, measuring twenty-two inches by eight inches. It is used for managing air circulation in HVAC systems. This unit is designed with parallel blades and is operated by a twenty-four volt motor. It has a power-close feature and spring-open mechanism, typically remaining open unless activated. The construction includes an extruded aluminum frame ensuring durability and low leakage.

• Features an innovative all-metal drive train gear
• Simple two-wire installation with an option for a third wire for LED indication
• Operates effectively with a maximum of one inch water column

Product Highlights

This damper is effective in maintaining air quality and airflow in HVAC applications.

Product Information

Standard Information

• Damper Duct Shape Type: Rectangular
• Damper Type: Zone

Technical Specifications

• Application: Air Quality
• Damper Material: Aluminum
• Product Height: 8 inches
• Product Length: 22 inches
• Product Width: 4 inches
• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 inch-oz
• Blade Material: Aluminum
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Voltage: 24V
