HONEYWELL ZD20X16TZ/U Zone Damper Power 24 VAC (20 x 16) Replacement MPN

Product Description

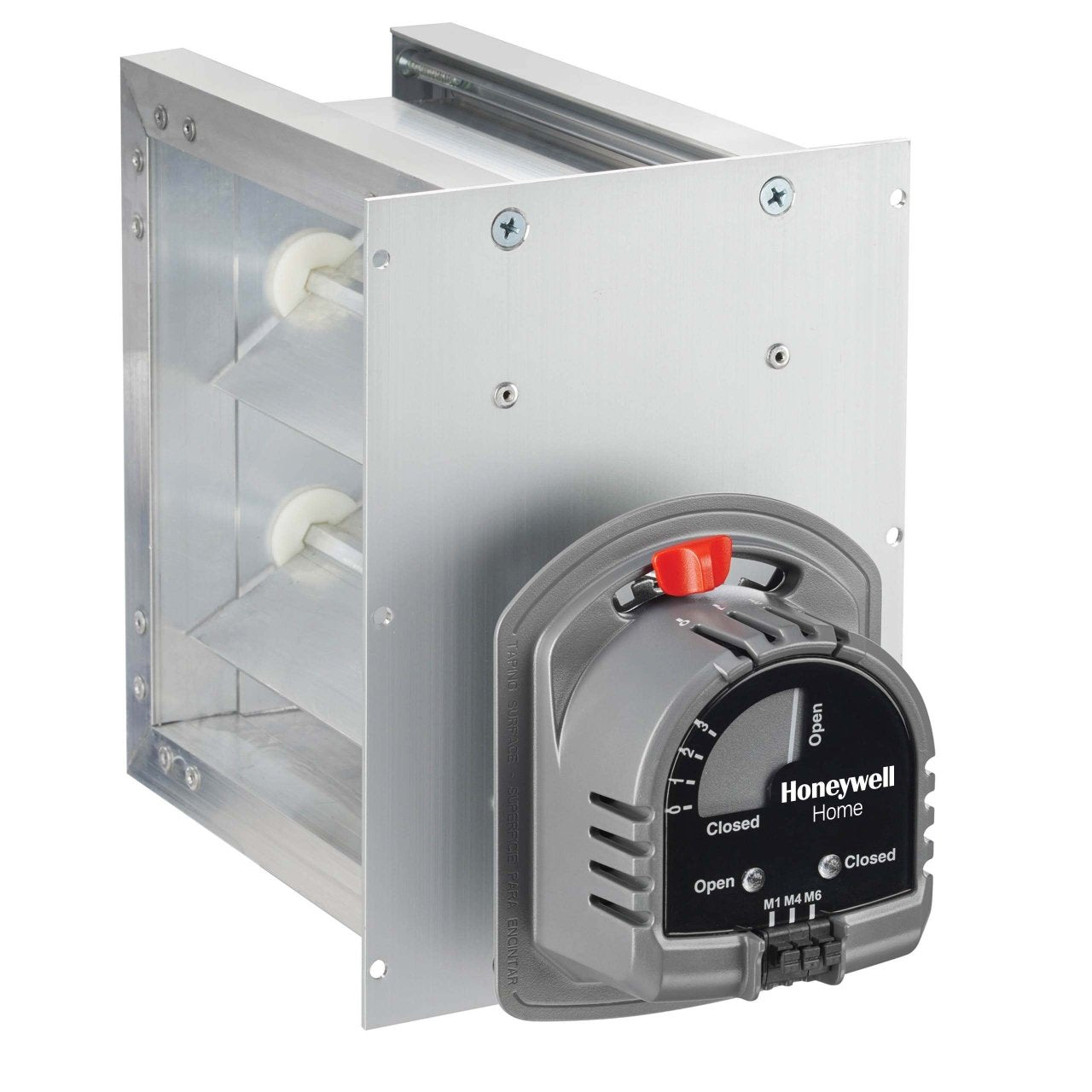

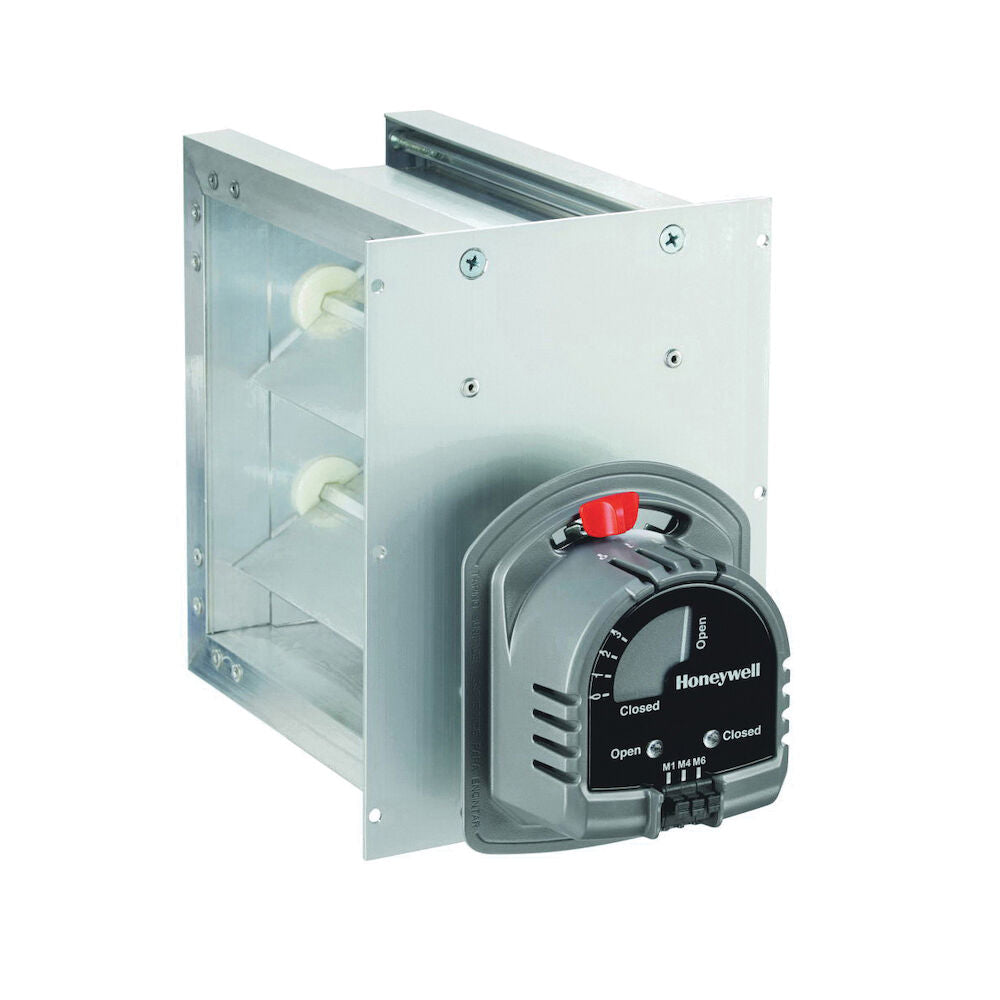

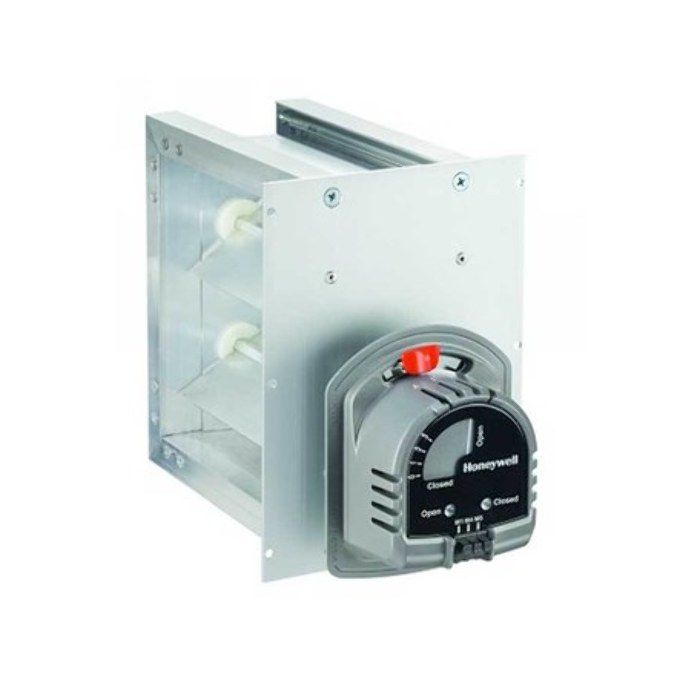

The HONEYWELL ZD20X16TZ/U is a rectangular zone damper created for HVAC systems. This product uses a 24 VAC motor to help manage airflow, especially when used with TrueZONE and other electronic zoning systems. It features a parallel blade design made from aluminum, ensuring low leakage performance and durable operation.

• Includes a 24 VAC motor for effective airflow regulation.
• Designed with parallel blades for minimal leakage.
• Mechanical visual position indicator for easy status check.

Product Highlights

The damper is engineered for normally open operation and allows for a 90-degree rotation. It is ideal for use in various HVAC applications, ensuring efficient airflow management in multiple zones.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Manufacturer #: ZD20X16TZ/U
• Shape: Rectangular
• Height: 16 inches
• Width: 20 inches
• Depth: 4 inches
• Voltage Rating: 24 VAC
• Motor Type: Power Closed, Spring Open
• Rotation Angle: 90 degrees
• Timing: 30 seconds
• Blade Action: Parallel
• Electrical Connections: 2-Wire
• Material: Aluminum
• Activation: Electric
• Blade Material: Aluminum
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Normal Position: Open
• Weight: 10.4 lbs
