Honeywell Home ZD20X12TZ/U Rectangular Zone Dampers 24V (20 in x 12 in) Replacement ZD20X12TZ/U

Product Description

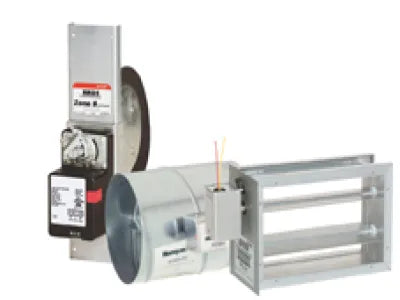

The Honeywell Home ZD20X12TZ/U is a rectangular zone damper designed to control airflow in HVAC systems. This damper measures twenty inches in height by twelve inches in width and uses a twenty-four-volt motor for operation. It functions as a power close and spring open damper, making it suitable for applications where a normally-open damper is necessary.

• Open and close lights for easy status indication.
• Adjustable range stops to ensure consistent bleed settings.
• Compatible with Honeywell TrueZONE systems.

Product Highlights

This reliable and easy-to-install damper features a sturdy aluminum frame and parallel blade design, which minimizes air leakage.

Product Information

Standard Information

• Brand: Honeywell Home
• Model Number: ZD20X12TZ/U

Technical Specifications

• Size: 20 in H x 12 in W
• Shape: Rectangle
• Material: Aluminum
• Motor Type: Power Open / Spring Closed
• Voltage Rating: 24 VAC
• Leakage: Less than 1% at 0.5 in WC
• Temperature Rating: 32 to 120 deg F
• Rotation Angle: 90 deg
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
