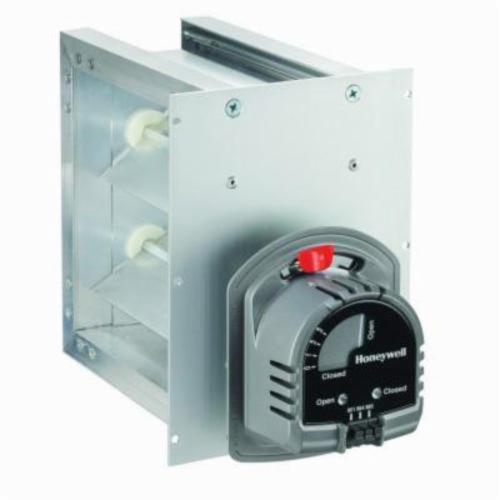

Honeywell ZD20X12TZ/U Residential Damper, 20 x 12 in, Rectangular, 24 VAC, 0.32 A, 90 deg Rotation

Product Description

The Honeywell ZD20X12TZ/U is a rectangular damper designed for use in residential heating and cooling systems.

• Mechanical visual position indicator for damper status
• Solid construction using extruded aluminum frame and blades
• Simple two-wire installation with optional third wire for LED indication

Product Highlights

This damper is designed to provide dependable performance in HVAC applications, ensuring efficient air flow and control.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: ZD20X12TZ/U

Technical Specifications

• Amperage Rating: 0.32 A
• Blade Action: Parallel
• Country of Origin: MX
• Domestic/Import: Import
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
• Material: Aluminum
• Motor Type: Power Closed, Spring Open
• Rotation Angle: 90 deg
• Series: ZD Series
• Shape: Rectangular
• Size: 20 x 12 in
• Temperature Rating: 32 to 120 deg F
• Timing: 30 sec
• Voltage Rating: 24 VAC
