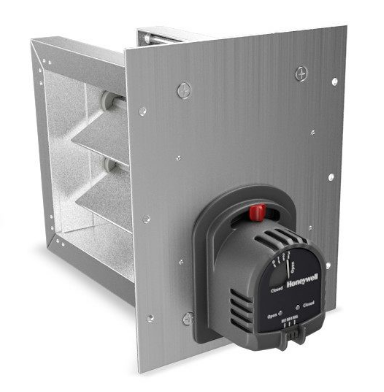

Honeywell ZD20X10TZ/U TrueZone Damper 24 V (20 x 10) ZD20X10

Product Description

Honeywell ZD20X10TZ/U is a TrueZONE rectangular parallel blade zone damper sized 20 x 10 inches with a 24 VAC, two-wire spring-return actuator that is power closed and spring open. The unit has an extruded aluminum frame and blades, mechanical visual position indicator, LED indicator terminals, and 90° rotation with 30 second power-close and 10 second spring-return timing. It is used for residential HVAC zoning and airflow control.

• 24 VAC, 2-wire power-closed / spring-open spring-return actuator with optional LED indication and mechanical visual position indicator
• Extruded aluminum parallel blade construction, nominal size 20 x 10 in, rectangular design for low leakage
• 90° rotation; 30 s power-close / 10 s spring-return timing; current 0.32 A; motor torque 71 in-oz

Product Highlights

20 x 10 in TrueZONE parallel blade damper with 24 VAC power-close/spring-open actuator and 90° rotation

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD20X10TZ/U
• Country of Origin: Mexico
