Honeywell ZD20X10TZ/U Residential Damper 20 x 10 in Replacement MPN

Product Description

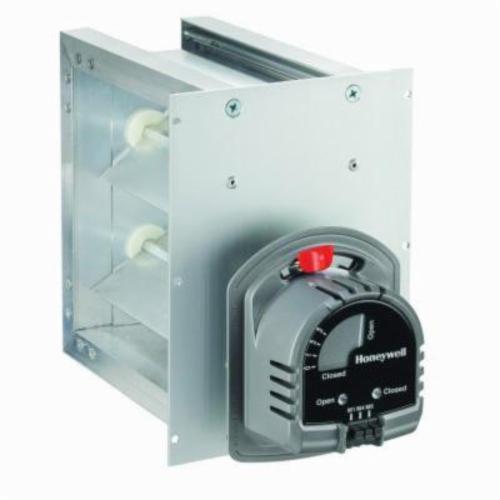

The Honeywell ZD20X10TZ/U is a rectangular residential damper with dimensions of twenty inches by ten inches. It operates at twenty-four VAC and requires zero point thirty-two amps of power. This damper features a reliable spring return motor for dependable performance.

• Mechanical visual position indicator for damper status
• Solid construction with an extruded aluminum frame
• Parallel blade design for low leakage performance

Product Highlights

This damper is suitable for various HVAC zoning applications and can be installed in any orientation, making it versatile for different duct layouts.

Product Information

Standard Information

• Brand: Honeywell
• MPN: ZD20X10TZ/U

Technical Specifications

• Amperage Rating: 0.32 A
• Voltage Rating: 24 VAC
• Rotation Angle: 90 degrees
• Size: 20 x 10 inches
• Material: Aluminum
• Country of Origin: MX
• Temperature Rating: 32 to 120 degrees F
• Timing: 30 seconds (power closed), 10 seconds (spring return)
