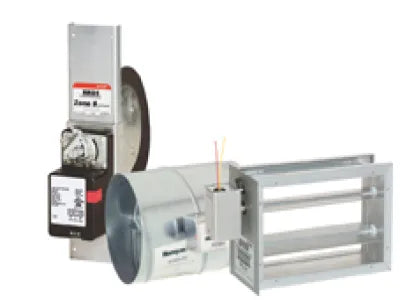

Honeywell Home ZD18X8TZ/U Rectangular Zone Dampers 24VAC 18 in H x 8 in W

Brand: RESIDEO
SKU: ZD18X8TZ/U
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$236.08
$236.08
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Honeywell Home ZD18X8TZ/U is a rectangular zone damper designed for HVAC systems. This model measures eighteen inches in height and eight inches in width. It features a power close and spring open mechanism, operated by a twenty-four volt motor.

  • Easy-to-wire installation
  • Compatible with Honeywell TrueZONE systems
  • Solid construction with aluminum frame

Product Highlights

This damper is ideal for controlling circulating air in various HVAC applications. It is suitable when a normally-open damper is needed, using a straightforward two-wire setup.

Product Information

Standard Information

  • Brand: Honeywell Home
  • MPN: ZD18X8TZ/U

Technical Specifications

  • Voltage Rating: 24 VAC
  • Amperage Rating: 0.32 A
  • Material: Aluminum
  • Size: 18 in H x 8 in W
  • Shape: Rectangular
  • Rotation Angle: 90 degrees
  • Temperature Rating: 32 to 120 degrees F
  • Leakage: Less than 1% at 0.5 in WC
