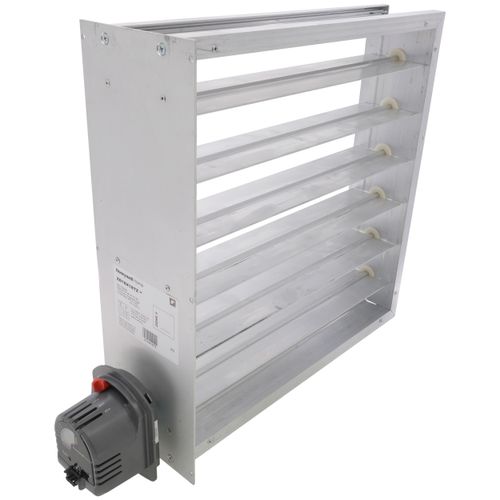

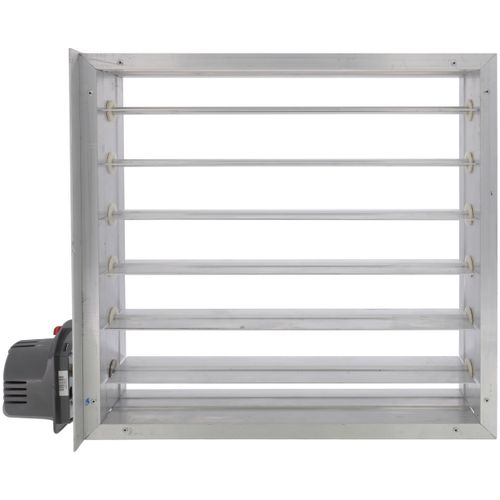

Honeywell ZD18X18TZ/U 18 inches x 18 inches Truzone Parallel Blade Rectangular Damper

Product Description

The HONEYWELL ZD18X18TZ/U is an 18" x 18" Truzone parallel blade rectangular damper. It features a 24V motor used to control circulating air in heating, cooling, and ventilating systems. The damper is typically used with TrueZONE systems and other electronic zoning systems and is used when a normally-open damper is required.

• Kevlar gearing reduces wear, more than doubling damper life.
• Adjustable range stops.

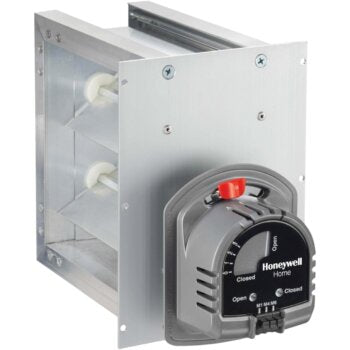

• Mechanical visual position indicator for damper status.

Product Highlights

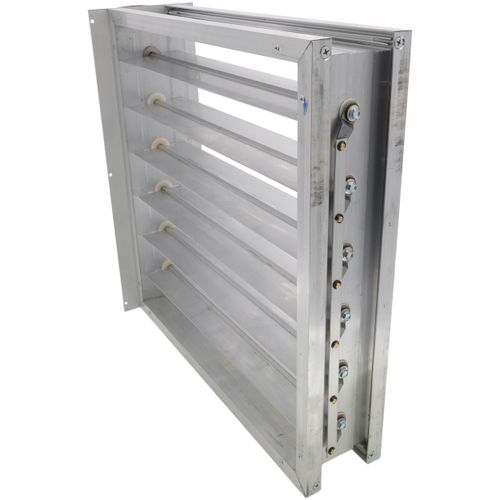

Solid construction using extruded aluminum frame and blades. Parallel blade design for low leakage performance. Simple, easy-to-wire, two-wire installation. Fail-safe, normally open operation.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD18X18TZ/U

Technical Specifications

• Size: 18" x 18"
• Application: Air Quality
• Voltage: 24V
• Features: Adjustable Range Stops
• Motor: Spring Return
• Motor Side: 18"
• Shape: Square
• Wires to Motor: 2
• Brand: HONEYWELL HOME
• MPN: ZD18X18TZ/U
• Manufacturer: Honeywell
• Number of Items: 1.0
• Rotation Angle: 90 deg
• Voltage Rating: 24 V
• Blade Action: Parallel
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
• Material: Aluminum
• Motor Type: Power Closed/Spring Open
• Series: ZD Series
• Temperature Rating: 40 to 140 deg F
• Timing: 30 sec Power Open/10 sec Spring Return
