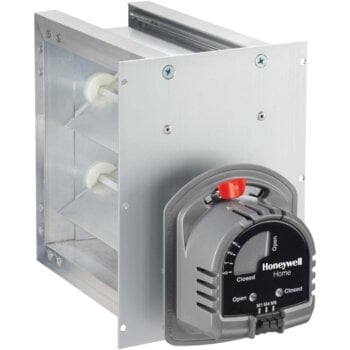

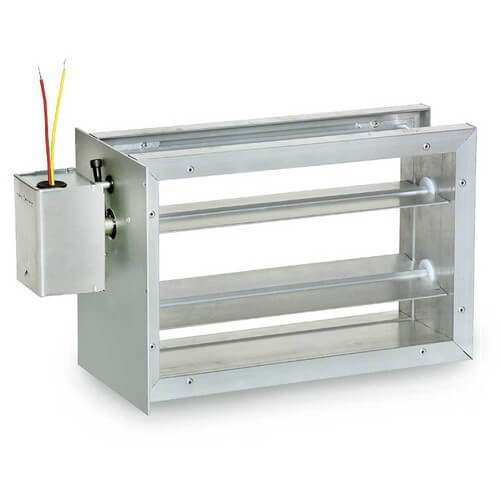

Honeywell ZD16X20TZ/U 16 in. x 20 in. Parallel Blade Damper

Product Description

The Honeywell ZD16X20TZ/U is a 16 in. x 20 in. parallel blade damper. It utilizes a 24V motor to control circulating air in heating, cooling, and ventilating systems, typically used with TrueZONE systems and other electronic zoning systems, and is required when a normally-open damper is needed.

• Kevlar gearing reduces wear, more than doubling damper life.
• Solid construction using extruded aluminum frame and blades.
• Simple, easy-to-wire, two-wire installation.

Product Highlights

This Honeywell damper features a parallel blade design for low leakage performance and a reliable, strong, 24-volt spring-return motor.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD16X20TZ/U

Technical Specifications

• Item Model Number: ZD16X20TZ/U
• Size: 16 x 20 in
• Application: Air Quality
• Voltage: 24 V
• Features: Adjustable Range Stops
• Motor: Spring Return
• Motor Side: 20"
• Shape: Rectangular
• Wires to Motor: 2
• Rotation Angle: 90 deg
• Blade Action: Parallel
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
• Manufacturer: Honeywell
• Manufacturer #: ZD16X20TZ/U
• Material: Aluminum
• Motor Type: Power Closed/Spring Open
• Series: ZD Series
• Temperature Rating: 40 to 140 deg F
• Timing: 30 sec Power Open/10 sec Spring Return
• Brand: Honeywell Home
• Condition: New
• Unit of Measurement: EA (Each)
• Production Status: Active
