Honeywell ZD14X8TZ/U Truezone Damper 24V (14 x 8)

Product Description

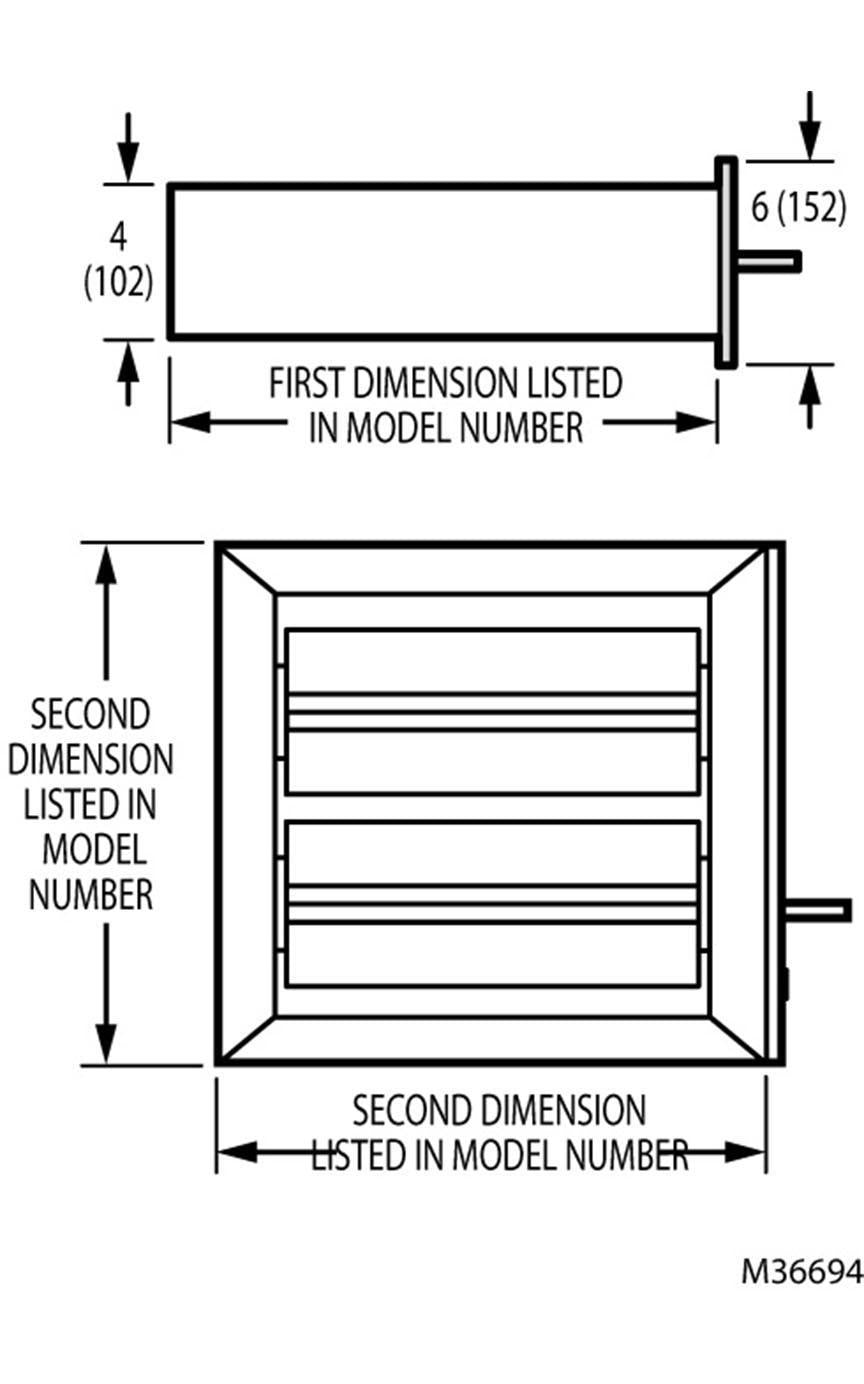

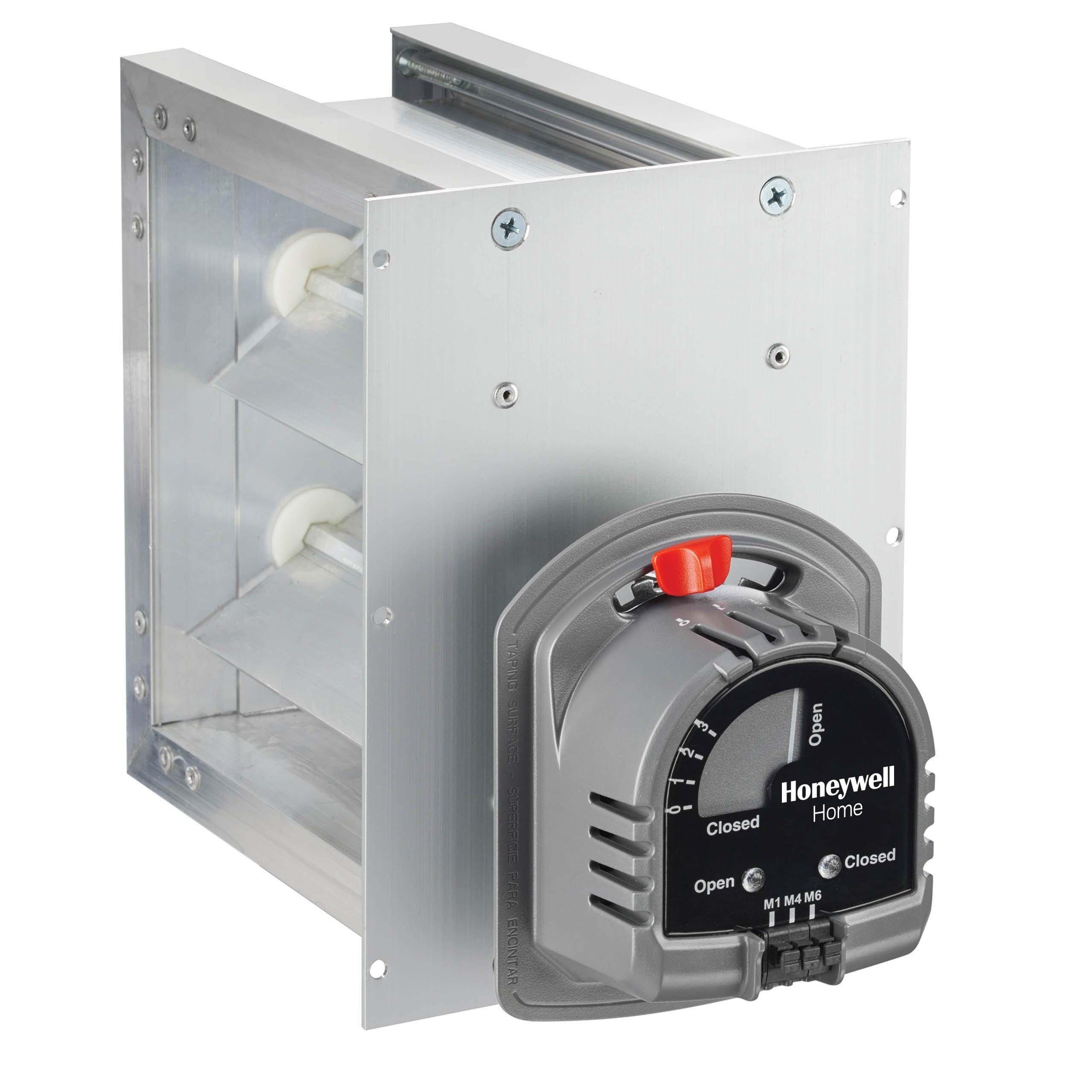

Honeywell ZD14X8TZ/U is a Truezone 14 x 8 in rectangular motorized zone damper that controls residential HVAC airflow using a 24 V AC, two-wire spring-return actuator. The unit provides power-closed / spring-open fail-safe operation, 90° rotation, built-in LED open/close indication and a mechanical visual position indicator. Extruded aluminum parallel blades and adjustable range stops deliver low leakage performance for zoning systems such as TrueZONE.

• 24 V AC, two-wire spring-return actuator with LED open/close indication and mechanical position indicator
• 14 x 8 in extruded aluminum parallel blade construction for low leakage and residential HVAC zoning
• Power closed / spring open operation with 90° rotation and adjustable range stops; compatible with TrueZONE and other zoning systems

Product Highlights

14 x 8 in extruded aluminum parallel-blade zone damper, 24 V AC two-wire power-closed/spring-open actuator with LED and visual position indication for residential HVAC zoning.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD14X8TZ/U
• Country of Origin: Imported

Technical Specifications

• Brand: Honeywell
• MPN: ZD14X8TZ/U
• Product Name: Truezone Damper
• Series: ZD Series
• Size: 14 x 8 in (nominal duct opening)
• Shape: Rectangular
• Type: Zone damper (extruded aluminum parallel blade)
• Input Voltage: 24 V AC
• Motor Rating: 24 VAC, 60 Hz, 8 VA
• Current: 0.32 A (nominal; consistent with 8 VA @ 24 VAC)
• Wiring: 2-wire
• Number of Wires: 2
• Operation: Power closed / spring open (fail-safe)
• Rotation Angle: 90°
• Motor Timing: 30 s power closed / 10 s spring return
• Motor Torque: 71 in-oz
• Motor Temperature Rating: 40 to 140 °F (ambient)
• Material: Extruded aluminum (frame and blade)
• Blade Type: Parallel blade
• Indicator Type: LED open/close indication; mechanical visual position indicator
• Adjustable Range Stops: Yes
• Leakage: Less than 1% at 1/2 inch WC
• Maximum Static Pressure Rating: 1 inch WC
• Mounting / Actuator Location: Side mount; can be installed in any orientation
• Typical Application: Residential HVAC zone control; used with TrueZONE and other electronic zoning systems
• Compatible Systems: TrueZONE and other electronic zoning systems
• Country of Origin: Mexico
• Condition: New
