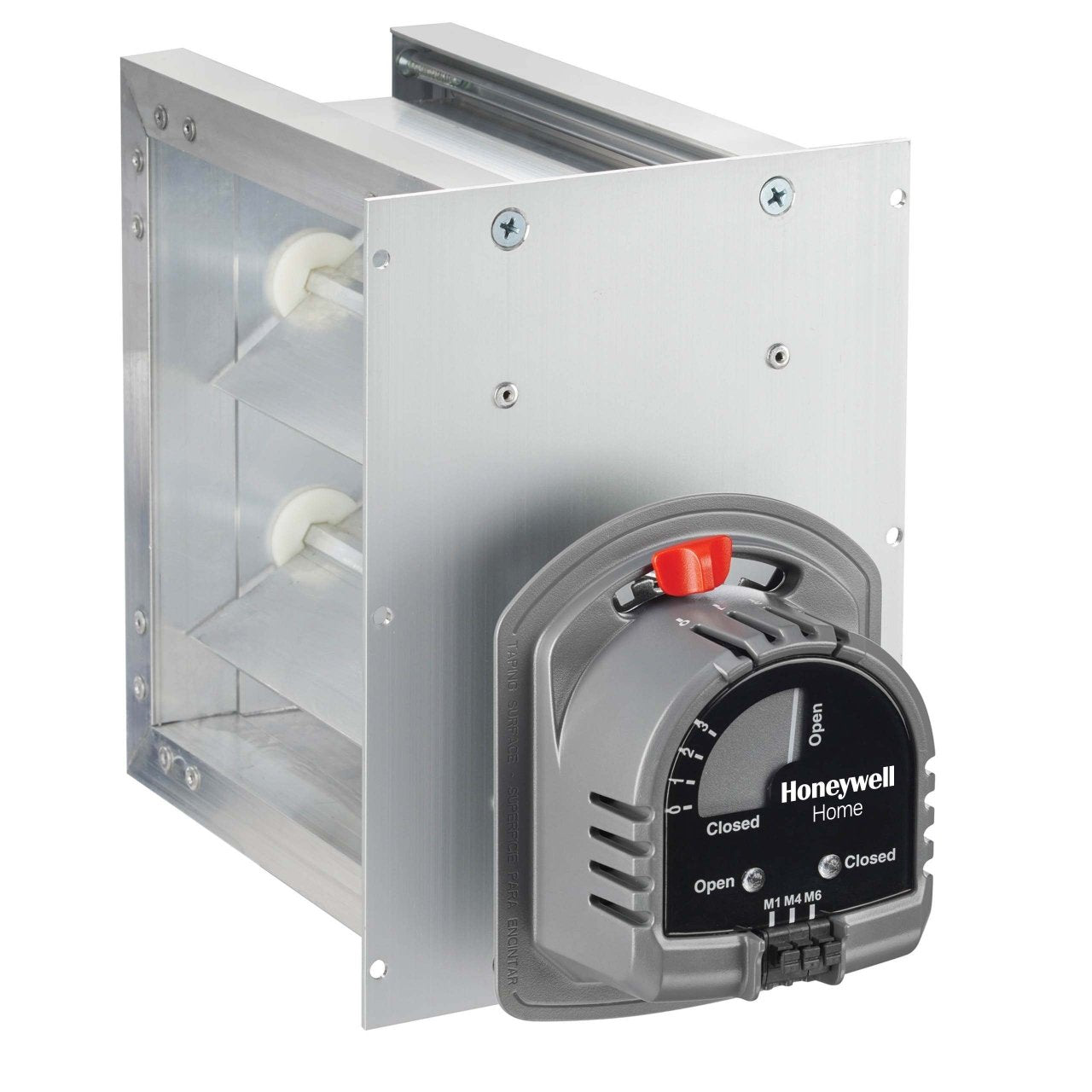

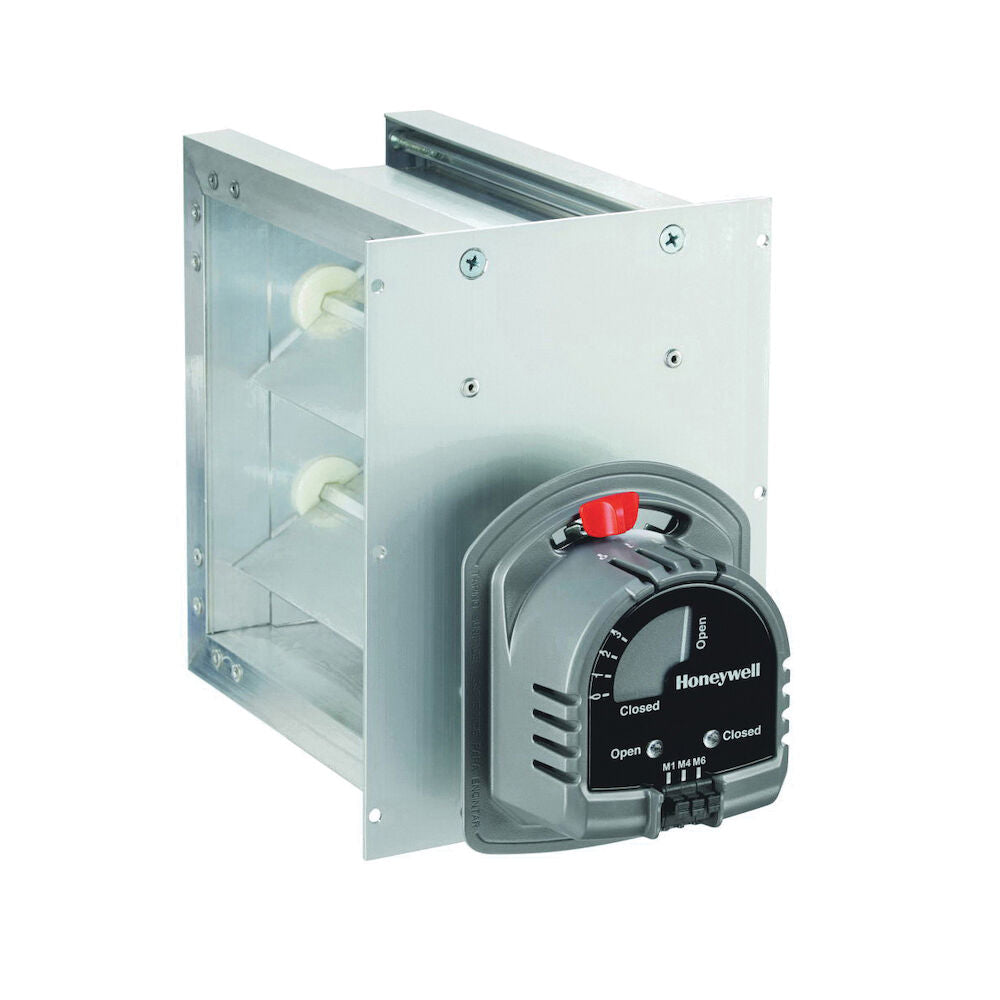

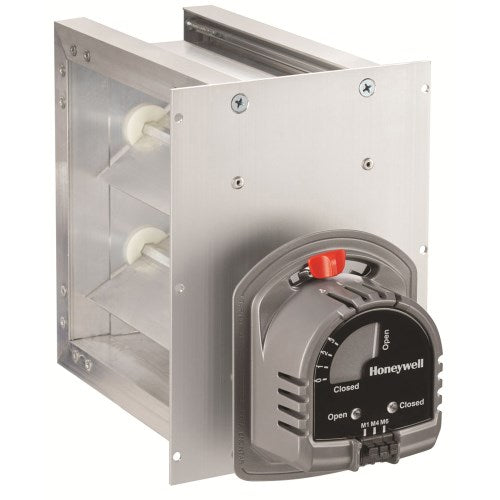

HONEYWELL ZD14X20TZ/U TrueZONE Damper

Product Description

The HONEYWELL ZD14X20TZ/U TrueZONE Damper is designed for zoning and ventilation tasks within HVAC systems. This damper operates at 24 VAC and features a power-close and spring-return mechanism for efficient airflow control. It is built using extruded aluminum to ensure durability and optimal performance.

• Power close and spring open functionality for effective zoning.
• Designed with a rectangular shape and parallel blade action.
• Includes adjustable range stops.

Product Highlights

This damper is ideal for use with TrueZONE and electronic zoning systems, providing reliable control in heating and cooling applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer: Resideo Technologies Inc.

Technical Specifications

• MPN: ZD14X20TZ/U
• Damper Type: Zone
• Damper Shape: Rectangular
• Voltage: 24 VAC
• Amperage Rating: 0.32 A
• Power Consumption: 8 VA
• Motor Type: Power Close/Spring Open
• Rotation Angle: 90 degrees
• Maximum Ambient Temperature: 140 F
• Minimum Ambient Temperature: 40 F
• Maximum Static Pressure: 1 in WC
• Material: Aluminum
• Mounting: Bottom Mount
• Dimensions: 14 in x 20 in x 6.5 in
• Weight: 8.90 lb
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Range Stop: Yes
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
