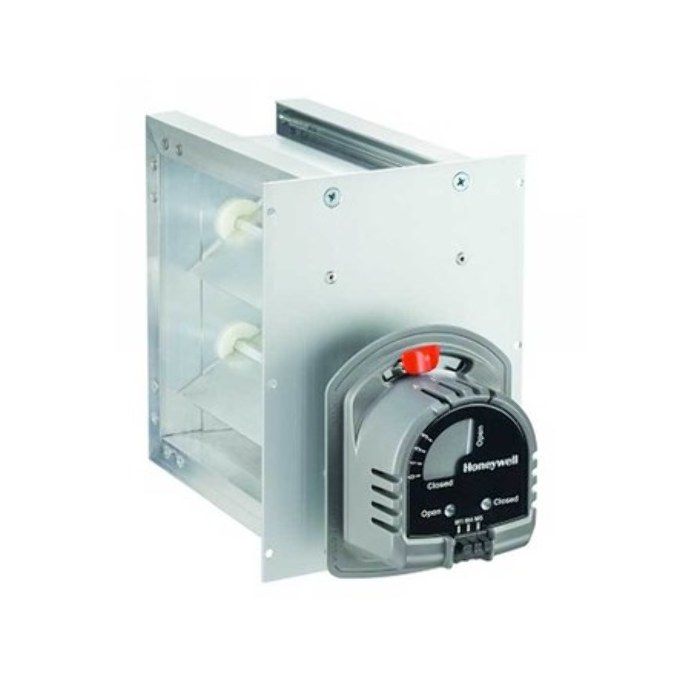

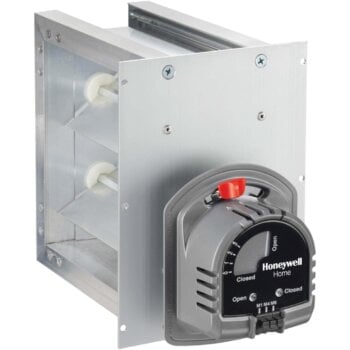

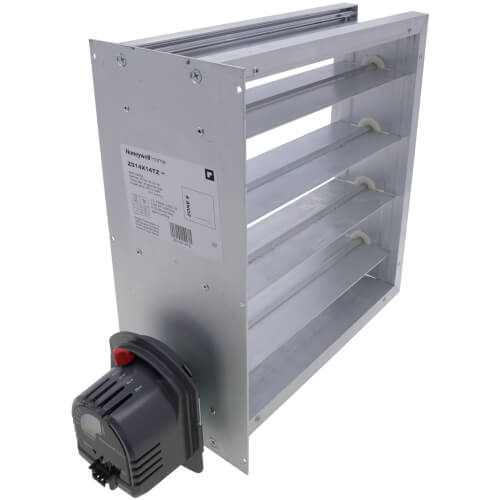

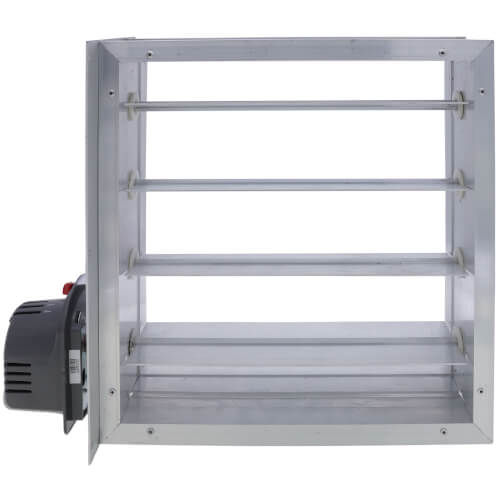

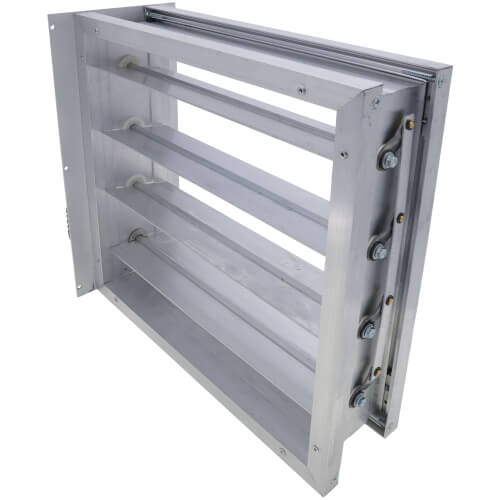

Honeywell ZD14X14TZ/U TrueZONE Damper 24V 14 x 14 Square

Product Description

The Honeywell ZD14X14TZ/U TrueZONE damper is suitable for heating, cooling, and ventilating systems. This product features a twenty-four-volt motor for optimal air circulation control. It is often utilized with TrueZONE and other electronic zoning systems. The damper operates in a power-close and spring-open fashion, ideal for applications requiring a normally-open position. The damper is made with an extruded aluminum frame and parallel blades, ensuring durability and effective operation.

• Features a twenty-four-volt motor for system operation
• Designed for normally-open damper applications
• Constructed with a robust extruded aluminum frame and blades

Product Highlights

This damper allows for easy integration into existing HVAC systems for improved air control.

Product Information

Standard Information

• Brand: Honeywell Home
• Manufacturer: Honeywell

Technical Specifications

• MPN: ZD14X14TZ/U
• Application: Air Quality
• Damper Type: Zone
• Shape: Square
• Size: 14 x 14 inches
• Voltage: 24 VAC
• Motor: Spring Return
• Number of Wires to Motor: 2
• Blade Type: Parallel Blade
• Frame and Blades: Solid Construction Using Extruded Aluminum
• Mounting: Installable in any orientation
• Weight: 7.5 lbs
• Network Zoning: Yes
• Operating Cycle: 60 Hz
• Country of Origin: MEX
