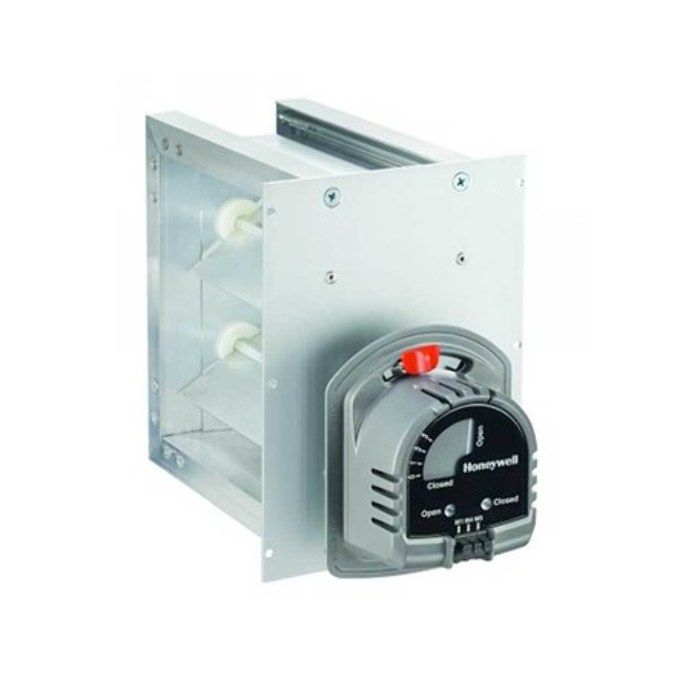

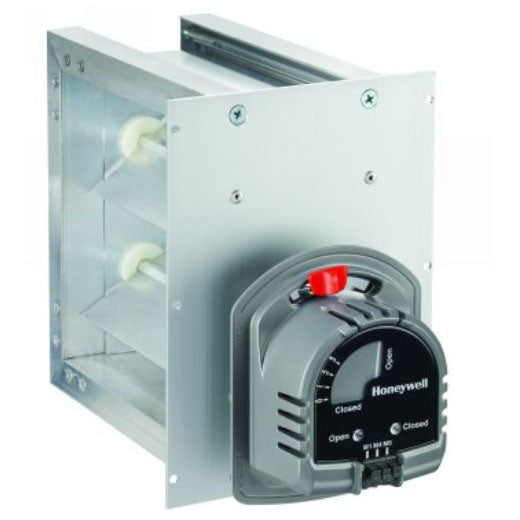

HONEYWELL ZD12X8TZ/U Zone Damper

Product Description

The HONEYWELL ZD12X8TZ/U is a rectangular zone damper for HVAC systems. It is designed with parallel blades to minimize leakage and features a sturdy aluminum frame. This damper allows for flexible installation in any position and is ideal for managing airflow in systems with two to thirty-two zones.

• Rectangular shape with a width of twelve inches and a height of eight inches.
• Built with a parallel blade design for efficiency.
• Normal operating position is open for fail-safe functionality.

Product Highlights

This zone damper is optimal for various HVAC applications. Its easy wiring makes installation straightforward, and its durable construction ensures long-term performance.

Product Information

Standard Information

• Brand: Honeywell Home
• Manufacturer: Honeywell

Technical Specifications

• MPN: ZD12X8TZ/U
• Type: Zone Damper
• Shape: Rectangular
• Product Width: 12 Inches
• Product Height: 8 Inches
• Voltage: 24 VAC
• Normal Position: Open
• Mounting Type: Side
• Material: Solid Aluminum
• Frame Composition: Extruded Aluminum
• Blade Composition: Extruded Aluminum
• Operating Temperature: 40 to 140 Deg F
• Motor Rating: 0.32 Amp at 24 Volt 60 Hertz
• Cycle/Hertz: 60 Hz
• Weight: 2.6565 Pounds
• Shipping Weight: 2.7 Pounds
• Shipping Height: 15 5/8 Inches
• Shipping Width: 6 1/2 Inches
• Shipping Depth: 8 Inches
