Honeywell ZD12X8TZ/U Truezone damper 24V (12 in x 8 in)

Product Description

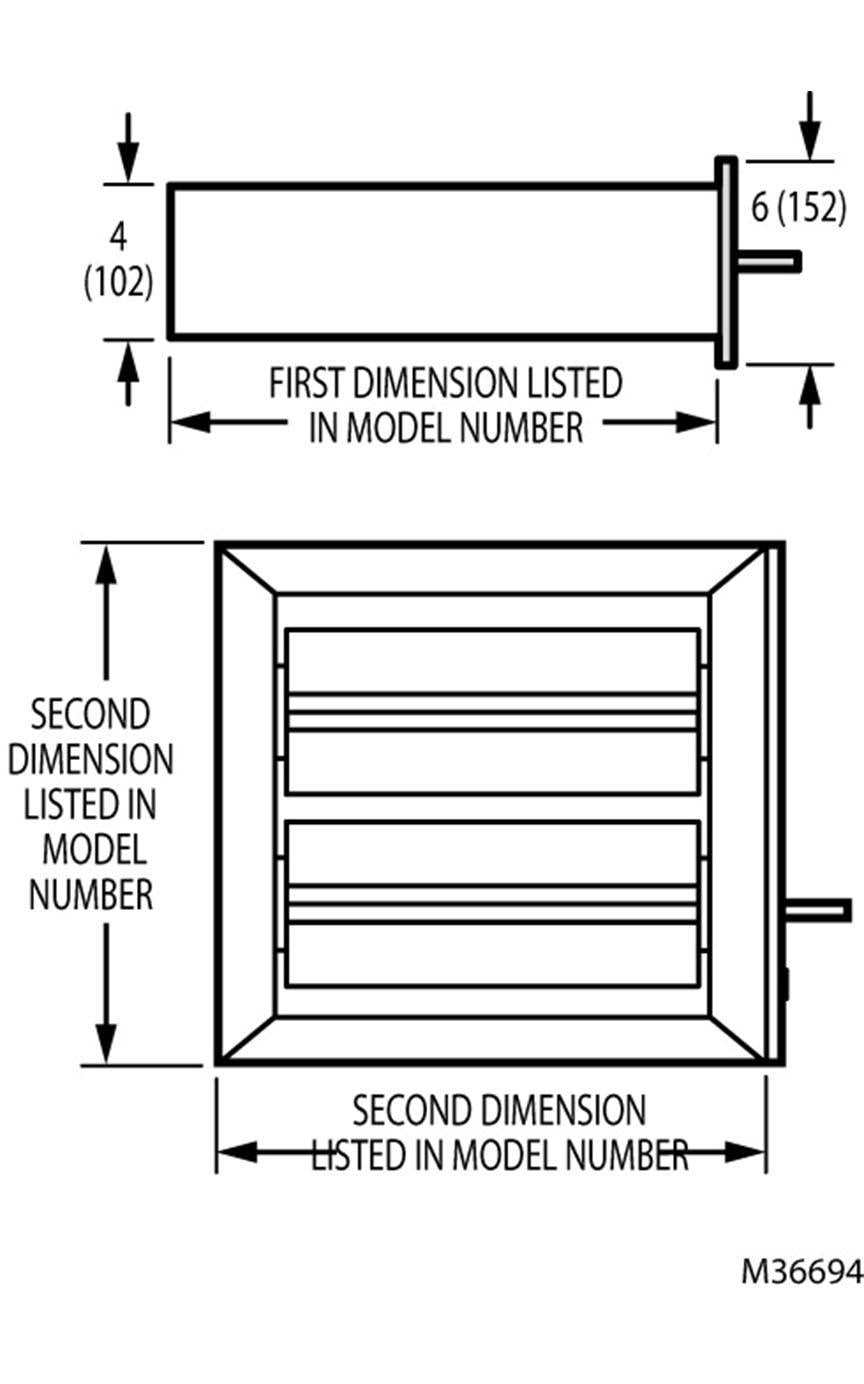

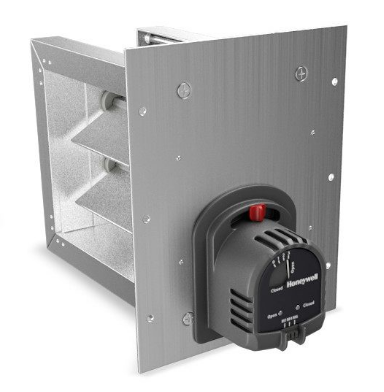

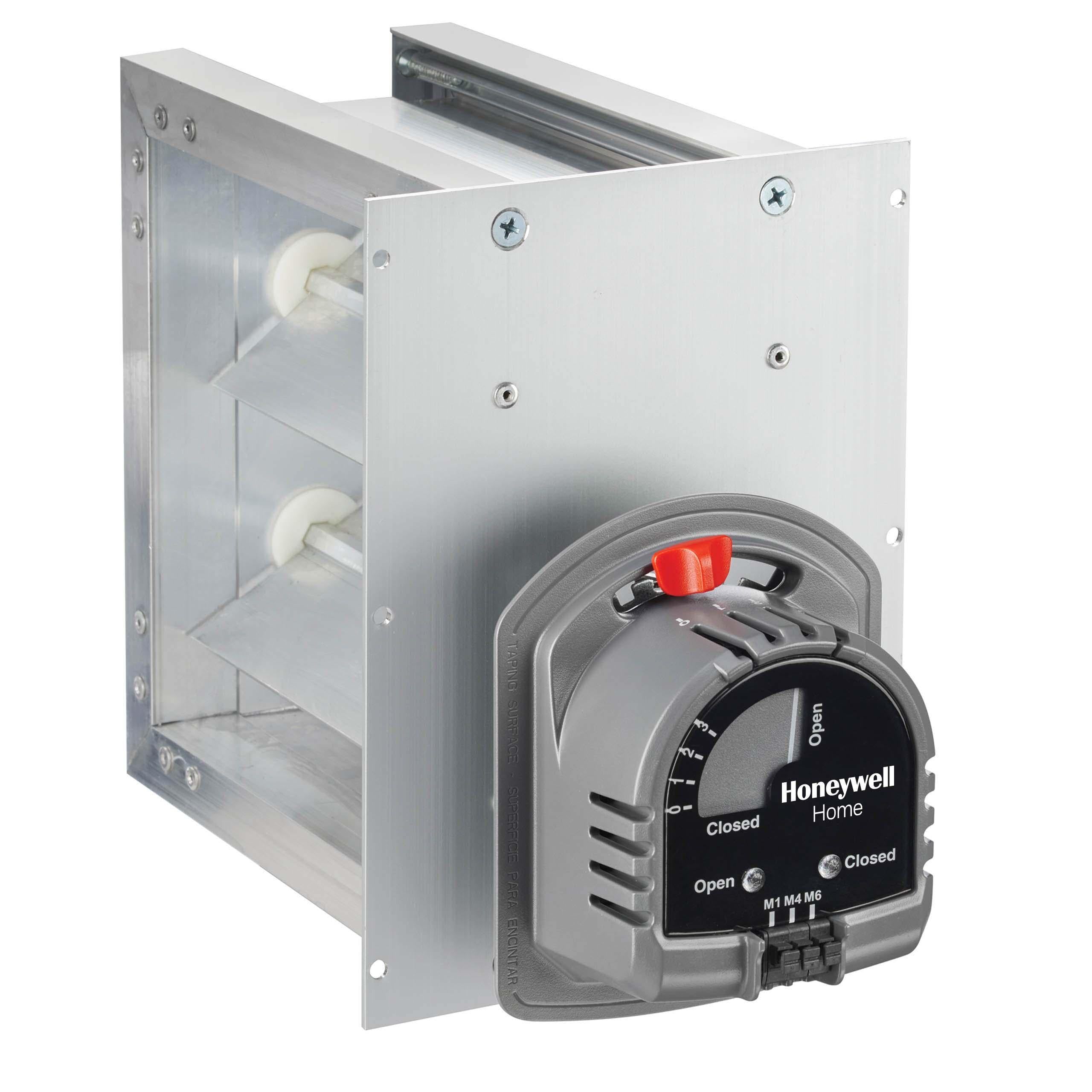

Honeywell ZD12X8TZ/U is a Truezone ZD Series 12 in x 8 in rectangular zone damper with a 24 V actuator configured for power-closed / spring-open operation. The parallel blade damper has an extruded aluminum frame and blades, provides 90� rotation with approximately 0.32 A motor draw, and includes a molded-plastic actuator housing with LED open/close indicators. Wiring is two-wire with an optional M4 terminal for LED indication; timing is 30 s power closed and 10 s spring return.

• 24 V AC actuator, ~0.32 A motor draw, 90� rotation; power closed / spring open operation
• 12 in x 8 in rectangular parallel blade damper with extruded aluminum frame and blades; leakage <1% at 0.5 in WC
• Included molded-plastic actuator with LED open/close indicators; 2-wire wiring with optional M4 LED terminal; actuator 8 VA, 71 in-oz torque; 30 s/10 s timing

Product Highlights

12 in x 8 in Truezone parallel blade zone damper with 24 V spring-return actuator and LED position indication

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD12X8TZ/U
• Country of Origin: Import

Technical Specifications

• Brand: Honeywell
• Manufacturer: Honeywell Home
• MPN: ZD12X8TZ/U
• Series: ZD Series
• Product Type: Zone damper
• Size: 12 in x 8 in
• Shape: Rectangular
• Blade Action: Parallel
• Material: Extruded aluminum frame and blades
• Input Voltage: 24 V AC
• Motor Current: 0.32 A
• Operation: Power closed / spring open
• Rotation Angle: 90 deg
• Timing: 30 s (power closed) / 10 s (spring return)
• Wiring: 2-wire (optional M4 third wire for LED indication)
• Actuator: Included; molded plastic housing with LED open/close indicators
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator: Mechanical visual position indicator and LED indication
• Electrical Connections: M1-Power / M6-Common / M4-LED indication terminal
• Operating Temperature: 32 to 120 F
• Weight: 5.3 lb
• Country of Origin: Import
• UPC: 08526794803
