HONEYWELL ZD10X24TZ/U Zone Damper 24V

Product Description

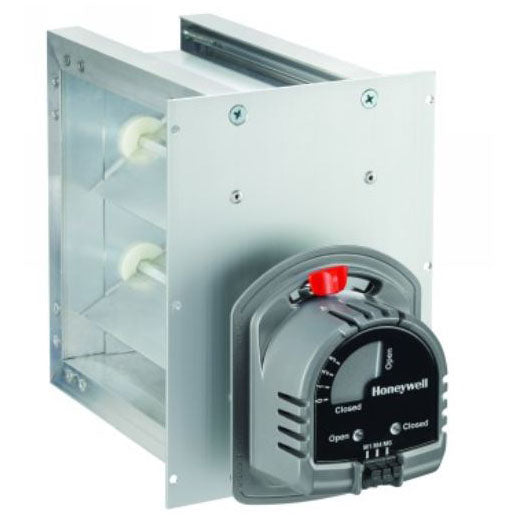

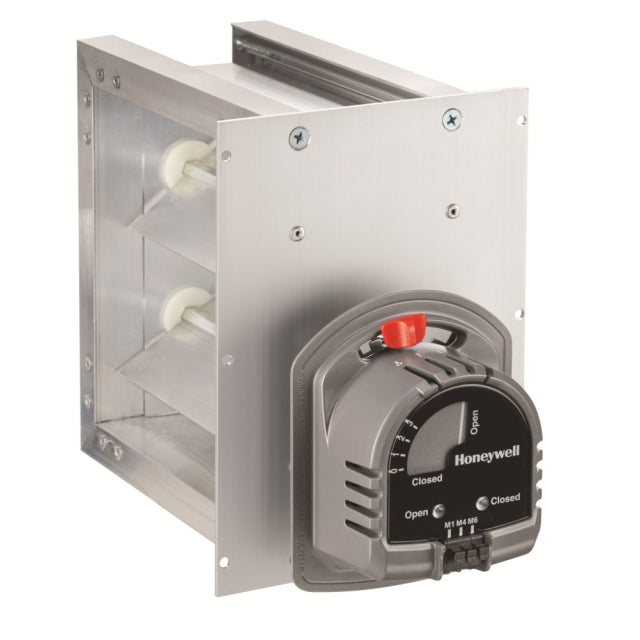

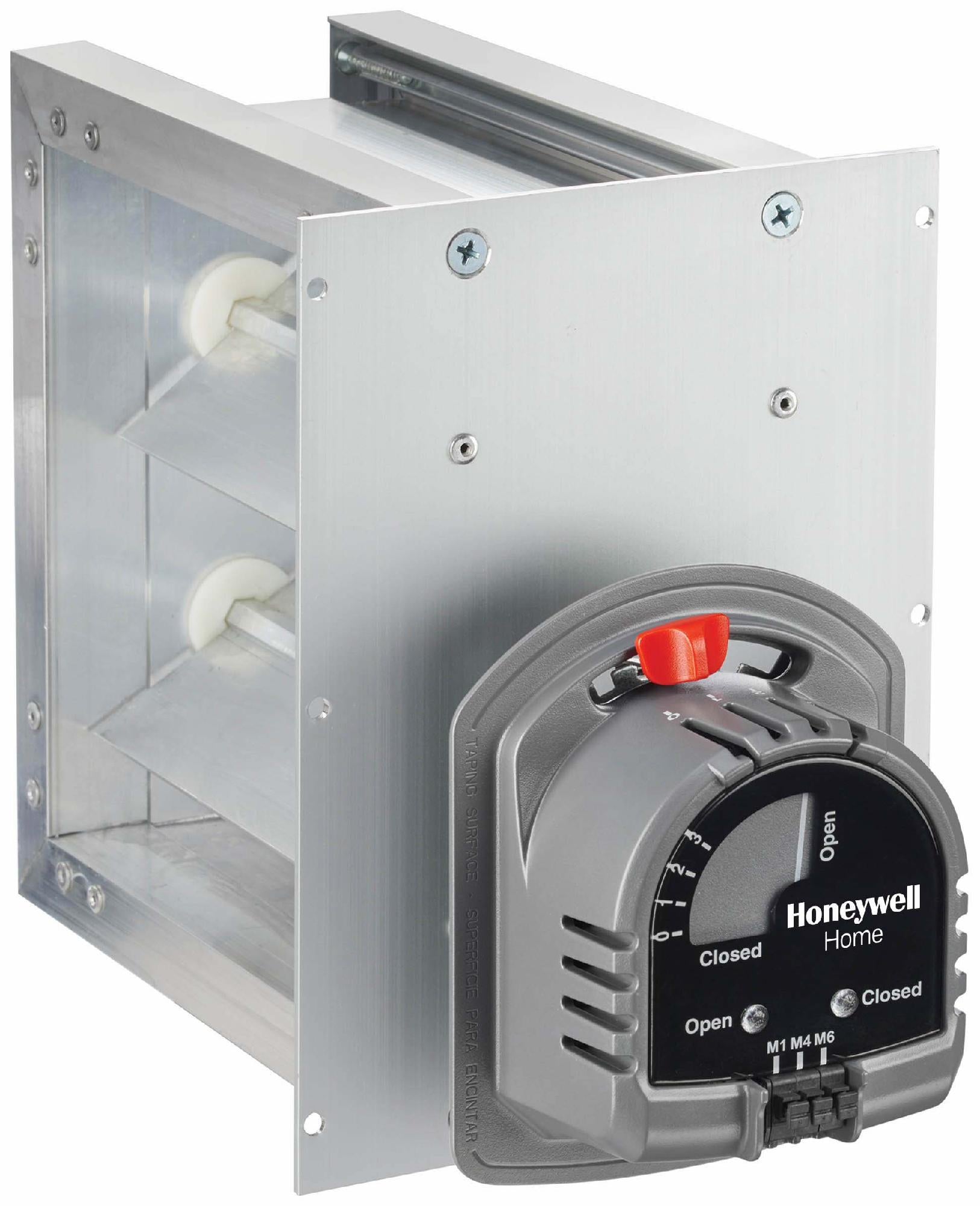

The HONEYWELL ZD10X24TZ/U is a zone damper designed for HVAC applications. This rectangular, parallel blade damper is built with an aluminum frame. It features a twenty-four volt motor that operates with power-closed and spring-open functionality. It is compatible with TrueZONE and other electronic zoning systems to help control air circulation effectively.

• Constructed for low leakage performance.
• Equipped with a reliable twenty-four volt spring return motor.
• Includes a mechanical visual position indicator for easy monitoring.

Product Highlights

This damper is suitable for various HVAC setups. It allows for efficient control of airflow in residential environments.

Product Information

Standard Information

• Brand: Honeywell Home
• Manufacturer Name: Honeywell

Technical Specifications

• Type: Rectangular, Adjustable, Parallel Blade
• Application: Circulating Air in HVAC System, Residential
• Overall Size: 10 x 24 inches
• Opening Size: 10 inches x 24 inches
• Material: Solid Aluminum
• Motor Rating: 24 Volt AC 60 Hertz 8 Volt Amp
• Input Voltage: 24 VAC
• Motor Finish: Zinc Plated Steel/Anodized Aluminum
• Temperature Rating: 40 to 140 Degrees F
• Item Weight: 3.9 kg
• Item Dimensions: L 10 x W 4 x H 24 inches
• Motor Mounting Type: Bottom
• Motor Torque Rating: 71 Inch-Ounce
• Max Static Pressure Rating: 1 Inch WC
• Leakage: Less than 1 Percent at 1/2 Inch WC
• Parts Warranty: 5 Years
• Motor Type: Power Open/Spring Closed
• Rotation Angle: 90 Degrees
