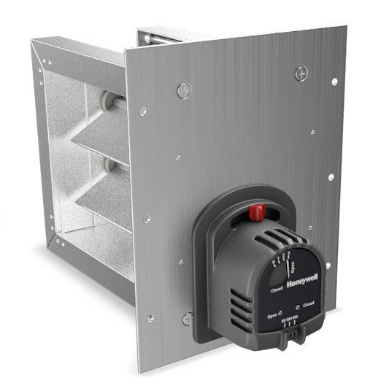

Honeywell ZD10X22TZ/U TrueZone damper 24 V (10 x 22)

Product Description

Honeywell ZD10X22TZ/U is a TrueZone 10 x 22 in power-close, spring-open zone damper with an included 24 V 2-wire actuator and LED indicator lights. The damper uses parallel extruded-aluminum blades with Kevlar gearing, features a mechanical visual position indicator and adjustable range stops, and provides 90° rotation with a 0.32 A motor and 30 second power-open / 10 second spring-return timing. It is designed for TrueZONE and other electronic zoning systems and installs in any orientation.

• 24 V 2-wire actuator included; power closed / spring open operation with LED indication
• Parallel extruded-aluminum blades, Kevlar gearing, mechanical visual position indicator, adjustable range stops
• Motor: 0.32 A, 90° rotation; timing 30 sec power open / 10 sec spring return; installs in any orientation

Product Highlights

10 x 22 in TrueZone zone damper with 24 V 2-wire actuator and LED, parallel aluminum blades, 90° rotation (0.32 A), 30s/10s timing

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD10X22TZ/U
