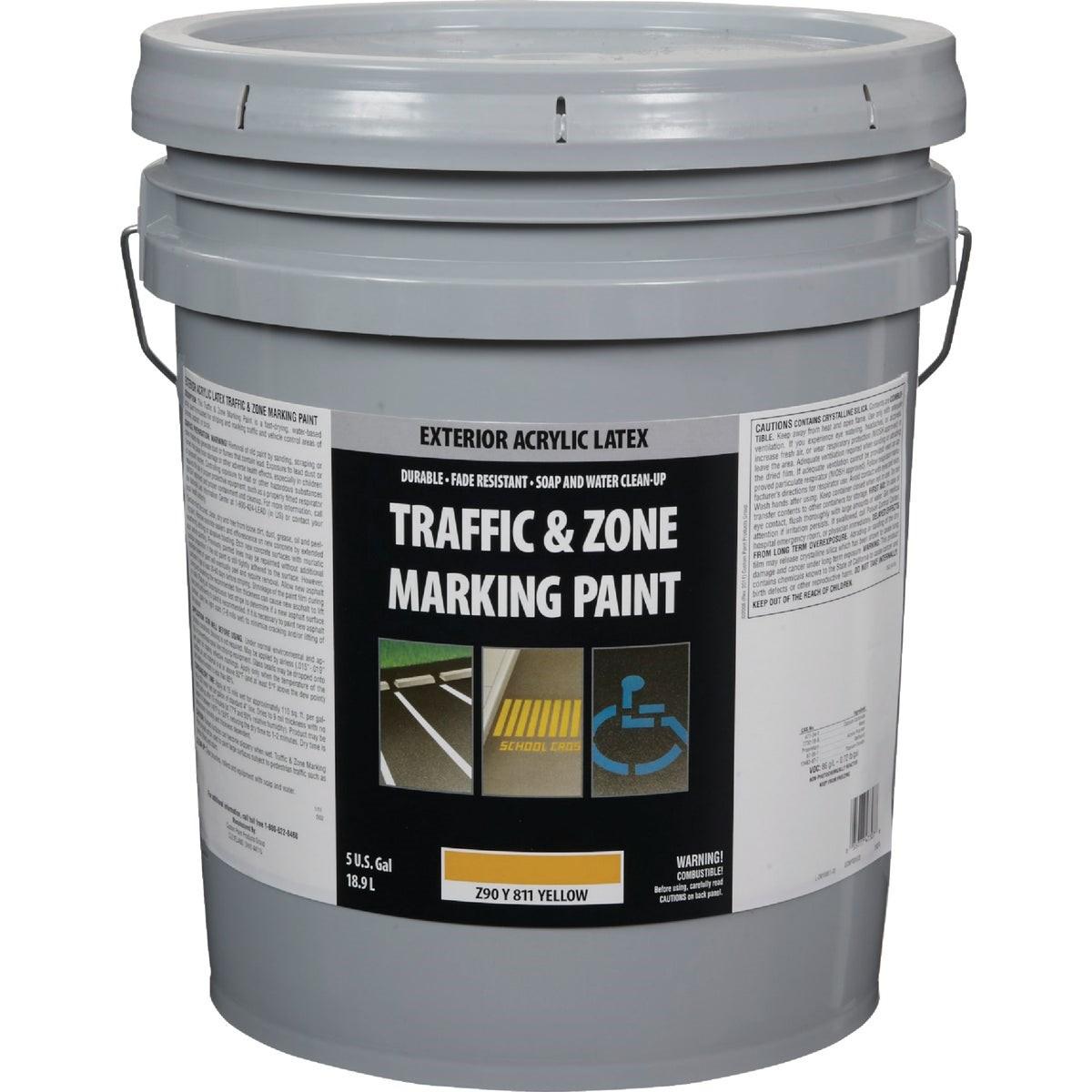

Honeywell Z90Y00811-20 Traffic Yellow Latex Paint 5 Gal

Product Description

The HONEYWELL Z90Y00811-20 is a traffic zone yellow latex marking paint formulated for high-visibility line striping on streets, parking lots, and paved surfaces. This water-based, fast-drying formula reaches a normal dry time of 10 minutes at 77 degrees F and 50% humidity. It meets or exceeds current VOC regulations and complies with Federal Specification TT-P-01952E Types I and II. Applied by airless or conventional line sprayer, it delivers a flat finish suited for durable pavement markings. Each 5-gallon unit covers approximately 300 to 350 square feet per gallon or roughly 320 lineal feet when striping a 4-inch-wide line.

This paint is intended for use on cured asphalt, concrete, brick, and other street or highway surfaces. It is commonly applied by pavement marking contractors, facilities maintenance crews, and parking lot striping professionals. The formula supports ambient, airless, conventional, or heated application methods, allowing flexibility across different job-site conditions. Do not apply to wet surfaces. This product is not suitable for brush or roller application.

Key Features

• Fast dry time of 10 minutes at 77 degrees F and 50% humidity
• Meets Federal Specification TT-P-01952E Types I and II
• Meets or exceeds current VOC regulations
• Coverage of approximately 300 to 350 square feet per gallon
• Compatible with airless line sprayers at 1800 to 2700 psi using a .015 to .019 inch tip
• Compatible with conventional line sprayers at 20 to 80 psi atomization pressure
• Water-based formula cleans up with soap and warm water

Compatibility

Designed for use on cured asphalt, concrete, brick, and other paved street or highway surfaces. Not suitable for uncured or wet surfaces.

Installation Notes

Application is performed by pavement marking professionals or facilities maintenance personnel using airless or conventional line striping equipment. Shut off and clean all spray equipment immediately after use — flush with mineral spirits to prevent internal rusting. The paint may be thinned with water up to 12.5% by volume if required for spray consistency. Do not apply with a brush or roller, as this product is engineered specifically for sprayer application.

Technical Specifications

• Color: Traffic Zone Yellow
• Base: Latex (Water-Based)
• Finish: Flat
• Container Size: 5 Gallon
• Coverage: 300 to 350 square feet per gallon
• Lineal Coverage (4-inch stripe): Approximately 320 lineal feet per gallon
• Dry Time: 10 minutes at 77 degrees F and 50% humidity
• Application Pressure (Airless): 1800 to 2700 psi
• Tip Size (Airless): .015 to .019 inches
• Application Pressure (Conventional): 20 to 80 psi atomization
• Thinning: Water, up to 12.5% by volume
• VOC Compliance: Meets or exceeds current VOC regulations
• Federal Specification: TT-P-01952E Types I and II
• Weight: 69.2 pounds
• UPC: 00035777473078

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Z90Y00811-20
