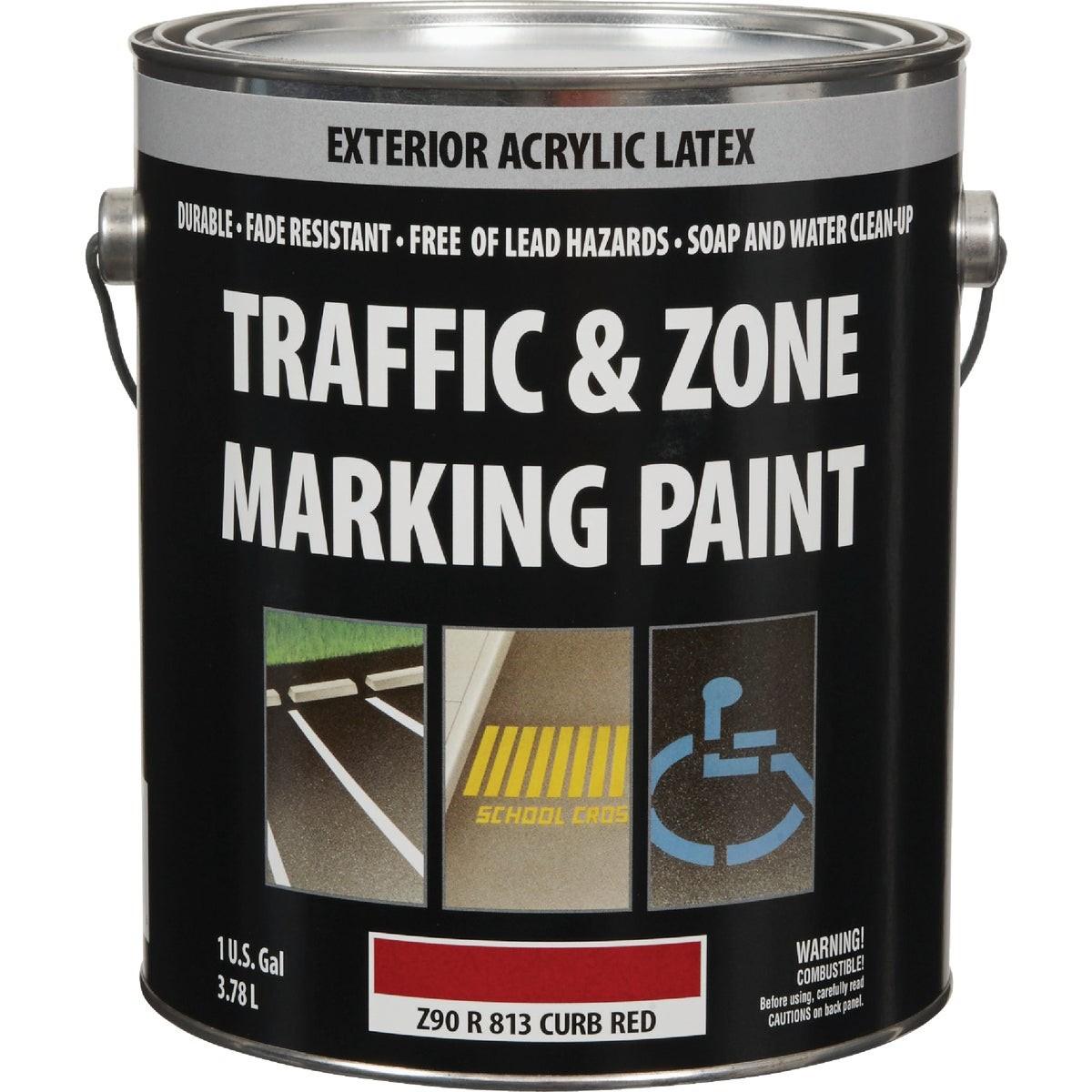

Honeywell Z90R00813-16 Red Latex Traffic Paint 1 Gallon

Product Description

The HONEYWELL Z90R00813-16 is a fast-drying, water-based latex traffic paint formulated in traffic and curb red for use on streets, parking lots, and highway surfaces. Applied with airless or conventional line sprayers, it reaches a touch-dry state in approximately 10 minutes at 77 degrees F and 50% relative humidity. Coverage runs 300 to 350 square feet per gallon, or roughly 320 lineal feet when laid as a 4-inch stripe. The formula meets Federal Specification TT-P-01952E Types I and II and complies with current VOC regulations. It dries to a flat finish and is suitable for cured asphalt, concrete, and brick.

This paint is intended for exterior pavement marking applications including roadway lane lines, curb markings, and parking lot striping. It is suited for municipal, commercial, and industrial marking projects where a fast-dry, low-VOC red paint is required. The product is sold by the gallon and applied via mechanical line striping equipment. It is not appropriate for brush or roller application and must not be applied to wet surfaces.

Key Features

• Fast dry time: approximately 10 minutes at 77 degrees F and 50% humidity
• Coverage: 300 to 350 square feet per gallon or 320 lineal feet at a 4-inch stripe width
• Meets Federal Specification TT-P-01952E Types I and II
• Complies with current VOC regulations
• Compatible with airless sprayers at 1800 to 2700 psi using a 0.015 to 0.019 inch tip, and conventional sprayers at 20 to 80 psi atomization pressure
• Water cleanup: thin up to 12.5% by volume with water; clean hands and tools with soap and warm water

Compatibility

Designed for use on cured asphalt, concrete, brick, and other standard street or highway pavement surfaces. Apply with an airless or conventional line sprayer only.

Installation Notes

Application must be performed by trained striping equipment operators following applicable state and local traffic control standards. Do not apply to wet or uncured surfaces. Flush spray equipment with mineral spirits immediately after use to prevent internal rusting. Keep work area clear of traffic during application and allow full dry time before opening the surface to vehicle traffic.

Technical Specifications

• Color: Traffic and Curb Red
• Finish: Flat
• Base: Latex (Water-Based)
• Container Size: 1 Gallon
• Coverage: 300 to 350 square feet per gallon
• Dry Time: Approximately 10 minutes at 77 degrees F, 50% relative humidity
• Application Method: Airless line sprayer (1800 to 2700 psi, 0.015 to 0.019 inch tip) or conventional line sprayer (20 to 80 psi atomization pressure)
• Thinning: Water, up to 12.5% by volume
• Specification Compliance: Federal Specification TT-P-01952E Types I and II; current VOC regulations
• Weight: 13.313 pounds
• UPC: 00035777457856

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Z90R00813-16
