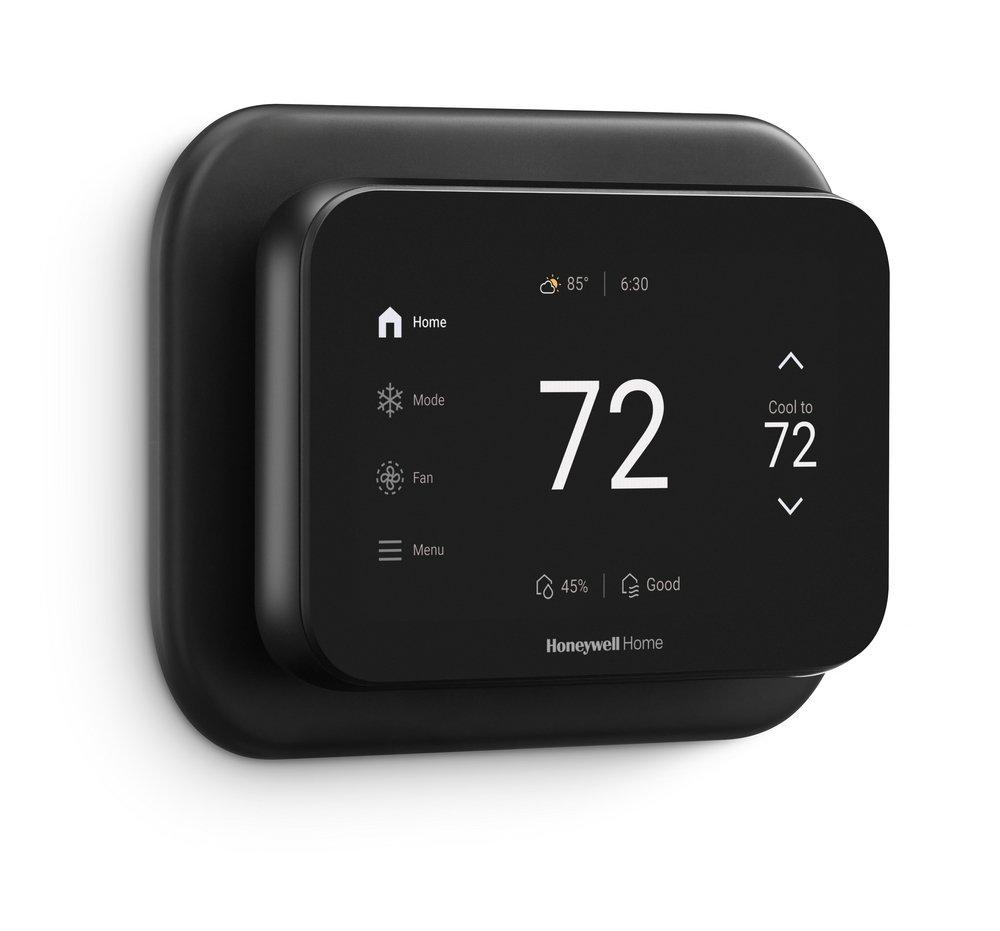

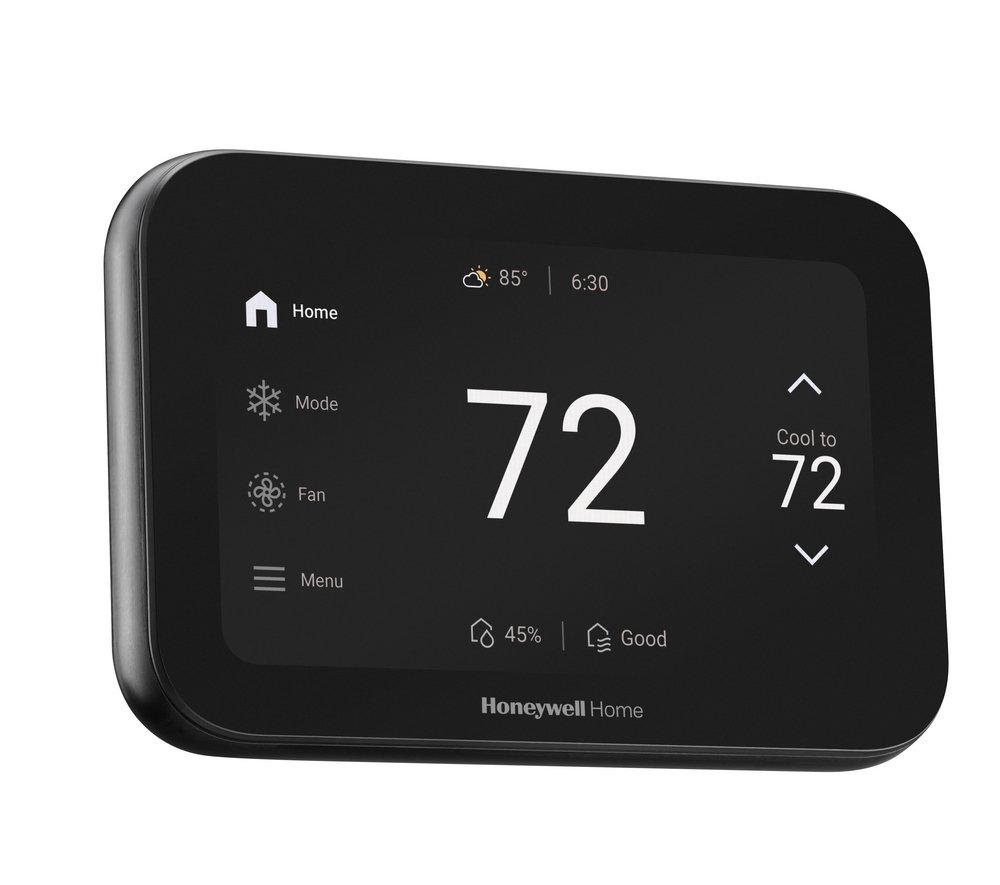

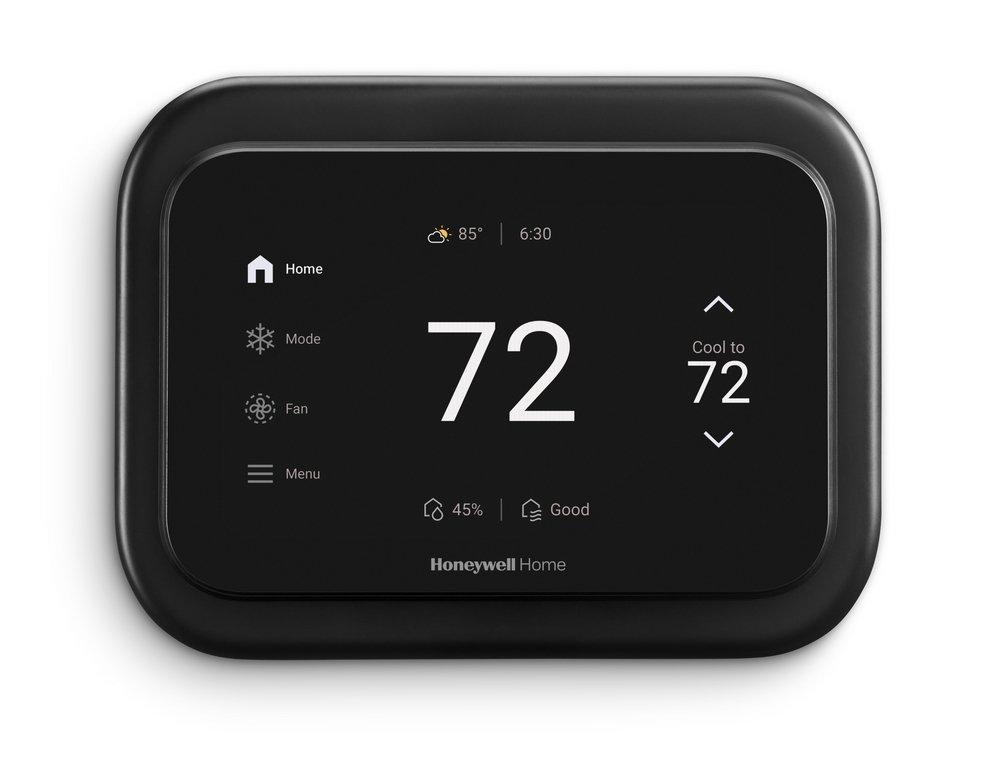

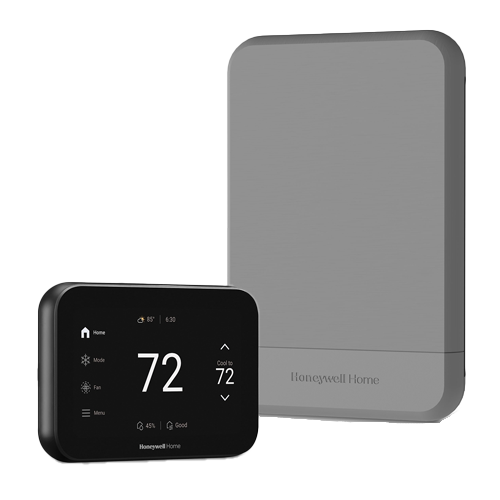

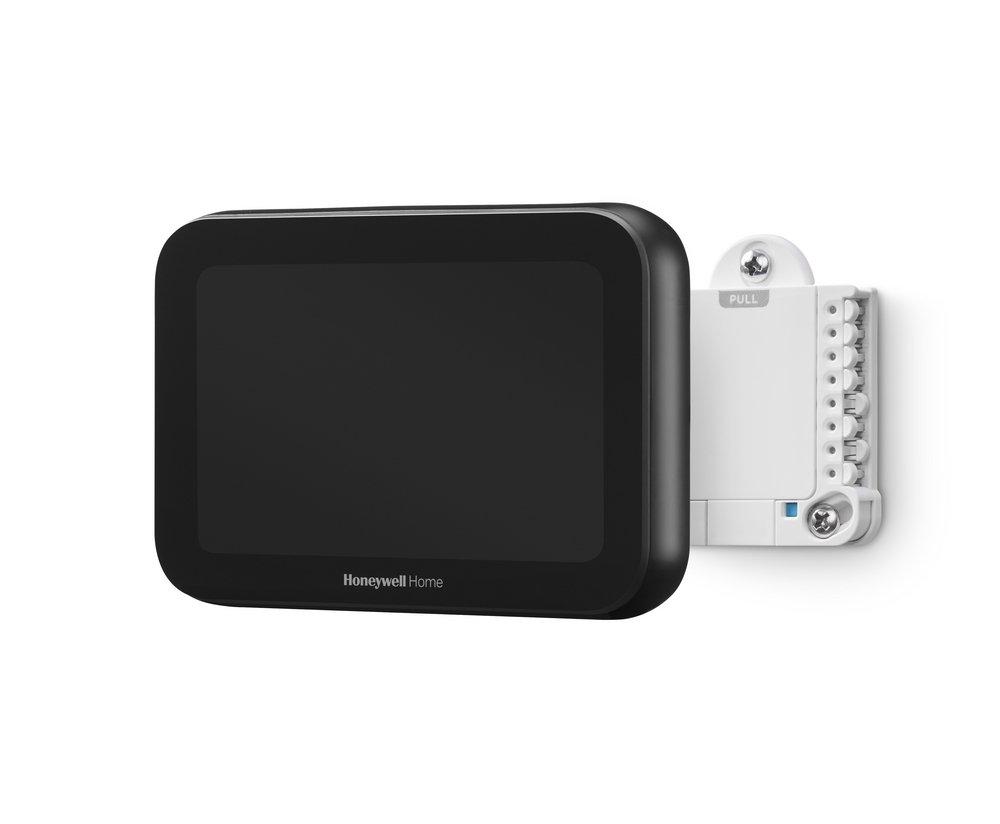

Honeywell YTHX1200B8 ElitePRO S1200 Smart Thermostat W/ EIM (4H/2C Heat Pump & 3H/3C Conventional)

Product Description

The Resideo/Honeywell Home ElitePRO S1200 Smart Thermostat YTHX1200B8 is a pro-grade solution for homeowners and HVAC professionals. It features a 5-inch full-color touchscreen, dual-band Wi-Fi, and RedLINK 3.0 wireless support. The thermostat integrates with HVAC systems, remote room sensors, and Resideo’s Pro-IQ service. It supports up to 4 heating / 2 cooling stages on heat-pump systems, or 3 heating / 3 cooling stages on conventional systems.

• Large 5” Custom Touchscreen with customizable idle screen.
• Advanced IAQ Monitoring tracks humidity, VOCs, and CO2 levels.
• Video Doorbell Integration via First Alert or Ring doorbells.

Product Highlights

The ElitePRO S1200 offers smart energy features, professional-grade connectivity, and multi-stage HVAC support for optimal comfort and energy efficiency.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: YTHX1200B8
• Country of Origin: Mexico

Technical Specifications

• Application: Residential, Light Commercial
• Collection: ElitePRO™
• Color Finish Category: Blacks
• Depth: 0.96"
• Display Type: Digital
• Energy Star Compliant: Yes
• Height: 3.54"
• Humidity Sensing: Yes
• Power Source: Electric
• Programmability: Programmable
• Smart Home Compatibility: Google Home, Amazon Alexa, Apple HomeKit, Matter, First Alert App, Ring, Redlink
• Smart Home Enabled: Yes
• Stages: 4H/2C Heat Pump, 3H/3C Conventional
• Touch Screen: Yes
• Volts: 24V
• Width: 5.25"
• Wireless Communication: Bluetooth/Wi-Fi
• Input Voltage: 20-30V AC
• Installation Type: Professional Install
• Mount Type: Horizontal Mount, Junction Box Mount, Wall Mount
