Product Description

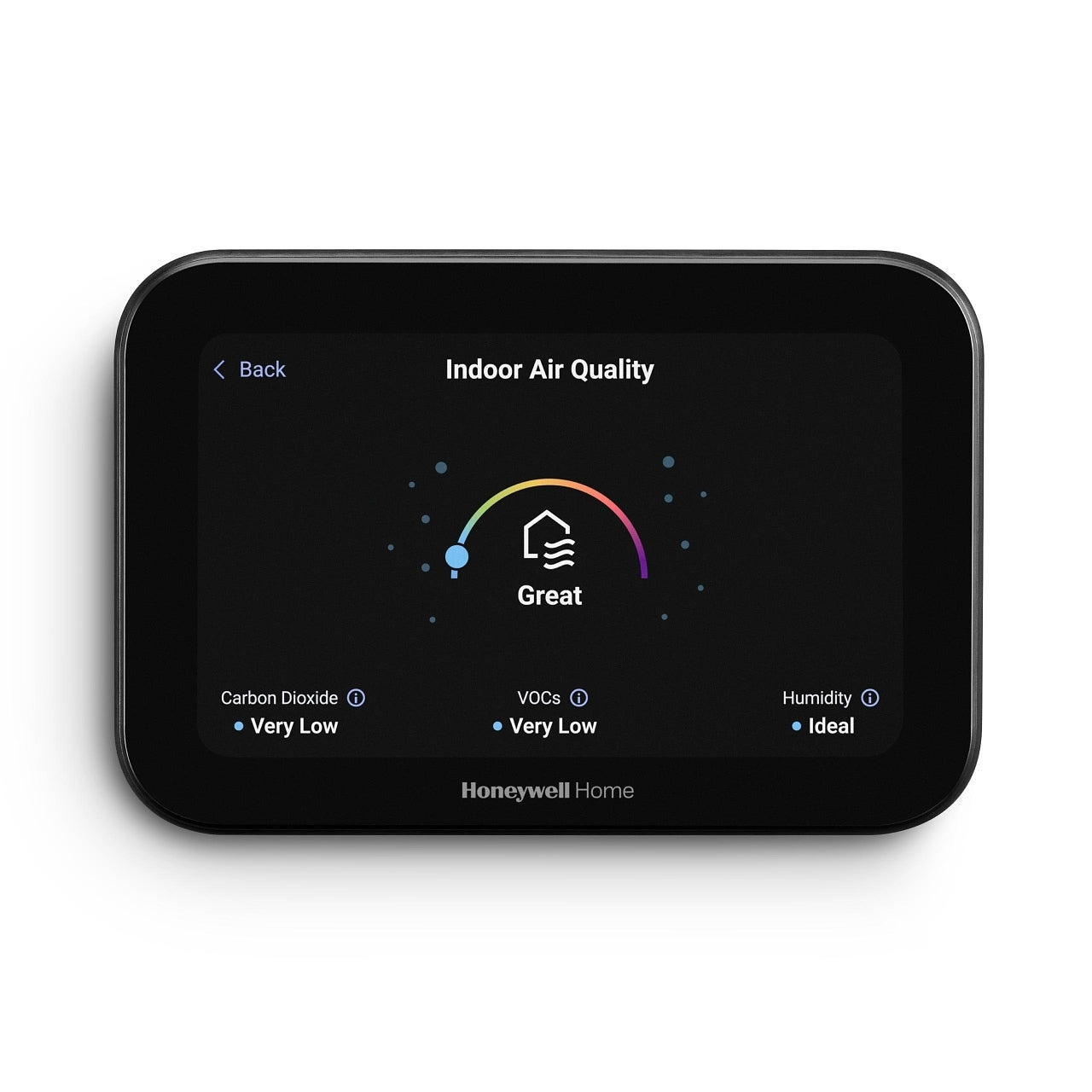

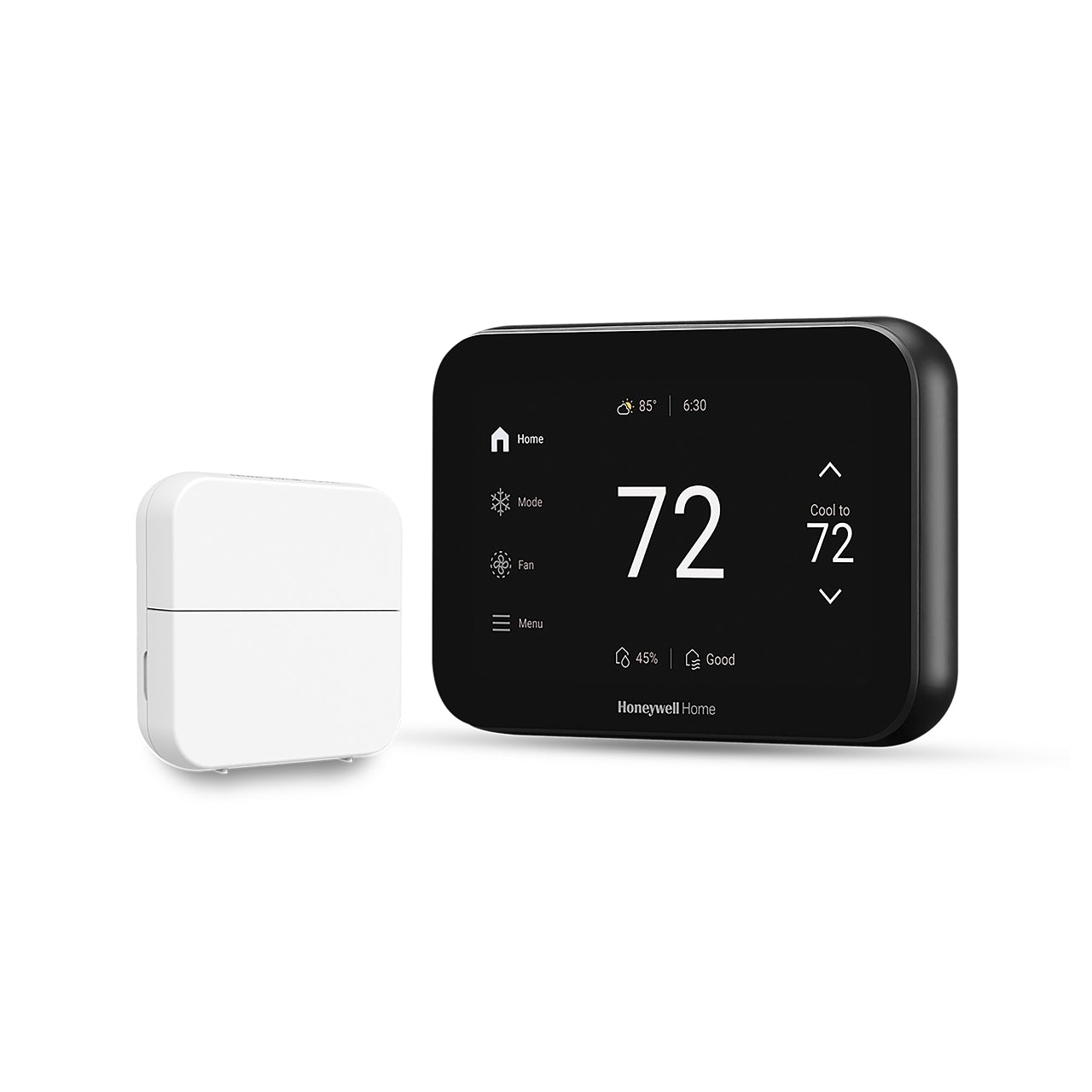

The HONEYWELL YTHX1200B6/U Elite Pro S1200 smart thermostat delivers a modern design with a 5" customizable touchscreen and advanced indoor air quality (IAQ) control. Compatible with First Alert and Ring streaming doorbells, it allows users to see and speak to visitors. Suitable for residential or light commercial use with 24 Vac systems.

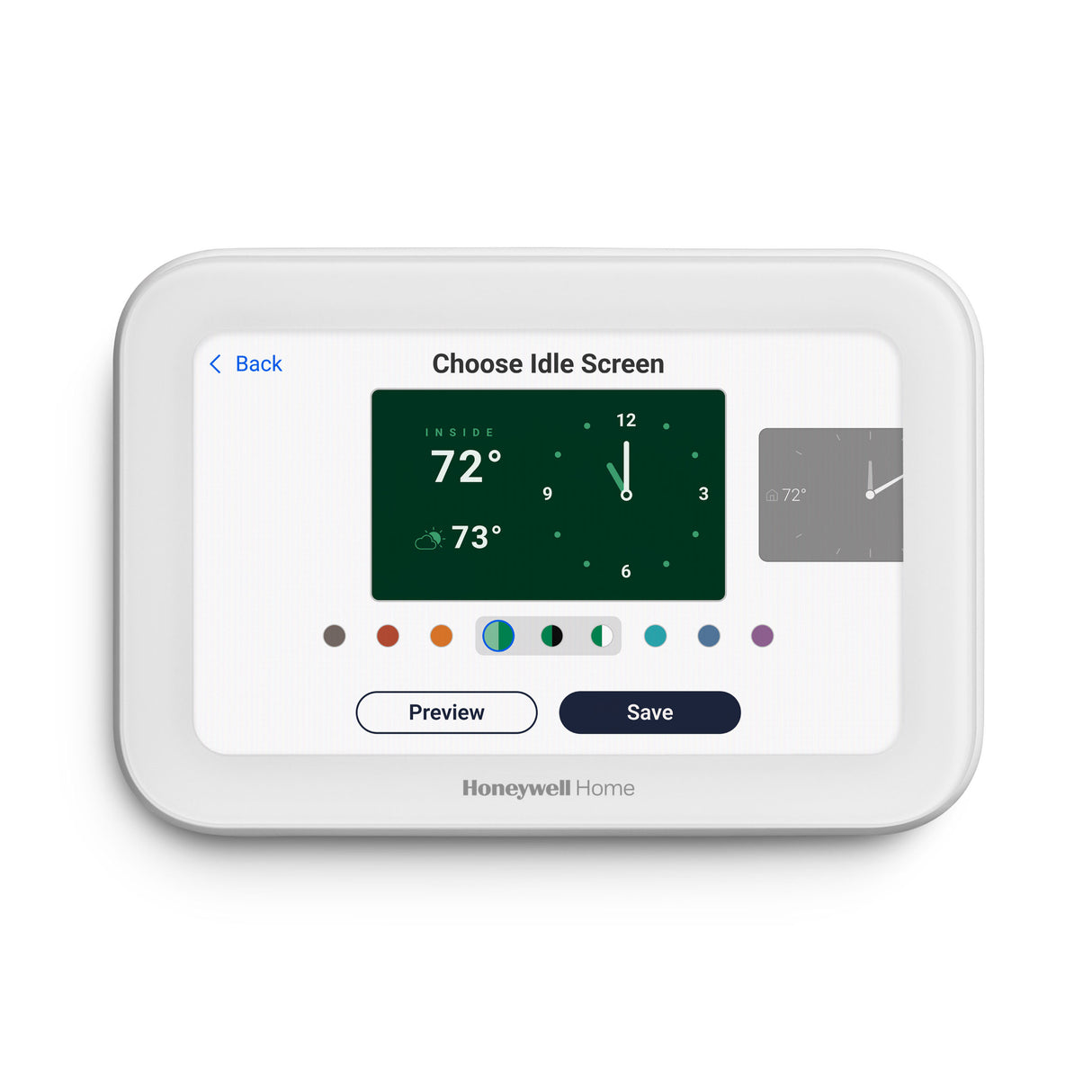

- Features a customizable 5" touchscreen display.
- Offers advanced indoor air quality (IAQ) monitoring and control.
- Is ENERGY STAR certified for energy efficiency.
Product Highlights
This smart thermostat integrates with video doorbells and offers smart home capabilities for residential and light commercial applications.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: YTHX1200B6/U
-
Country of Origin: Mexico
Technical Specifications
-
Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
-
Product Features: Time-Based or Smart Away programming for energy efficency, Includes Onboard Radar Sensor, Allows Air quality monotoring, VX1 or Ring Doorbell Compatibility
-
Stages: Up to 4H/2C Heat Pump or 3H/3C Conventional
-
Smart Home Integration: Yes
-
Display Size: 5 sq. in
-
Touchscreen: Yes
-
Display Language: Display selectable for English, French, or Spanish
-
Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat
-
Energy Star Certified: Yes
-
Heat-Cool Changeover: Auto or Manual
-
Power Source: Hard Wired
-
Warranty: 5 Years
-

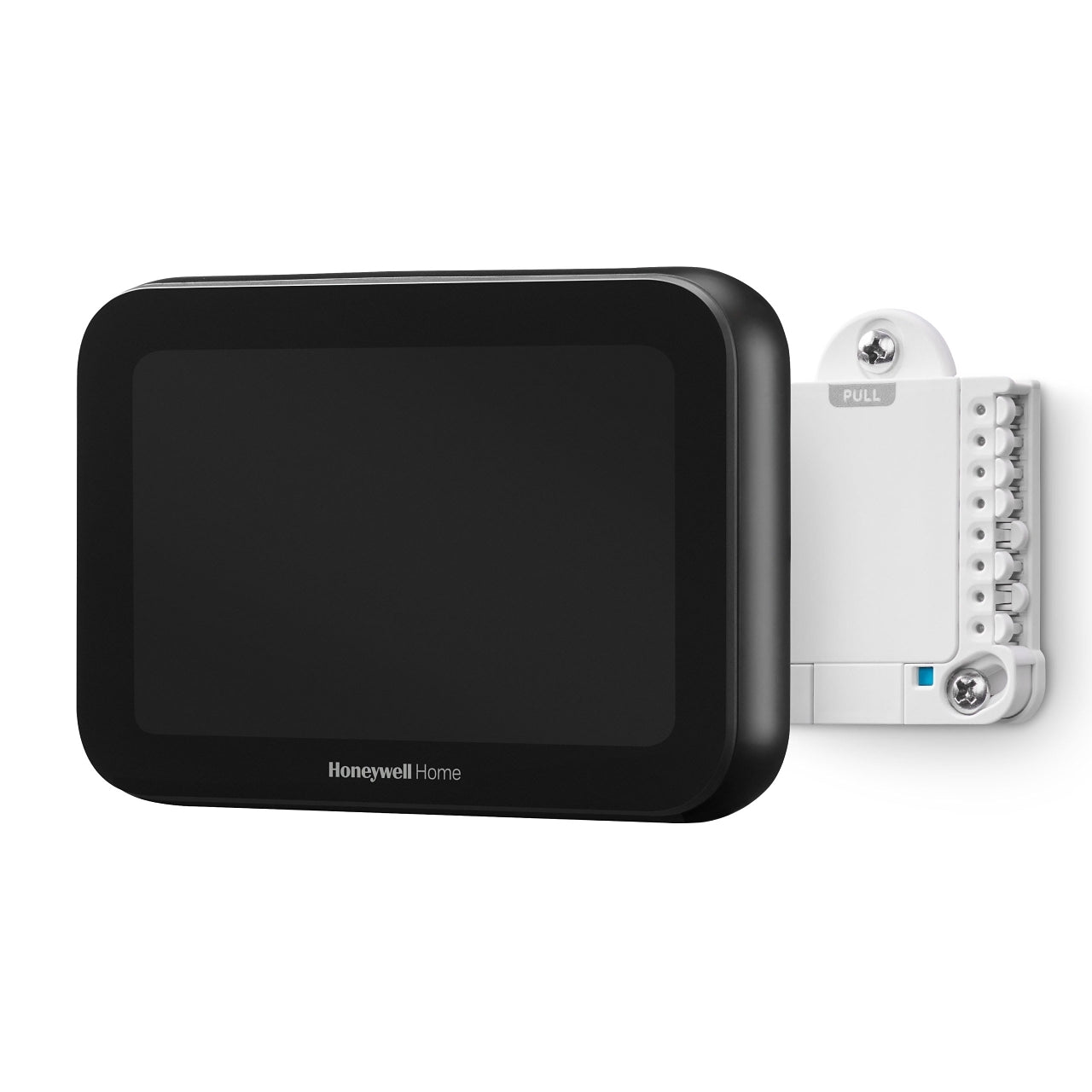

Includes: ElitePRO™ S1200 Smart Thermostat in Black, Wireless indoor sensor, UWP® Wall Plate, Cover Plate with J-Box Adapter, Hardware, Literature
-
For Use With: C7189R3010-2 room sensor
-
WiFi: Yes
-
RedLINK: Yes, 3.0
-
Ambient Operating Temperature (Max): 102 °F, 38.9 °C
-
Ambient Operating Temperature (Min): 37 °F, 2.8 °C
-
Operating Relative Humidity (Max): 90 % RH
-
Operating Relative Humidity (Min): 5 % RH
-
Auto Changeover: Yes
-
Humidity Set point (Max): 90% RH
-
Humidity Set point (Min): 0% RH
-
Number of Fan Speeds: Up to 3 Fan Speeds for Fan Coil Units
-
Power Supply Frequency: 60 Hz
-
Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
-
Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10 °C
-
Shipping and Storage Temperature (Max): 120 °F, 49 °C
-
Shipping and Storage Temperature (Min): -20 °F, -29 °C
-
Mounting Location: J-Box, Horizontal Mount to wall
-
Product Height: 3.54 in, 90 mm
-
Product Width: 5.25 in, 133 mm
-
Product Depth: 0.96 in , 24 mm
-
Input Voltage: 20-30V AC
-
Installation Type: Professional Install
-
Mount Type: Horizontal Mount, Junction Box Mount, Wall Mount
-
Limited Warranty: 5-Year
-
Compatibility: C7189R3010-2 Room Sensor
-
Display: 5 in Display
-
Type: Touchscreen
-
Connectivity: Bluetooth, Redlink, Matter, Wi-Fi
-
Series: ElitePRO
-
Humidity Range: 5 to 90% RH noncondensing
-
Number of Stages: 4H/2C Heat Pump or 2H/4C conventional
