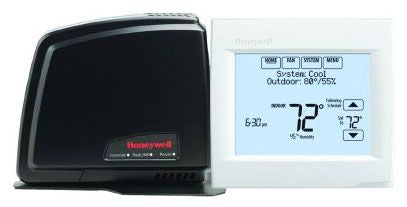

Honeywell YTH8321R1002/U Thermostat 18 to 30 VAC

Product Description

The Honeywell YTH8321R1002/U is a versatile thermostat suitable for both residential and commercial use. This device operates at a voltage range of eighteen to thirty volts AC or seven hundred fifty millivolts. It is designed to support three heating and two cooling systems in heat pump applications, along with two heating and two cooling systems in conventional setups. The thermostat includes an auto/manual changeover feature, making it adaptable to various heating and cooling requirements.

• Compatible with standalone systems or with the optional THM5421R1021 equipment interface module.
• Equipped with RedLINK technology for wireless communication.
• Temperature settings range from forty to ninety degrees Fahrenheit for heating and fifty to ninety-nine degrees Fahrenheit for cooling.

Product Highlights

The Honeywell thermostat offers easy installation and programming options, making it ideal for contractors and homeowners alike.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Name: Honeywell International Inc. (Resideo Technologies)

Technical Specifications

• Type: 7 Day Programmable/Non-Programmable
• Voltage Rating: 18 to 30 Volt AC / 750 Millivolt
• Temperature Rating: 32 to 120 Deg F
• Size: 4-15/16 Inch Width x 1-1/8 Inch Depth x 4-5/8 Inch Height
• Display Type: 10 Square Inch Touchscreen
• Power Method: Battery/Hardwired
• Humidity Rating: 5 to 90 Percent RH (Non-Condensing)
• Technology: RedLINK
