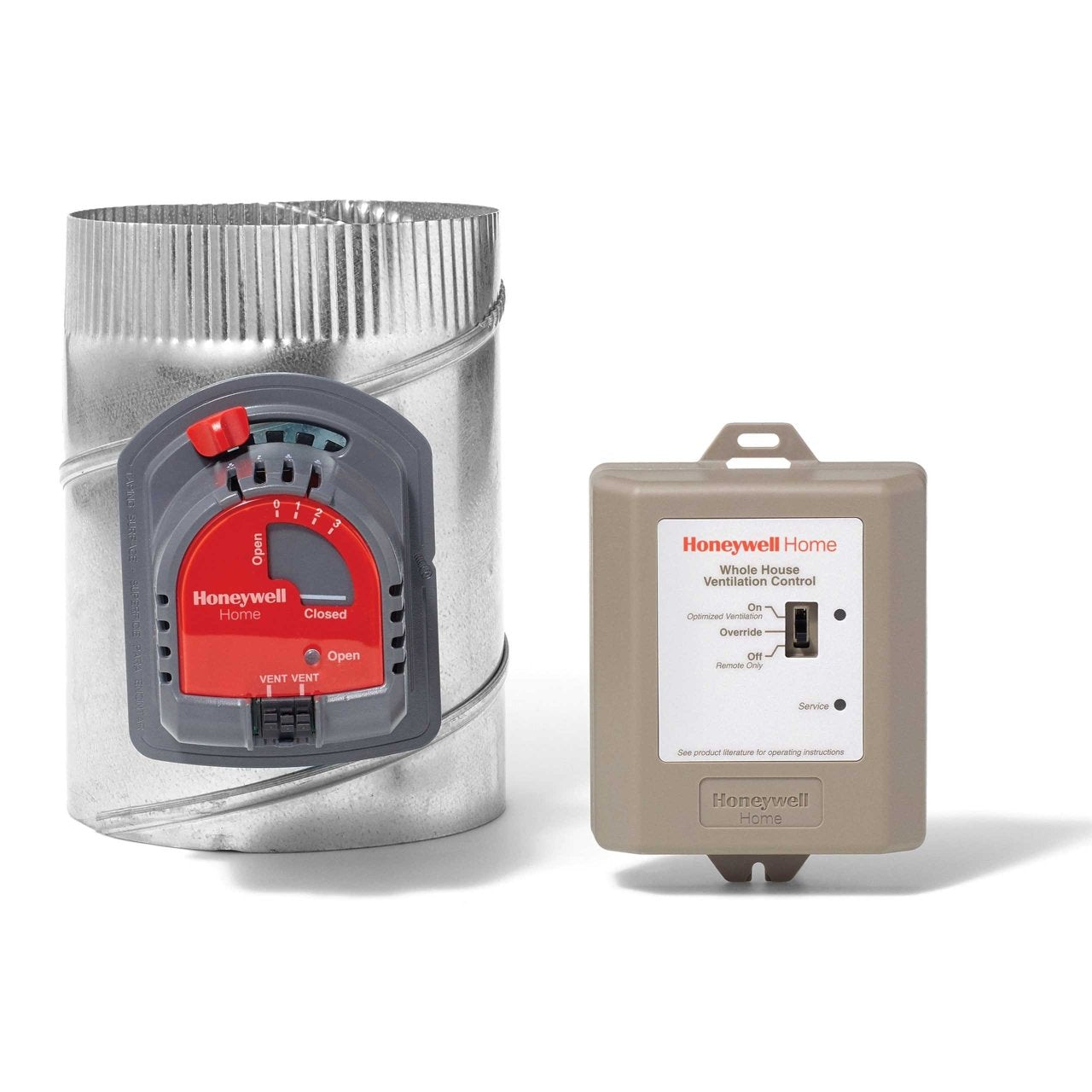

Honeywell Y8150A1017/U Fresh Air Ventilation System 50 to 160 cfm

Product Description

The Honeywell Y8150A1017/U Fresh Air Ventilation System provides fresh air to a home. The control operates a fresh air intake damper and, when necessary, activates the main HVAC blower to efficiently meet ASHRAE ventilation rates. It is designed to meet local ventilation codes and standards, including ASHRAE 62.2-2010 standard.

• Designed to help meet local ventilation codes and standards, including ASHRAE 62.2-2010 standard.
• Microcontroller optimizes the air delivery schedule to make efficient use of normal HVAC run times.
• Easy-to-use input dials allow customized ventilation for each installation.

Product Highlights

The Y8150A1017/U Fresh Air Ventilation System provides optimal ventilation for improved indoor air quality. It includes the TrueZONE damper and is designed for energy efficiency.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Y8150A1017/U
• Country of Origin: MX

Technical Specifications

• Building Square Footage (Max): 4600
• Current Draw: 0.6 A

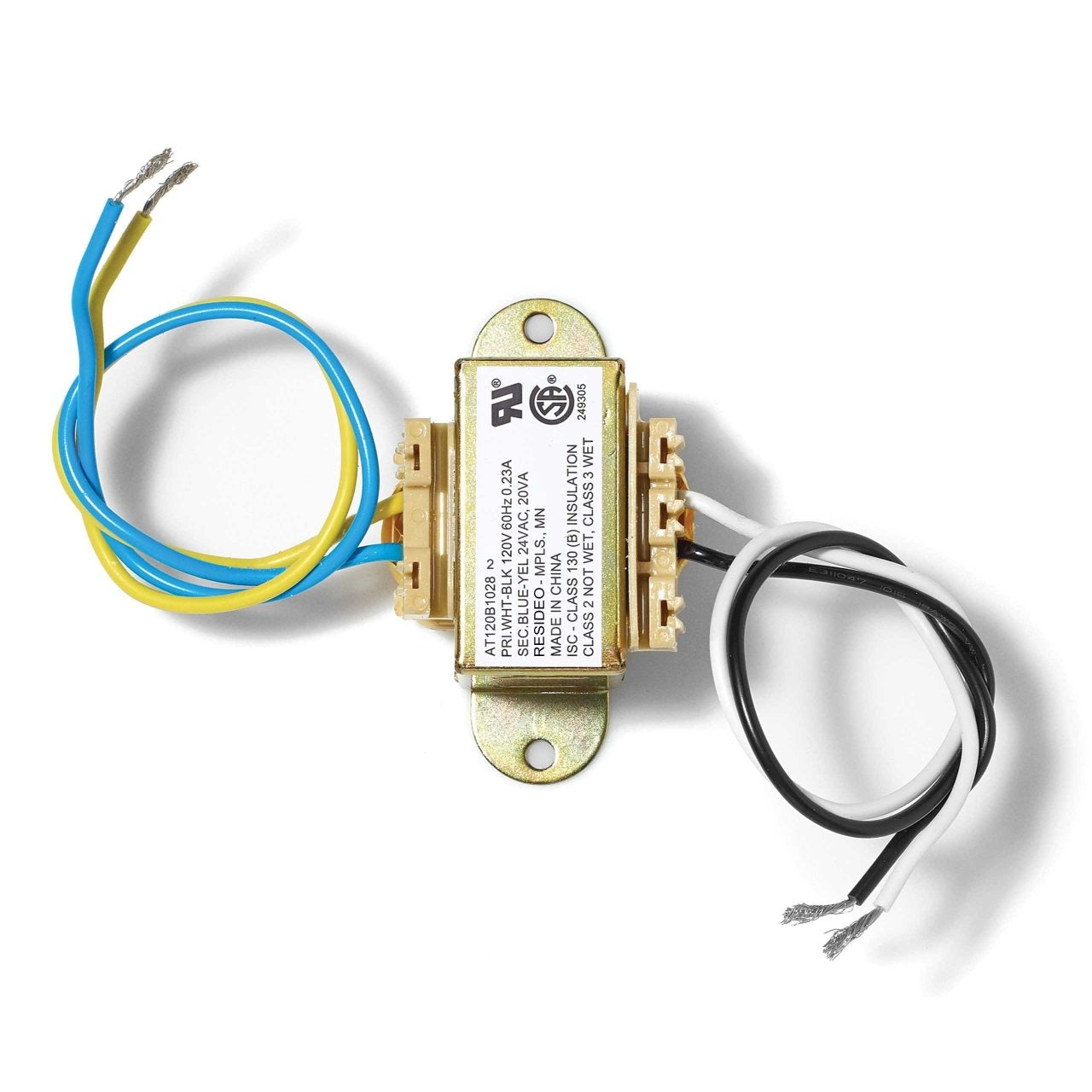

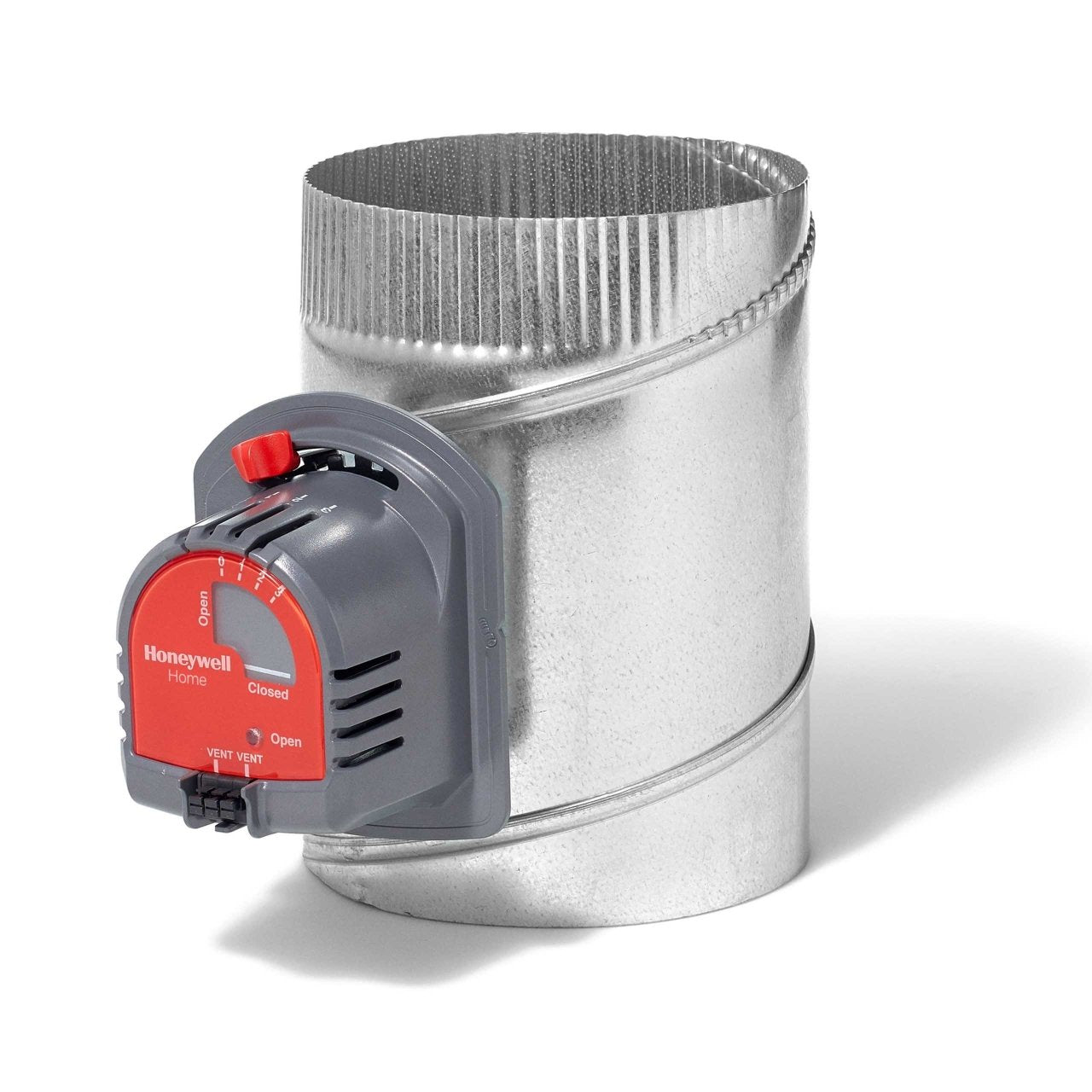

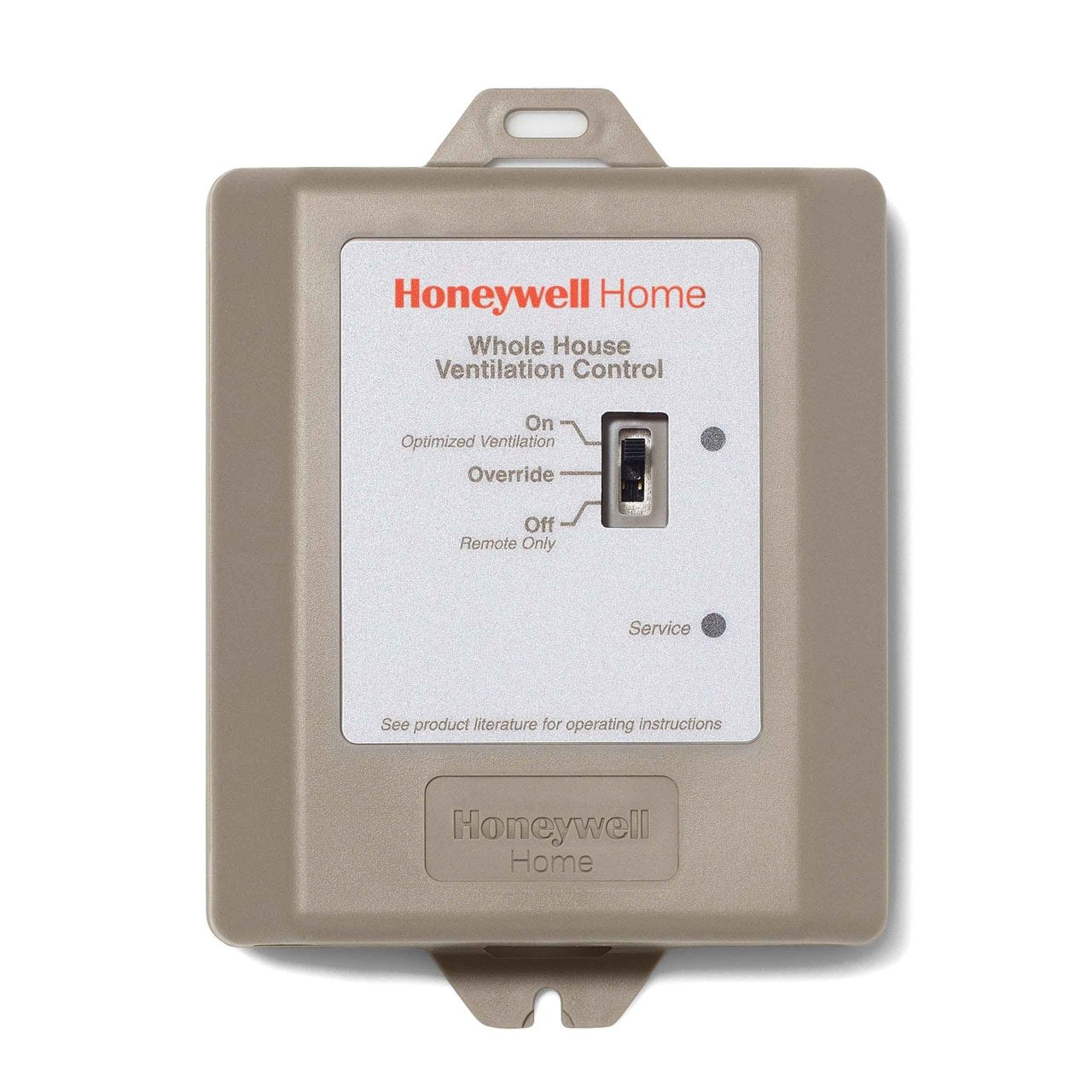

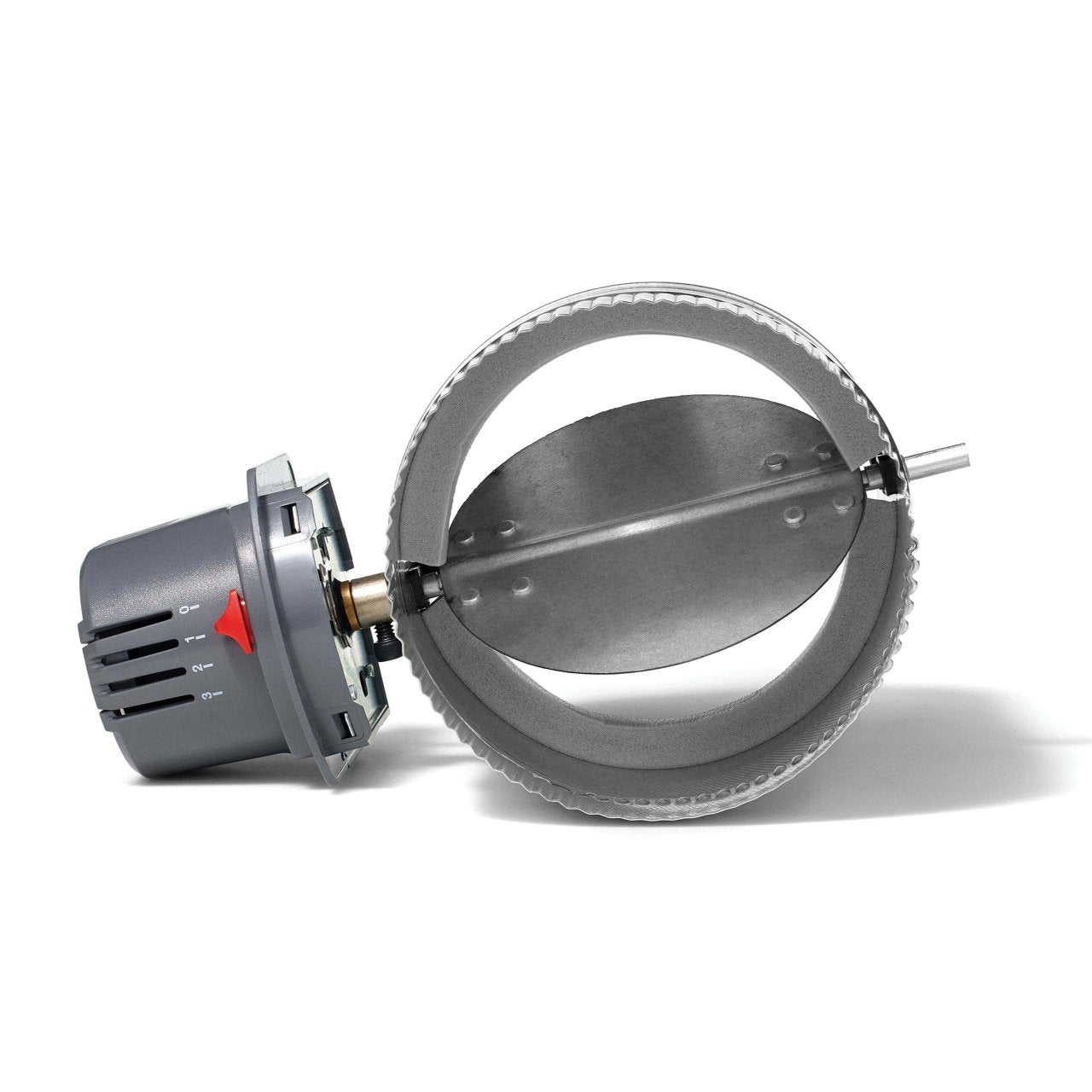

• Includes: W8150A1001 Ventilation controller , AT120B1028 24V Transformer, EARD6TZ TrueZONE damper/actuator
• Airflow (Min): 50 CFM
• Airflow (Max): 160 CFM
• Brand: Honeywell
• Catalog Number: X7818
• Model/Part Number: Y8150A1017/U
• Base Unit of Measure: Unit(S)
• Type: Fresh Air Ventilation System
• Amperage (AMPs): 0.6A
• CFM: 50 - 160 CFM
• Additional Information: 24VAC
• Voltage Rating: 24 VAC
• Manufacturer: Honeywell
• Manufacturer #: Y8150A1017/U
• Amperage Rating: 0.6 A
• Country of Origin: MX
• Manufacturer Name: Resideo Technologies
