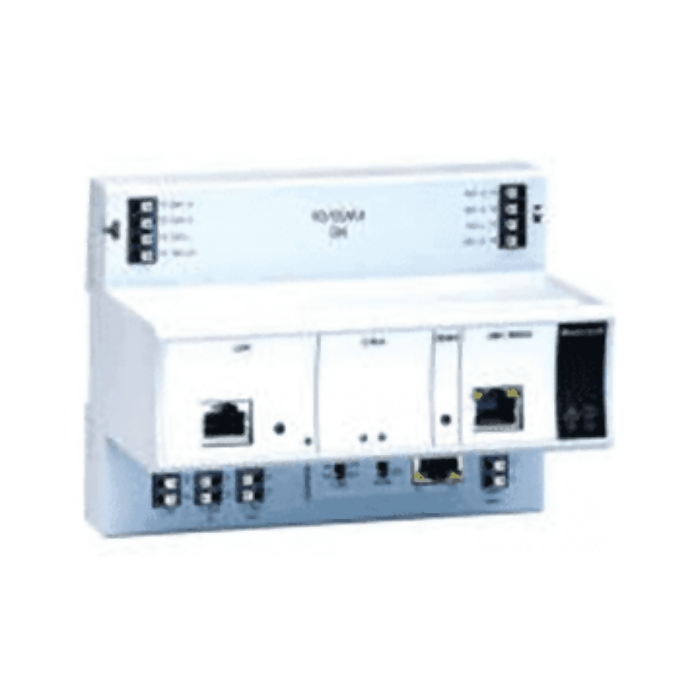

Honeywell XF824A Panel Bus IO Module, 6 IO

Product Description

The Honeywell XF824A Panel Bus IO Module is designed for use with the CIPer 50 Controller. It features six relay outputs and a pluggable module design. This enables flexible installation and maintenance.

• Communicates via the panel bus.
• Plug-and-play functionality allows for easy replacement.
• Fast wiring with push-in terminals or screw-type terminals.

Product Highlights

This module is suitable for various sensors and provides expansive wiring flexibility, making it ideal for building automation systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: XF824A

Technical Specifications

• Input Power: 24 VAC
• Operating Conditions: 0 C to 50 C
• Approvals: CE Approved, conforms to EN60730-1 and EN 60730-2-9
• Maximum Wiring Flexibility: Supports a wide range of sensors
• Features: Pluggable design to reduce damage risk, terminal sockets and electronic modules can be installed separately
• Sensor Compatibility: Supports NTC20K, NTC10K, PT1000-1/-2, Johnson A99 PTC, NI1000TK5000, PT3000, Balco500, voltage and current inputs
