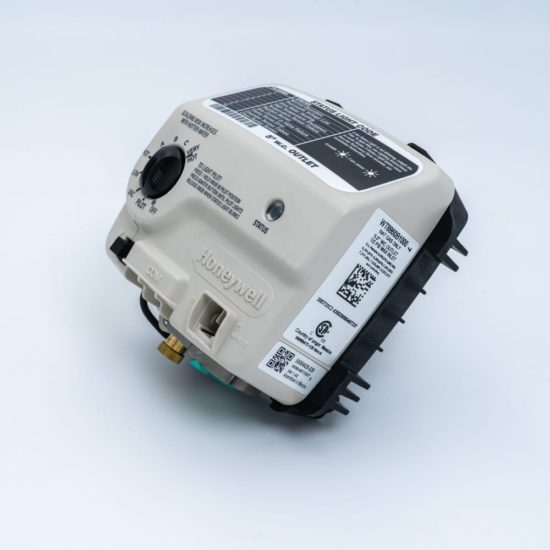

Honeywell WT8860B1000 Water Heater Gas Control Valve 2" Insulation

The WT8860B1000 is the Water Heater Control for trade use to replace WV8840 valves used in A.O. Smith Water Heaters. It has a 2" insulation tank and a 5" WC settingULN
It is designed for use in Standing Pilot applications using an immersion well for water temperature sensing. An included integrated NTC temperature sensor reads water temperature within the appliance up to 221 F (105 C).
The WT88xx Water Heater Control is designed for use in Standing Pilot applications using an immersion well for water temperature sensing. All models of WT88xx controls include an integrated NTC temperature sensor.
The WT88xx controls are powered from a thermopile heated by the standing pilot flame. CS88xx pilot assemblies are designed for use with this control.
The immersion well for sensing water temperature has matched NTC thermistor sensors. These sensors provide the fail-safe mechanism through which the WT88xx controls can provide both accurate water temperature control as well as water temperature limit (Temperature Cut-Out [TCO]) function.

Replaces:
� WV8860B1309
� WV8860B1310
� 100073010
� 318618-000
� 100093970
� 9007631005

Specifications:
� Weight: 2.1500 lbs
� Dimensions: 7.6250� 6.0000� 5.2500 in
� Fuel Type: Natural Gas
� Setpoint Temperature Range: Valve55�F to 155�F
� Pressure Regulator Setting: 5 in WC
� Body Pattern: N/A
� Temperature Range: N/A
� Spud Size: N/A
� Mounting Bracket Type: Upright Position
� Ambient Temperature Range: 32�F to 150� F ( 0�C to 60�C)
� Thermal Cut Off Switch Limit: 189� F (87�C)
� Inlet Size: 1/2 in NPT
� Outlet Size: 1/2 in NPT
