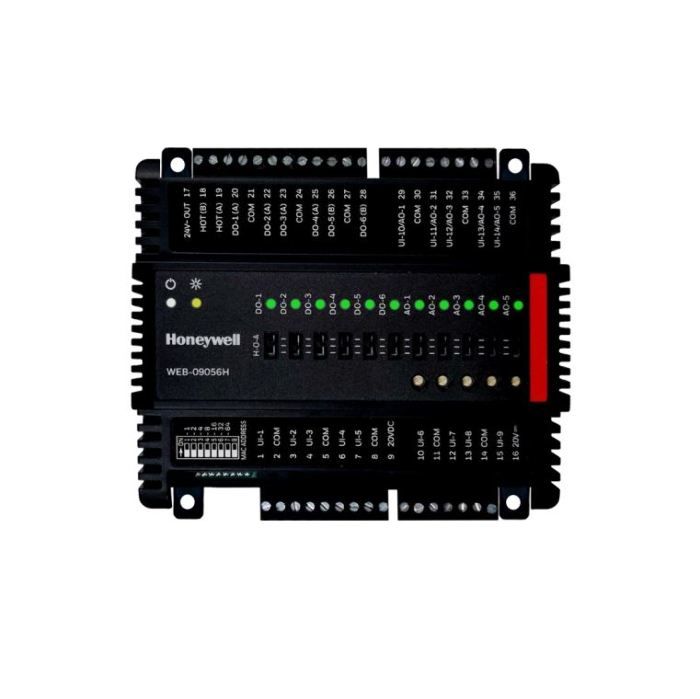

Honeywell WEB-O9056H CIPer30 Large Expansion IO Module 20 IO

Product Description

The Honeywell WEB-O9056H is a CIPer30 large expansion IO module that provides twenty input/output options. This module is designed to work with the CIPer Model 30 controller and features easy installations with plug-and-play functionality. It supports a wide variety of sensors, making it ideal for different applications.

• Connects directly to the controller or can be mounted remotely up to one hundred feet away.
• Features indication LEDs for all digital and analog outputs.
• Field configurable and programmable using the Niagara Framework.

Product Highlights

This module comes with removable terminal blocks that simplify installation and maintenance. It has a compact design suitable for small installation housings.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: WEB-O9056H

Technical Specifications

• Power Supply: 20-30 VAC
• Operating Conditions: -4 F to 131 F (0 C to 50 C)
• Approvals: UL/CUL listed under UL 60730-1 and CSA E60730-1
• Sensor Compatibility: Supports sensors like 20KNTC, PT1000, and other resistive sensors
• A/D Conversion Resolution: 16-bit
• Additional Points: 300 expansion IO capability
• LED Indicators: For all outputs
• Switches: HOA switches on digital outputs
