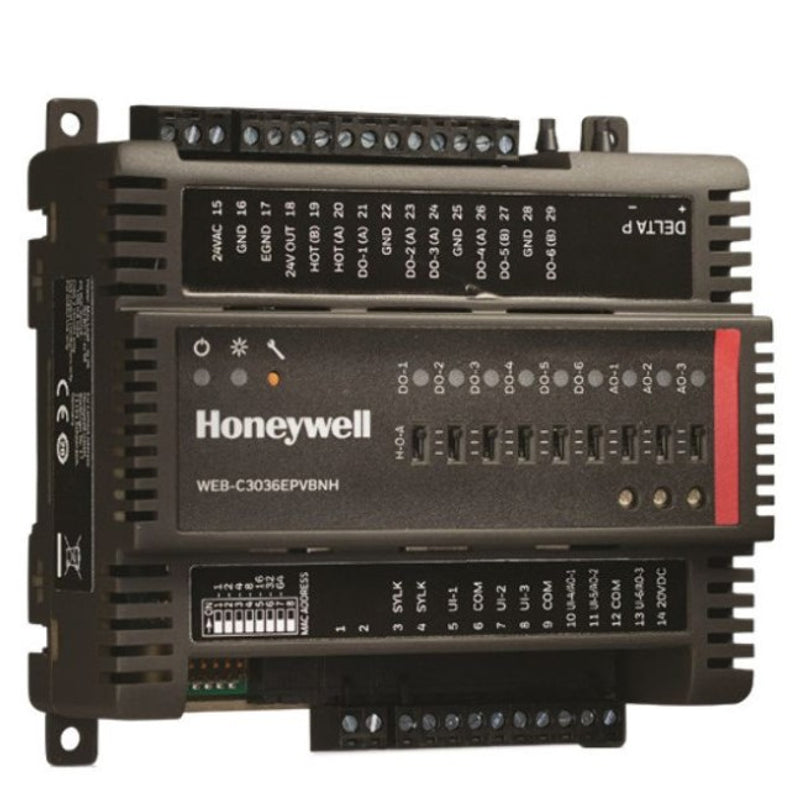

Honeywell WEB-C3036EPVBNH CIPer30 Controller, 12 IO

Product Description

The Honeywell WEB-C3036EPVBNH is a CIPer30 controller equipped with twelve input/output points. This programmable controller is designed for VAV applications and supports communication through BACnet IP and Niagara networks. It features four Ethernet ports with rapid spanning tree protocol for enhanced connectivity.

• Handles a maximum of three field devices (up to 150 points)
• Supports solid-state relay outputs
• Includes built-in alarms and scheduling

Product Highlights

This controller provides a robust HVAC application library for improved energy efficiency. It adapts continuously to building characteristics for optimized performance.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: WEB-C3036EPVBNH

Technical Specifications

• Input/Output Points: 12
• Type: Programmable
• Ports: RS-485, Ethernet
• Power Voltage: 20 to 30 VAC
• Power Consumption: 100 VA maximum for controller and all connected loads
• Operating Conditions: -4 F to 131 F (-20 C to 55 C), 5% to 95% non-condensing humidity
• Communication Network: BACnet IP
• Mounting: DIN rail mount
• Approvals: UL/CUL listed
