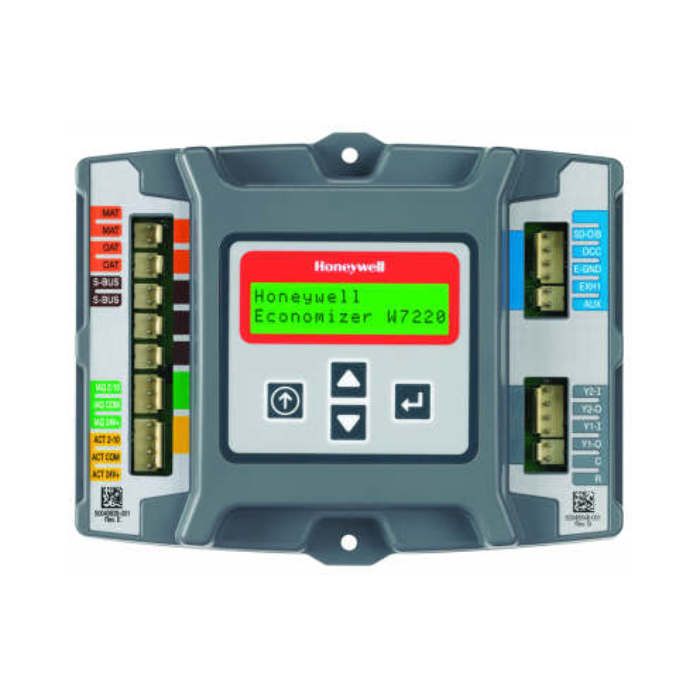

Honeywell W7220A1000/U jade economizer logic module 24 Vac 4.98 inches height 6.3 inches width 1.34 inches length

Product Description

The Honeywell W7220A1000/U JADE Economizer Logic Module provides configurable, stand-alone control for economizer systems. It supports referential or differential dry bulb and enthalpy strategies, enabling precise outdoor air management. This module integrates Demand Control Ventilation (DCV) and communication capabilities for Jade systems, designed for use with M7215A. It can be used as a standalone unit or connected to optional Sylk bus sensors.

• Features alarming and an LCD display for operational status.
• Supports Sylk Bus for sensor communication and power.
• Integrates Demand Control Ventilation (DCV) and is compatible with M7215A.

Product Highlights

Configurable economizer control with DCV and Sylk Bus compatibility for efficient HVAC operation.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: W7220A1000/U
• Country of Origin: United States

Technical Specifications

• MPN: W7220A1000/U
• Control Type: Configurable, Stand-alone
• Mounting: Duct Mount, Panel Mount, Surface Mount
• Application: Rooftop
• Input Voltage: 20 To 30 VAC
• Controller Family: Economizer
• Product Type: Economizer
• Display: LCD
• Set Point Range: -22 to 176 °F
• Control Outputs: Economizer Control
